Base Accessories
Base Cabinets

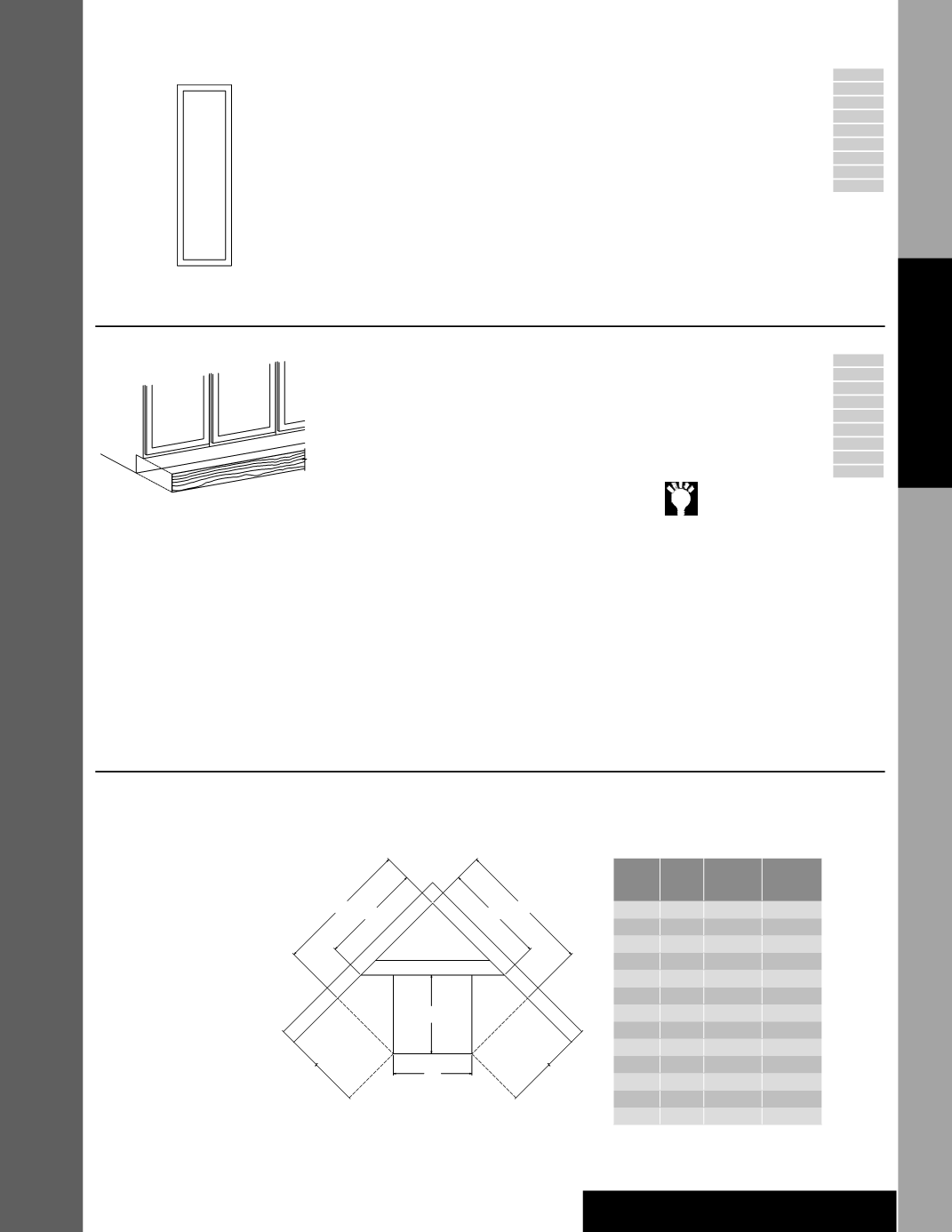

Overlay Panel For Base Blind Corner Cabinets
OPWBC30
• Available in full overlay door
styles only
• Field miter
• Overlay Panel has routed door
profile and is made from the
same material as doors and
drawer fronts
• Solid wood or Laminate with
door edge profile four sides
PE
APC
APFC
FPEB
MI
RD
WR
RTKP
VTK
9˝
Toe Kick
Black
=
BLTK8
• 1/8” thick hardboard, 4 1/2”
high
n
MTK8
• 1/8” thick hardboard, 4 1/2”
high, l
aminated with matching
Viraguard
Aluminum finish
MTK8 •A
• 1/16˝ thick flexible
laminate, 4 1/2˝ high
Stainless finish
MTK8 •S
• 1/16˝ thick flexible
laminate, 4 1/2˝ high
is
WMTK8
• 3/16” thick wood veneer,
4 1/2” high, to match
• Edges are unfinished
• Field installation only
•
Note:
Matching toe kick is
not
automatically supplied with
cabinets. It
must
be ordered as
a separate item
Apply Quarter Round
molding (QR8) at the
base of Matching Toe
Kicks or Wood Matching Toe
Kicks (MTK8 or WMTK8) for a
nice, finished look.
PE
APC
APFC
FPEB
MI
RD
WR
RTKP
VTK
96˝
=
Painted hardwood supplied for EverCore™
n
Not
available in Sturbridge; Hayward and Manchester
supplied plain sawn
i
Painted hardwood supplied for EverCore™ and Laminate
s
Painted or Stained hardwood supplied for Woodgrain
Laminate door styles
Diagonal Installation of Standard Base Cabinets
Cabinet
Width
A
Cabinet
Depth
B
Wa
ll
Dimensions
C
Wa
ll
Dimensions
D
12”
24”
22 ½ ”
32 ½ ”
15”
24”
24 ⅝ ”
34 ⅝ ”
18”
24”
26 ¾ ”
36 ¾ ”
21”
24”
28 ⅞ ”
38 ⅞ ”
24”
24”
31”
41”
27”
24”
33 ⅛ ”
43 ¼ ”
30”
24”
35 ¼ ”
45 ¼ ”
33”
24”
37 ⅜ ”
47 ⅜ ”
36”
24”
39 ½ ”
49 ½ ”
39”
24”
41 ⅝ ”
51 ⅝ ”
42”
24”
43 ¾ ”
53 ¾ ”
45”
24”
45 ⅞ ”
55 ⅞ ”
48”
24”
48”
58”
Optional Wall
D
D
C
C
B
A
Note:
Fillers are always recommended at both sides of cabinet junction
points to allow for wall variations and drawer clearances.
