287 / 601
E64
Base Accessories
Base Cabinets

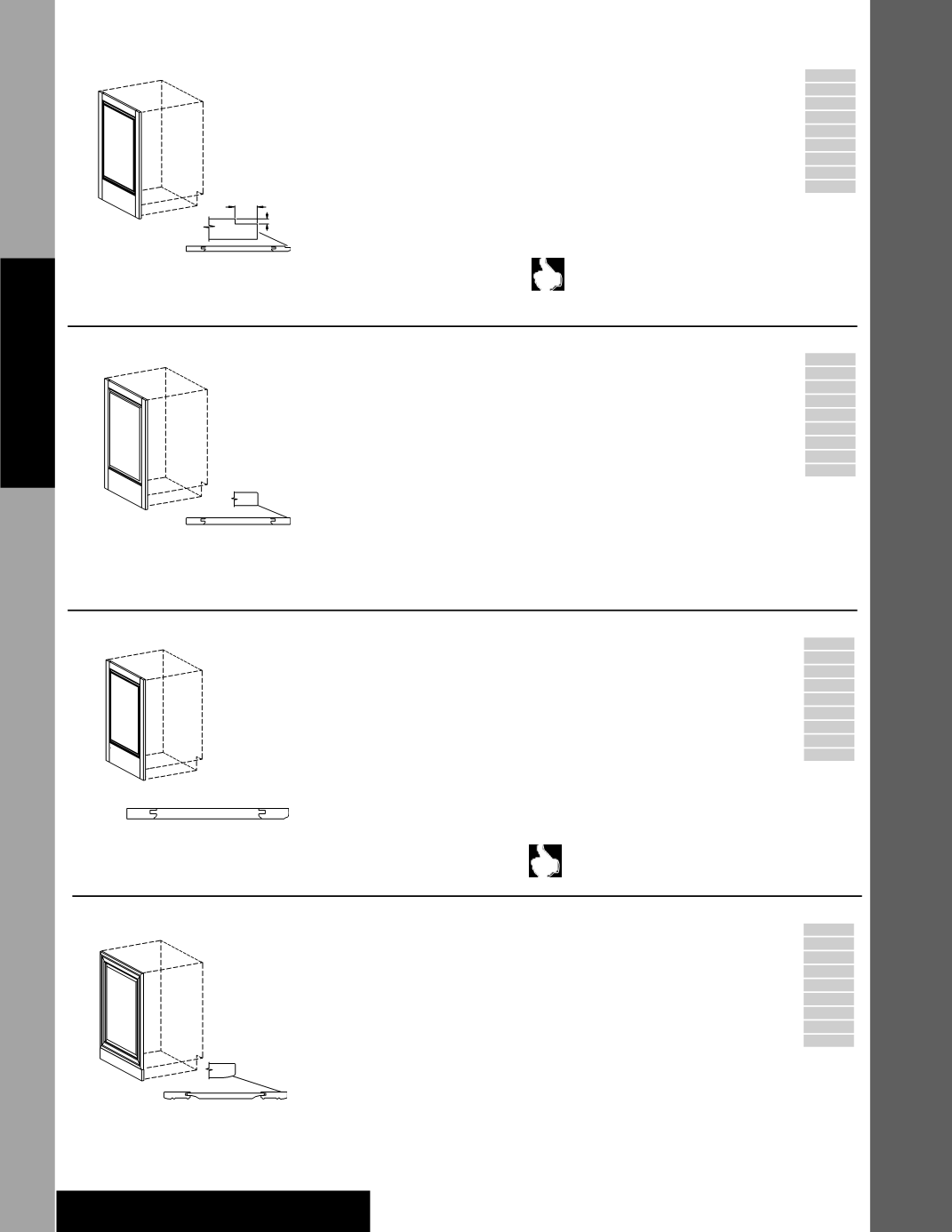

Matching Base End Panel
Specify R or L
MBEP R or L
Peninsula
n
PMBEP
• 3/4” thick panel with matching door edge profile on front edge
only
• Peninsula panel has routed door profile front and
back
• Laminate and slab door styles do
not
have grooves
and will
not
fit flush against 1/2˝ end panel. A 3/16˝
shim is recommended
• Inside of matching panel bottom rail will line up with
inside bottom rail of door
• Left shown
• Field installation only
•
Not
available in mitered or Coleburne door styles; use
End Panel–Mitered
•
Not
available in High-Gloss Laminate door styles
•
Not
available in Sturbridge Oak Square
I
Wide Bottom Rail—field notch for toe kick
When designing with Matching End Panels the reveal
will differ from the cabinet door height reveal.
Matching End Panels cover the entire side of the
cabinet. See drawing for exact measurements
PE
APC
APFC
FPEB
MI
RD
I
WR
RTKP
VTK
34
1
/
2
˝
23
7
/
8
˝
3
/
16
˝
Standard edge detail—fits flush against
1/2˝ end panel and behind face frame
¾˝
Matching Base End Panel–Square Edges
MBEP •S
• 3/4˝ thick panel with square edge front and back
• Inside of matching panel bottom rail will line up with
inside bottom rail of door
• Reversible, may be used on either right or left end
• Field installation only
• No frame recess dado
•
Not
available in Laminate, High-Gloss Laminate or
Woodgrain Laminate door styles
•
Not
available in mitered door styles; use End Panel–Mitered
•
Not
available in Sturbridge Oak Square
I
Wide Bottom Rail—field notch for toe kick
PE
APC
APFC
FPEB
MI
RD
I
WR
RTKP
VTK
34
1
/
2
˝
23
7
/
8
˝
Will not fit flush against 1/2˝ end panel,
a 3/16˝ shim is recommended
Furniture Matching Base End Panel
Specify R or L
FMBEP R or L
Peninsula
FPMBEP
• 3/4” thick panel with matching door edge profile on
front edge only
• Peninsula panel has routed door profile front and
back
• Inside of matching panel bottom rail will line up with
inside bottom rail of door
• For use with Furniture Plywood Ends (FPEB)—flush
ends
• Left shown
• Field installation only
•
Not
available in mitered door styles; use End Panel–
Mitered
•
Not
available in High-Gloss Laminate or Woodgrain Laminate
door styles
•
Not
available in Sturbridge Oak Square
I
Wide Bottom Rail—field notch for toe kick
When designing with Matching End Panels the reveal
will differ from the cabinet door height reveal.
Matching End Panels cover the entire side of the
cabinet. See drawing for exact measurements
PE
APC
APFC
FPEB
MI
RD
I
WR
RTKP
VTK
34
1
/
2
˝
23
7
/
8
˝
Standard edge detail—fits flush against
1/2˝ end panel
Matching Base End Panel–Mitered
M•MBEP
• 3/4˝ thick panel with matching door edge profile on
four sides
• Inside of matching panel bottom rail will line up with
inside bottom rail of door
• Available in mitered and Coleburne door styles only
• Reversible, may be used on either right or left end
• Field installation only
• Toe kick shipped unattached
I
Wide Bottom Rail—field notch for toe kick
PE
APC
APFC
FPEB
MI
RD
I
WR
RTKP
VTK
34
1
/
2
˝
23
7
/
8
˝
Will not fit flush against 1/2˝ end panel,
a 3/16˝ shim is recommended
n
Not
available in Woodgrain
Laminate door styles
