233 / 601
E10
Base Cabinets
Base Cabinets

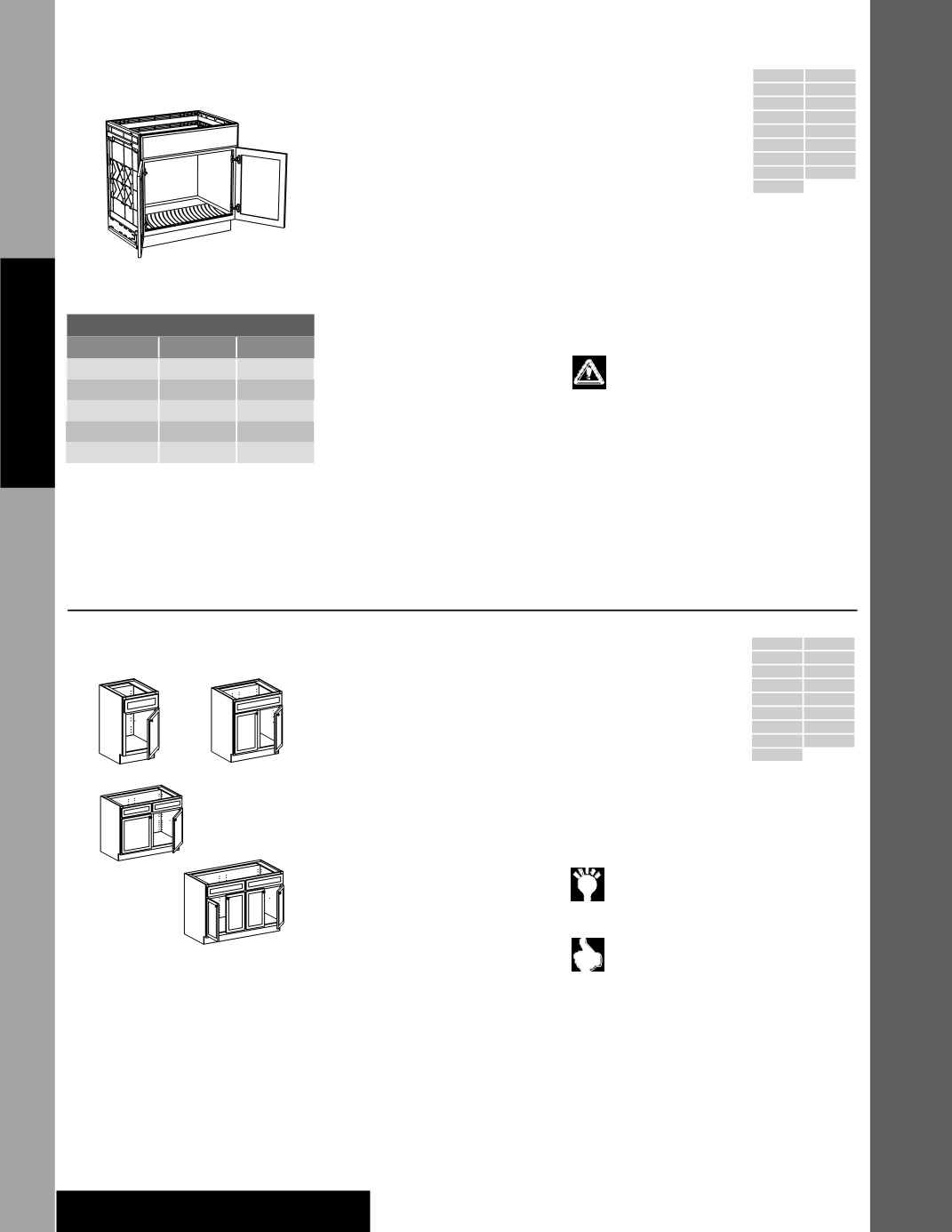

CoreGuard® Sink Base
SB24 BUTT•CG
SB27 (Butt)•CG
SB30 BUTT•CG
SB33 BUTT•CG
SB36 BUTT•CG
• Easy to clean and durable sink
base helps protect the cabinetry
from everyday leaks and spills
• Back, end and bottom panels are
made of an engineered polymer
material
• Bottom panel slants 1º toward
front of cabinet and has raised ribs
to slightly elevate stored items
• Decorative end panel required for end of peninsula
or island.
Not
Included, order separately
• No shelf
• One full-width false drawer front above doors
• Optional Door Storage Unit (SBDSU) is available
• Optional Utensil Trays (UT and SUT) are available
• Will
not
accommodate Roll-out Trays (ROT)
• Includes a Touch-Up Kit (TUK)
Caution
: For an island/peninsula
installation, the CoreGuard® Sink cabinet
must
have a minimum of one (1) 15”
cabinet or larger installed adjacent to it in order for
the island/peninsula to have adequate structural
stability. Accessories
cannot
be installed on end
panels, back or floor of the cabinet
PE
APC
APFC
FPEB
MI
DE
OE
RD
IF
l
TWR
WR
l
XS
XSG
GD
RTK
RTKP
VTK
Opening Sizes
Cabinet
Top Width Top Depth
SB30BUTT.CG
27 ⁄
”
22 ⅜”
SB33BUTT.CG
30 ⁄
”
22 ⅜”
SB36BUTT.CG
33 ⁄
”
22 ⅜”
SB24BUTT.CG
21 ⁄
”
24 ⁄
”
22 ⅜”
22 ⅜”
SB27.CG
34
1
/
2
˝
24 ˝
Grey color coding indicates new product, size or code.
Wood Sink Base
One Drawer Front
SB18 R or L•W
SB21 R or L•W
SB24 R or L•W
SB24 BUTT•W
SB27 (Butt)•W
SB30 •W
SB30 BUTT•W
SB33 •W
SB33 BUTT•W
SB36 •W
SB36 BUTT•W
u
SB39 •W
Two Drawer Fronts
u
SB42 •W
u
SB45 •W
u
SB48 •W
u
SB48 BUTT•W
• Specify R or L for single door
hinging
• No shelf
• False drawer front(s)
• Optional Door Storage Unit
(SBDSU) is available
• Optional Utensil Trays (UT and
SUT) are available
• Includes a Touch-Up Kit (TUK)
• Use Full-Height Kitchen (FHK) option to achieve a
full-height door look
I
Operational End (OE) is
not
available with Reduced
Depth (RD) options
When you need an inverted frame for a
sink base cabinet, consider using a regular
base with a drawer instead of a sink base if
plumbing allows. This way you get a working drawer
at the bottom of your cabinet.
Remember, a cabinet designated BUTT or
(Butt) has no center stile. When you see
the word BUTT in all capitals, it
must
be
included as part of your ordering nomenclature, a
(Butt) in parentheses is for your information and
isn’t required on an order form
l
PE
l
APC
l
APFC
l
FPEB
l
MI
l
DE
I
OE
l
RD
IF
l
TWR
l
WR
l
XS
l
XSG
l
GD
l
RTK
l
RTKP
l
VTK
SB18-24•W SB24BUTT-39•W
SB42-48•W
SB48BUTT•W
24˝
34 ½˝
24˝
34 ½˝
24˝
34 ½˝
24
˝
34 ½˝
u
Deluxe Dovetailed full-width Trays (DXFWT)
not
available
