Wall Cabinets
D99
Wall Accessories

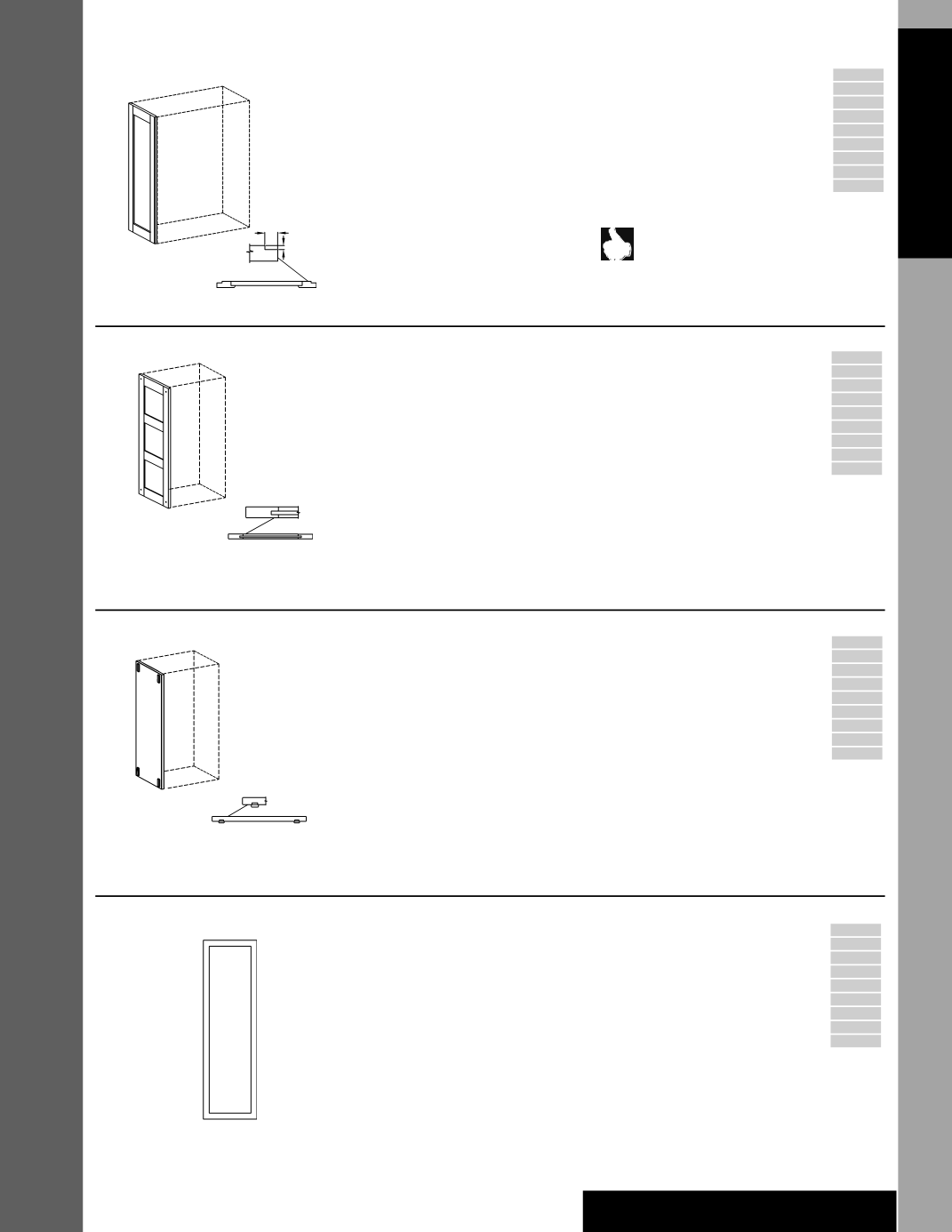

Universal Wall End Panel
UWEP12
UWEP15
UWEP18
UWEP24
UWEP30
UWEP33
UWEP36
UWEP39
UWEP42
UWEP48
UWEP54
• 3/4” thick frame with square recessed panel
• Reversible, may be used on either right or left
end
• Field installation only
•
Not
available in Laminate or High-Gloss
Laminate door styles
•
Not
available in Sturbridge. Beale, Hayward
and Manchester supplied plain sawn
When designing with Matching End
Panels the reveal will differ from the
cabinet door height reveal. Matching
End Panels cover the entire side of the
cabinet. See drawing for exact measurements
PE
APC
APFC
FPEB
MI
RD
ID
XS
GD
¾˝
12˝
15˝
18˝
23 ½˝
30˝
33˝
36˝
39˝
42˝
48˝
54˝
11 / ˝
/ ˝
Gray color coding indicates new product, size or code.
Recessed Matching Wall End Panel
One panel
RMWEP12 •M
RMWEP15 •M
Two panels
RMWEP18 •M
Three panels
RMWEP24 •M
RMWEP30 •M
RMWEP33 •M
RMWEP36 •M
RMWEP39 •M
RMWEP42 •M
Four panels
RMWEP48 •M
RMWEP54 •M
Peninsula
One panel
PRMWEP12 •M
PRMWEP15 •M
Two panels
PRMWEP18 •M
Three panels
PRMWEP24 •M
PRMWEP30 •M
PRMWEP33 •M
PRMWEP36 •M
PRMWEP39 •M
PRMWEP42 •M
• 3/4” thick
• Inside of matching panel bottom rail will line
up with inside bottom rail of door
• Reversible, may be used on either right or left
end
• Quartersawn solid wood
• Recessed panel grain runs horizontally
• Peninsula panel has routed door profile front
and back
• Field installation only
• Available in Sturbridge Oak door style only
PE
APC
APFC
FPEB
MI
RD
ID
XS
GD
will not fit flush against 1/2˝ end panel
a 3/16˝ shim is recommended
12˝
15˝
18˝
23 ½˝
30˝
33˝
36˝
39˝
42˝
48˝
54˝
11 / ˝
Gray color coding indicates new product, size or code.
Slab Matching Wall End Panel
SMWEP12 •M
SMWEP15 •M
SMWEP18 •M
SMWEP24 •M
SMWEP30 •M
SMWEP33 •M
SMWEP36 •M
SMWEP39 •M
SMWEP42 •M
SMWEP48 •M
SMWEP54 •M
Peninsula
PSMWEP12 •M
PSMWEP15 •M
PSMWEP18 •M
PSMWEP24 •M
PSMWEP30 •M
PSMWEP33 •M
PSMWEP36 •M
PSMWEP39 •M
PSMWEP42 •M
• 3/4” thick
• Inside of matching panel bottom rail will line
up with inside bottom rail of door
• Quartersawn solid wood
• Reversible, may be used on either right or left
end
• Field installation only
• Available in Sturbridge Oak door style only
PE
APC
APFC
FPEB
MI
RD
ID
XS
GD
will not fit flush against 1/2˝ end panel
a 3/16˝ shim is recommended
12˝
15˝
18˝
23 ½˝
30˝
33˝
36˝
39˝
42˝
48˝
54˝
11 / ˝
Gray color coding indicates new product, size or code.
Overlay Panel For Wall Blind Corner Cabinets
OPWBC24
OPWBC30
OPWBC33
OPWBC36
OPWBC39
OPWBC42
OPWBC48
OPWBC54
• Available in full overlay door styles only
• Solid wood or Laminate with door edge
profile four sides
• Quartersawn Oak door styles are 3/4˝
quartersawn wood with matching door
profile on all sides. Quartersawn Cherry and
Maple door styles are quartersawn wood
veneer
• Field miter
PE
APC
APFC
FPEB
MI
RD
ID
XS
GD
9˝
23 / ˝
29 / ˝
32 / ˝
35 / ˝
38 / ˝
41 / ˝
47 / ˝
53 / ˝
Gray color coding indicates new product, size or code.
