Wall Hood Component Package (A, B & C)–Recirculating
Package “A”
RHCP30 R •SN
RHCP36 R •SN
Package “B”
CRHCP30 R •SN
CRHCP36 R •SN
Package “C”
PRHCP30 R •SN
PRHCP36 R •SN
• This unit includes a satin nickel colored metal
liner, and an easy to clean aluminum mesh
filter. This is powered by a 390 CFM squirrel
cage fan and has push button controls.
This unit comes with two feet of 7” round
ductwork, a 90° elbow, charcoal filter and
grille with white vent
• Requires a 50 watt, 120 volt halogen lamp
(MR16 GU10 base) which are available at
hardware or lighting retailers
8
¾˝
10 / ˝
23 ½˝

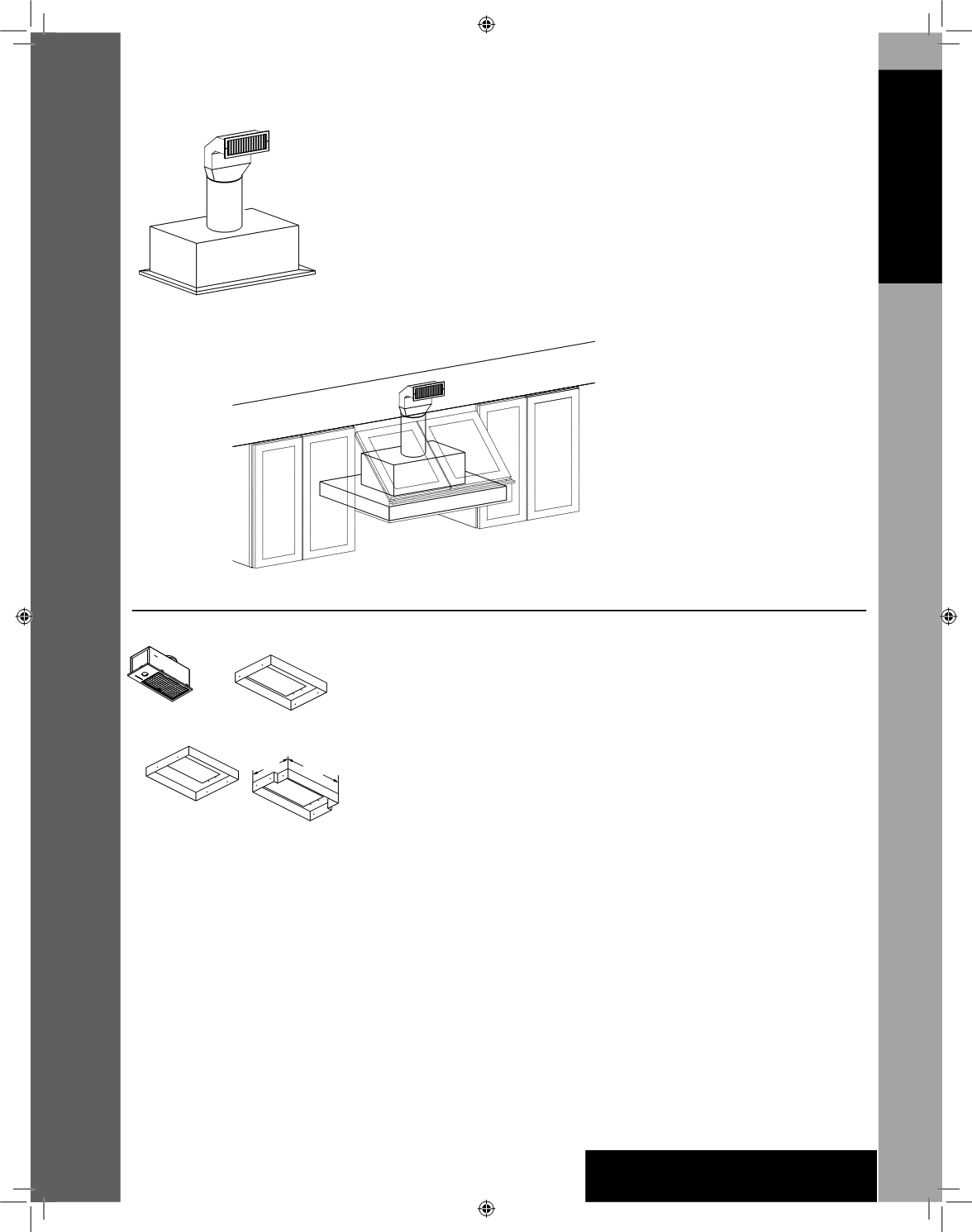

Example of installation when soffit is present
Soffit
Wall Hood Component Package (D, E & F)–Vented
Package “D”
RHCP30 V •SN
Satin Nickel
RHCP36 V •SN
Satin Nickel
Package “E”
CRHCP30 V •SN
Satin Nickel
CRHCP36 V •SN
Satin Nickel
Package “F”
PRHCP30 V •SN
Satin Nickel
PRHCP36 V •SN
Satin Nickel
• This unit includes metal liner, and an easy to
clean aluminum mesh filter. This is powered
by a 390 CFM squirrel cage fan and has push
button controls. 7” round duct vents on top
• Requires a 50 watt, 120 volt halogen lamp
(MR16 GU10 base) which are available at
hardware or lighting retailers
8
/
˝
23 / ˝
10 / ˝
CRHCP
26 ¼˝
32 ¼˝
4˝
16 ½˝
29 / ˝
35 / ˝
RHCP
4˝
18 / ˝
28 / ˝
34 / ˝
PRHCP
4˝
24 / ˝
28 / ˝
34 / ˝
