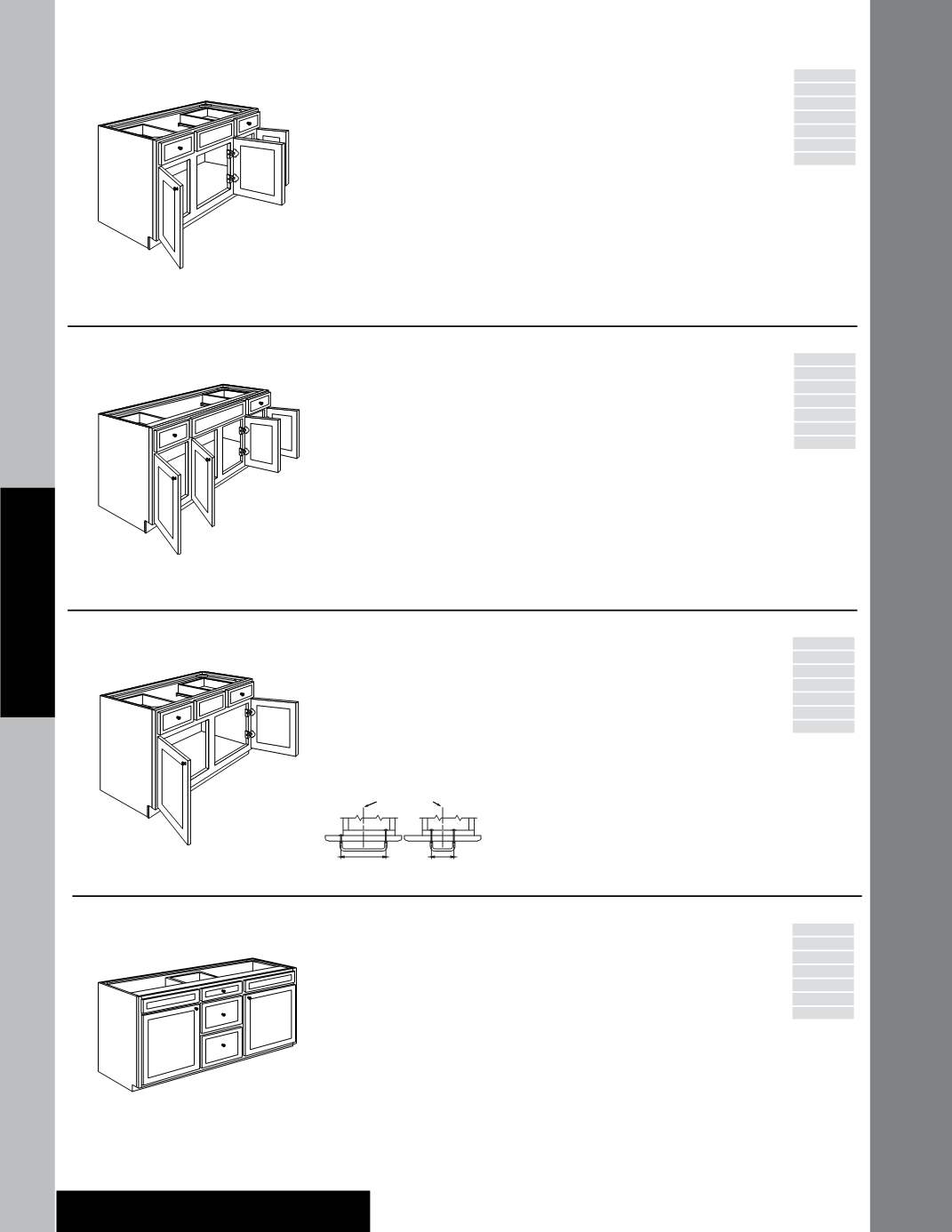

Vanity Sink Base Three Door
31 1/2” High, 18” Deep
s
VSB421831 •2
s
VSB481831 •2
s
VSB541831 •2
34 1/2” High, 18” Deep
s
VSB421834 •2
s
VSB481834 •2
s
VSB541834 •2
31 1/2” High, 21” Deep
VSB422131 •2
VSB482131 •2
VSB542131 •2
34 1/2” High, 21” Deep
VSB422134 •2
VSB482134 •2
VSB542134 •2
• False front only between drawers
• Two standard drawers
• Center door is hinged right
• Space between drawers for sink installation
is 21”
• 54” wide cabinets have a 3 3/16” wide full-width
support cross rail across top front of cabinet
• Back panel is pre-drilled for Roll-Out Trays (ROT)
behind center door on VSB54
•
Note
: When depth is reduced to 12” or 15”, drawers
become a false front
l
PE
l
APC
RD9
l
RD12
l
RD15
I
RD18
l
CFO
18˝, 21˝
31 ½˝
34 ½˝
12˝
15˝
18˝
12˝
15˝
18˝
18˝
18˝
18˝
s
Reduce to 18” depth
not
available
Vanity Sink Base Four Door
• False front only between drawers
• Two standard height top drawers
• Door left of center hinged left, door right
of center hinged right
• Actual cabinet width is 59 1/2”, frame stiles
are extended and may be trimmed a maximum of 1/2”
each to a cabinet width of 58 1/2”
• Space between drawers for sink installation is 31 3/4”
• 3 3/16” wide full-width support crossrail across top
front of cabinet
•
Note
: When depth is reduced to 12” or 15”, drawers
become a false front
l
PE
l
APC
RD9
l
RD12
l
RD15
I
RD18
l
CFO
18˝, 21˝
31 ½˝
34 ½˝
s
Reduce to 18” depth
not
available
Vanity Sink Base Two Drawer
18” Deep
s
VSB361831 •2
s
VSB361834 •2
21” Deep
VSB362131 •2
VSB362134 •2
• False front only between drawers
• Space between drawers for sink installation
is 18”
•
Note
: When depth is reduced to 12” or 15”,
drawers become a false front
•
Note
: Two standard height drawers.
Drawer fronts are offset from drawer core.
This limits the sizes of pulls that can be positioned in
the middle of the drawer front to pulls with 6” centers
or 3” and narrower centers. See detail.
l
PE
l
APC
RD9
l
RD12
l
RD15
I
RD18
l
CFO
18˝, 21˝
31 ½˝
34 ½˝
s
Reduce to 18” depth
not
available
Vanity Sink Base Three Drawer
18” Deep
s
VSB541831 •3
s
VSB601831 •3
21” Deep
VSB542131 •3
VSB602131 •3
• False drawer fronts above each door
• One standard drawer
• Two deep drawers
• 3 3/16” wide full-width support crossrail
across top front of cabinet
• Opening on each end for sink installation
is 18 7/8” for 54” cabinet and 21 1/4” for
60” cabinet
• Actual cabinet width for VSB60 is 59 1/2”, frame stiles are
extended and may be trimmed a maximum of 1/2” each to
a cabinet width of 58 1/2”
• Larus standard height drawer front has a flat recessed
center panel, while deep drawer fronts have a raised center
panel
• Optional Accessory Roll-Out Trays (ROT) available for 54”
wide cabinets only
• Back panel is
not
pre-drilled
•
Note
: When depth is reduced to 12” or 15”, drawers
become a false front
l
PE
l
APC
RD9
l
RD12
l
RD15
I
RD18
l
CFO
31 ½˝
21˝
20¾˝
12˝
18˝
21˝
20¾˝
18˝, 21˝
s
Reduce to 18” depth
not
available
18” Deep
s
VSB601831 •2
s
VSB601834 •2
21” Deep
VSB602131 •2
VSB602134 •2
Right hand drawer shown
3" centers or less
CL of drawer front
6" centers
