Tall Cabinets
F3
Tall Appliance Cabinets
Tall Appliance
Cabinets
Construction Options and
Modifications
I
Available with exceptions
l
Available with an upcharge
v
Included as standard
(Blank)
Not
Available
Note
: Standard tall cabinet box depth is 12” or 24”
unless stated otherwise. Add door thickness with
bumpers for total depth.
Material dimensions may vary slightly based on
lumber industry standards.
Specifications subject to change without notice.
PE Plywood Ends
APC All Plywood Construction
CFO Cabinet Front Only
OC 33 24 90
code
width
depth
height

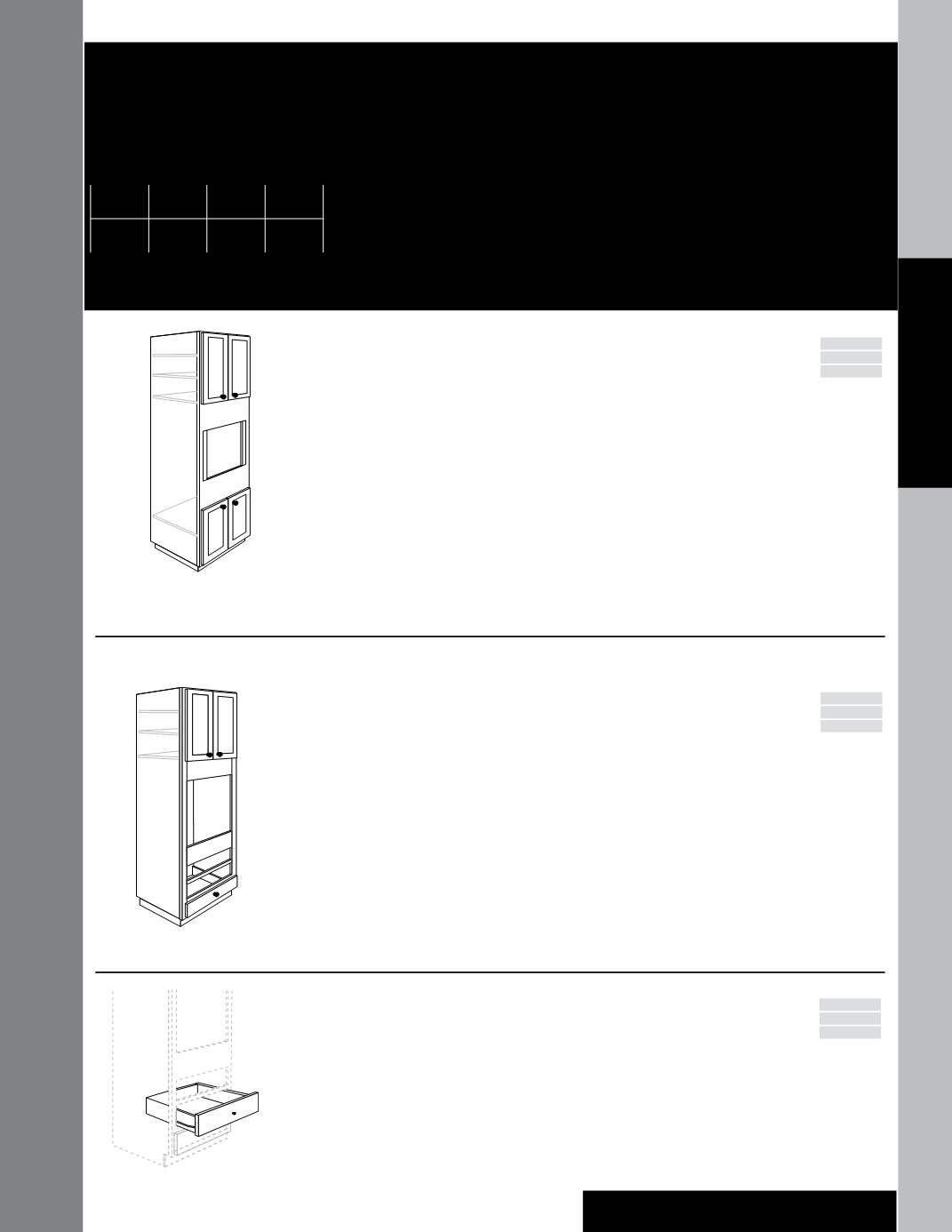

Oven Cabinet – Single w/3” Stiles
• Fixed shelf between top and middle section.
Adjustable shelves in top section: 84” high–no shelves;
90” high and 93” high–1 shelf; 96” high–2 shelves
• One adjustable shelf in bottom section
• Cabinet doors are: 5 1/2” shorter on top than the bottom for 84” high
cabinets, are equal height on 90” high cabinets, 3 1/2” taller on top
than the bottom for 93” high cabinets and are 6 1/2” taller on top
than the bottom for 96” high cabinets
• Center section accommodates single ovens
• 93” and 96” tall cabinets include toe kick platform, shipped
unattached
• 3” wide, trimmable stiles provide opening width adjustment in
Chiffon and Cotton. All other finishes have 1 1/2” wide removable,
trimmable vertical stiles for easy adjustment
• Toe Kick cover required on exposed sides of toe kick platform
• Includes adjustable 1” thick engineered wood oven platform with
heavy-duty mounting brackets and screws that install into pre-drilled
end panel holes. See Oven Cabinet Shelf Platform (OCSP)
• See Cabinet Specifications and Options for oven cutout dimensions
l
PE
l
APC
l
CFO
84˝
90˝
93˝
96˝
24˝
Oven Cabinet – Universal
• Fixed shelf between top and middle section.
Adjustable shelves in top section: 84” high–no shelves;
90” high and 93” high–1 shelf; 96” high–2 shelves
• Three full-width drawer openings at bottom
• Includes one full-width drawer. Order additional drawer(s) as needed.
See Oven Drawer Kit (ODK)
• Face-mounted door hinges provide matching frame reveals
• Center section accommodates single and double ovens by trimming
or removing horizontal cross rails
• Face frame rails are attached to stiles with screws on the back side for
easy removal
• 93” and 96” tall cabinets include toe kick platform, shipped
unattached
• Toe Kick cover required on exposed sides of toe kick platform
• Includes adjustable 1” thick engineered wood oven platform with
heavy-duty mounting brackets and screws that install into pre-drilled
end panel holes. See Oven Cabinet Shelf Platform (OCSP)
• See Cabinet Specifications and Options for oven cutout dimensions
l
PE
l
APC
l
CFO
84˝
90˝
93˝
96˝
24˝
Oven Drawer Kit
ODK27
ODK30
ODK33
• Available in all door styles
• Kit includes; 1 drawer front, 1 drawer core, slides and
all mounting hardware
PE
APC
CFO
84” High
OC272484 (Butt)S
OC302484 BUTTS
OC332484 BUTTS
90” High
OC272490 (Butt)S
OC302490 BUTTS
OC332490 BUTTS
93” High
OC272493 (Butt)S
OC302493 BUTTS
OC332493 BUTTS
96” High
OC272496 (Butt)S
OC302496 BUTTS
OC332496 BUTTS
84” High
OC272484 (Butt)U
OC302484 BUTTU
OC332484 BUTTU
90” High
OC272490 (Butt)U
OC302490 BUTTU
OC332490 BUTTU
93” High
OC272493 (Butt)U
OC302493 BUTTU
OC332493 BUTTU
96” High
OC272496 (Butt)U
OC302496 BUTTU
OC332496 BUTTU
