Detailed Description

Provides an interface for supplying and reclaiming nodes to and from CYIStreamer.

The responsibility of the adapter is to create and populate views that correspond to logical indices in a data model. Used in conjunction with CYIStreamer subclasses like CYIListView, adapters allow the representation of arbitrary data in a view. The association between adapters and streamers is a one-to-one association, in which the streamer retains ownership of the adapter.

Several CYINodeAdapter subclasses can be used as more specialized starting points for concrete implementations:

CYIDelegatingNodeAdapter delegates the responsibilities of CYINodeAdapter to a CYIDelegatingNodeAdapter::Delegate implementation. This allows the use of any class, such as a CYIAbstractScreenViewController subclass, as an adapter via implementation of that interface.
CYIViewAdapter is an adapter specialization which reduces the responsibility of the adapter to the supply of view templates and population of the constructed views.
CYIDelegatingViewAdapter delegates the responsibilities of CYIViewAdapter to a CYIDelegatingViewAdapter::Delegate implementation.

#include <streamer/YiNodeAdapter.h>

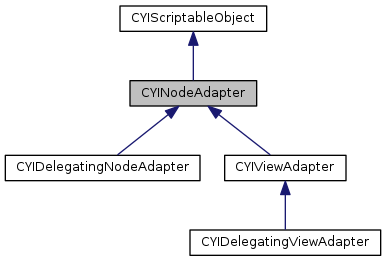

Inheritance diagram for CYINodeAdapter:

[legend]

Public Member Functions
	CYINodeAdapter ()

virtual	~CYINodeAdapter ()

virtual uint32_t	GetItemsCount () const =0

virtual glm::vec3	GetInitialNodeSize (uint32_t uIndex) const =0

virtual void	ConfigureProperties (uint32_t uIndex, CYISceneNode *pNode) const

IYIPropertiesSource *	GetProperties (const CYIString &viewTemplateName) const

void	SetProperties (const std::map< CYIString, IYIPropertiesSource * > &properties)

virtual std::unique_ptr< CYISceneNode >	BuildNode (uint32_t uIndex, CYISceneManager *pSceneManager)=0

virtual void	ReleaseNode (uint32_t uIndex, std::unique_ptr< CYISceneNode > pNode)=0

Public Member Functions inherited from CYIScriptableObject
	CYIScriptableObject ()

	CYIScriptableObject (const CYIScriptableObject &other)

CYIScriptableObject &	operator= (const CYIScriptableObject &other)

virtual	~CYIScriptableObject ()

CYIBindingImplementation *	GetBindingImplementation () const

void	SetBindingImplementation (CYIBindingImplementation *pBindingImplementation)

virtual const CYIRuntimeTypeInfo *	GetRuntimeTypeInfoForScriptObject () const

Public Attributes
CYISignal< uint32_t >	ItemAddedAtIndex

CYISignal< uint32_t >	ItemRemovedAtIndex

CYISignal< uint32_t, uint32_t >	ItemMoved

Constructor & Destructor Documentation

CYINodeAdapter::CYINodeAdapter ( )

virtual CYINodeAdapter::~CYINodeAdapter ( )

virtual

Member Function Documentation

virtual std::unique_ptr<CYISceneNode> CYINodeAdapter::BuildNode	(	uint32_t	uIndex,
		CYISceneManager *	pSceneManager
	)

pure virtual

Override to provide the node representing the visual subtree at 0-based uIndex. This may be a newly constructed CYISceneNode or one that is recycled, so long as it is fully initialized. The same CYISceneNode may not be re-used until CYINodeAdapter::ReleaseNode is called at which point the implementation is free to deallocate or recycle the node.

See also: ReleaseNode

Implemented in CYIViewAdapter, and CYIDelegatingNodeAdapter.

virtual void CYINodeAdapter::ConfigureProperties	(	uint32_t	uIndex,
		CYISceneNode *	pNode
	)		const

virtual

Override to populate the properties for pNode at 0-based index uIndex. The default implementation configures the size of pPlaceholder to the initial node size.

Note: pNode is not the node built at index uIndex, but any properties set on pNode will be copied to the node built for index uIndex.

Subclasses should call CYINodeAdapter::ConfigureProperties.

See also: GetInitialNodeSize; CYISceneNode::SetProperty

Reimplemented in CYIViewAdapter.

virtual glm::vec3 CYINodeAdapter::GetInitialNodeSize ( uint32_t uIndex ) const

pure virtual

Override to return the initial node size for 0-based adapter index uIndex. This is only used when items are initially added and does not need to reflect changes in size.

Implemented in CYIDelegatingNodeAdapter, and CYIViewAdapter.

virtual uint32_t CYINodeAdapter::GetItemsCount ( ) const

pure virtual

Returns the number of items managed by this adapter. This may be queried throughout the lifetime of the adapter and must report the correct value as items are added and removed. The number of items will be used to produce the 0-based consecutive indices. Indices may be invalidated when the number of items have changed and may no longer correspond to the same visual representations.

See also: CYINodeAdapter::ItemAddedAtIndex; CYINodeAdapter::ItemRemovedAtIndex

Implemented in CYIDelegatingViewAdapter, CYIDelegatingNodeAdapter, and CYIViewAdapter.

IYIPropertiesSource* CYINodeAdapter::GetProperties ( const CYIString & viewTemplateName ) const

Return a IYIPropertiesSource for the CYIViewTemplate named viewTemplateName or null if there is no IYIPropertiesSource for the CYIViewTemplate named viewTemplateName.

Note: The caller does not take ownership of the returned IYIPropertiesSource

See also: SetProperties; CYIViewTemplate::GetName

virtual void CYINodeAdapter::ReleaseNode	(	uint32_t	uIndex,
		std::unique_ptr< CYISceneNode >	pNode
	)

pure virtual

Override to reclaim ownership of pNode, which represents the visual subtree at uIndex. pNode may be recycled or destroyed.

Note: By the time ReleaseNode has been called the node has already been detached from the scene tree.

See also: BuildNode

Implemented in CYIViewAdapter, and CYIDelegatingNodeAdapter.

void CYINodeAdapter::SetProperties ( const std::map< CYIString, IYIPropertiesSource * > & properties )

Set the properties to be used to configure nodes created by this adapter. The map contains a mapping from CYIViewTemplate names to properties for those templates. The properties can be used to configure nodes created with this adapter.

Note: Does not take ownership of the IYIPropertiesSource in the properties map.

See also: CYIListView::GetItemProperties; CYIViewTemplate::GetName; CYINodeAdapter::ConfigureProperties

Member Data Documentation

CYISignal<uint32_t > CYINodeAdapter::ItemAddedAtIndex

This signal must be called each time a new item is added to the adapter. The parameter of the signal is the 0-based index at which the new item was added.

Note: The index provided should be incremented for each item. Inserting multiple items at the same index will result in the data being streamed in out of order. For example, if the adapter has 5 items and 3 items need to be inserted in the middle this signal should be emitted 3 times with the indicies 2, 3, 4 and not 2, 2, 2.

CYISignal<uint32_t , uint32_t > CYINodeAdapter::ItemMoved

This signal should be called when an existing item is moved within the adapter's index list. The first parameter of the signal is the previous 0-based index of the item, and the second paramter is the new 0-based index of the item.

Note: The new index of the item assumes that the item has been removed from the items list. For example, if the items list contains 'A, B, C, D' and 'ItemMoved(0, 1)' is called, the new items list would be 'B, A, C, D'.

CYISignal<uint32_t > CYINodeAdapter::ItemRemovedAtIndex

This signal must be called each time an item is removed from the adapter. The parameter of the signal is the 0-based index at which the item was prior to being removed.

The documentation for this class was generated from the following file:

streamer/YiNodeAdapter.h
