Detailed Description

Wraps CYIAssetBuffers and their hardware counterparts, and an internally managed FBO.

A framebuffer is a tool used for off-screen rendering. Textures are attached to various attachment points, corresponding to display buffers (such as color and depth). When the FBO is bound as a render target, these textures will be populated with the corresponding data. They can subsequently be used just as normal textures, for rendering to the screen or for shader effects.

#include <asset/YiAssetFramebuffer.h>

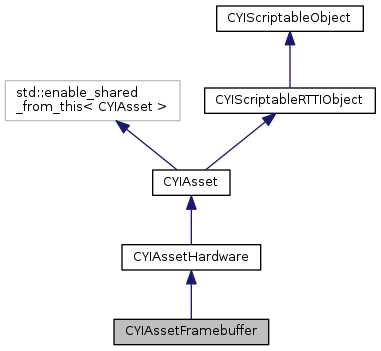

Inheritance diagram for CYIAssetFramebuffer:

[legend]

Public Types
enum	YI_ATTACHMENT { YI_COLOR_ATTACHMENT0 = 0, YI_DEPTHSTENCIL_ATTACHMENT = 1 }

Public Types inherited from CYIAssetHardware
enum	RETENTION_POLICY { RETAIN = 0, UNLOAD }
	The YI_HW_ASSET_RETENTION_POLICY enum specifies the retention policy of static hardware assets from the CPU memory once they are loaded onto the GPU. It is globally configurable, where new CYIAssetHardware will be making use of it and the can also change directly per assets. Be aware that on some platform, it is best to leave the assets retained on the CPU side when the platform lifecycle has the ability to destroy the graphic context while the app still runs, giving You.i Engine the ability to re-load every assets back onto GPU memory really fast. A good example of such platform would be Android. More...

Public Types inherited from CYIAsset
enum	PATH_TYPE { PATH_ABSOLUTE = 0, PATH_RELATIVE }

Public Member Functions
	CYIAssetFramebuffer ()

virtual	~CYIAssetFramebuffer ()

void	EnableAttachment (YI_ATTACHMENT eAttachment)

void	DisableAttachment (YI_ATTACHMENT eAttachment)

bool	HasAttachment (YI_ATTACHMENT eAttachment) const

void	SetDimensions (uint32_t uWidth, uint32_t uHeight)

void	GetDimensions (uint32_t &rWidth, uint32_t &rHeight) const

std::shared_ptr< CYIAssetTextureFramebuffer >	GetAttachedTexture (YI_ATTACHMENT eAttachment) const

virtual bool	RequestInvalidate () override

virtual bool	RequestRestore () override

virtual bool	RequestHardwareLoad () override

virtual bool	RequestHardwareUnload () override

virtual std::pair< uint32_t, uint32_t >	GetApproximateSize () const override

Public Member Functions inherited from CYIAssetHardware
	CYIAssetHardware ()

virtual	~CYIAssetHardware ()

virtual bool	Prepare () override

std::shared_ptr< IYIGPUObject >	GetGPUObject () const

bool	IsLoadedOnGPU () const

RETENTION_POLICY	GetRetentionPolicy () const

void	SetRetentionPolicy (RETENTION_POLICY ePolicy)

Public Member Functions inherited from CYIAsset
virtual	~CYIAsset ()

const CYIString &	GetPath () const

CYIAssetLoadParams *	GetLoadParameters () const

bool	SetName (const CYIString &name)

const CYIString &	GetName () const

bool	Load ()

void	Unload ()

bool	IsLoaded () const

bool	Equals (const std::shared_ptr< CYIAsset > &pAsset)

Public Member Functions inherited from CYIScriptableRTTIObject
	CYIScriptableRTTIObject ()

virtual	~CYIScriptableRTTIObject ()

virtual const CYIRuntimeTypeInfo *	GetRuntimeTypeInfoForScriptObject () const override

Public Member Functions inherited from CYIScriptableObject
	CYIScriptableObject ()

	CYIScriptableObject (const CYIScriptableObject &other)

CYIScriptableObject &	operator= (const CYIScriptableObject &other)

virtual	~CYIScriptableObject ()

CYIBindingImplementation *	GetBindingImplementation () const

void	SetBindingImplementation (CYIBindingImplementation *pBindingImplementation)

Protected Member Functions
virtual std::shared_ptr< IYIGPUObject >	CreateGPUObject () const override

Protected Member Functions inherited from CYIAssetHardware
virtual void	ApplyRetainmentPolicy ()

virtual void	OnLoad () override

Protected Member Functions inherited from CYIAsset
	CYIAsset ()

ssize_t	GetID () const

void	SetPath (const CYIString &path, PATH_TYPE ePathType)

void	SetApproximateSize (uint32_t nSize)

void	SetLoaded (bool bAssetLoaded)

void	SetLoadParameters (std::unique_ptr< CYIAssetLoadParams > pParams)

virtual void	OnUnload ()

Protected Member Functions inherited from CYIScriptableRTTIObject
virtual std::pair< const CYIRuntimeTypeInfo , const void >	GetRuntimeTypeInfoWithObject () const =0

Protected Attributes
std::shared_ptr< CYIAssetTextureFramebuffer >	m_pAttachedTextures [s_uAttachmentTypes]

bool	m_bufferEnabled [s_uAttachmentTypes]

uint32_t	m_uWidth

uint32_t	m_uHeight

Protected Attributes inherited from CYIAssetHardware
bool	m_bHardwareLoadRequested

std::shared_ptr< IYIGPUObject >	m_pGPUObject

RETENTION_POLICY	m_eRetentionPolicy

Static Protected Attributes
static const uint32_t	s_uAttachmentTypes = 2

Static Protected Attributes inherited from CYIAsset
static ssize_t	INVALID_ID

Member Enumeration Documentation

enum CYIAssetFramebuffer::YI_ATTACHMENT

Enumerator
YI_COLOR_ATTACHMENT0
YI_DEPTHSTENCIL_ATTACHMENT

Constructor & Destructor Documentation

CYIAssetFramebuffer::CYIAssetFramebuffer ( )

virtual CYIAssetFramebuffer::~CYIAssetFramebuffer ( )

virtual

Member Function Documentation

virtual std::shared_ptr<IYIGPUObject> CYIAssetFramebuffer::CreateGPUObject ( ) const

overrideprotectedvirtual

Subclasses must implement this function to instance a new IYIGPUObject concrete type corresponding to the asset container. This function will be called by the CreateGPUObject implementation of CYIAssetHardware

Warning: This function may not return null!

Implements CYIAssetHardware.

void CYIAssetFramebuffer::DisableAttachment ( YI_ATTACHMENT eAttachment )

Disables the attachment point for rendering into.

void CYIAssetFramebuffer::EnableAttachment ( YI_ATTACHMENT eAttachment )

Enables the attachment point for rendering into.

virtual std::pair<uint32_t, uint32_t> CYIAssetFramebuffer::GetApproximateSize ( ) const

overridevirtual

Calculates and returns the approximate number of bytes currently used by this asset. The first item of the returned pair object represents the memory currently taken in the CPU main memory, and the second item of the returned pair object represents the memory currently taken in the GPU memory.

Note: This function only returns an approximate memory consumption as the exact memory consumption changes depending on the used C++ libraries and on the specific GPU infrastructure and drivers used by the system.

Reimplemented from CYIAsset.

std::shared_ptr<CYIAssetTextureFramebuffer> CYIAssetFramebuffer::GetAttachedTexture ( YI_ATTACHMENT eAttachment ) const

Returns the buffer associated with the attachment point.

void CYIAssetFramebuffer::GetDimensions	(	uint32_t &	rWidth,
		uint32_t &	rHeight
	)		const

Returns the dimensions of the frame buffer.

bool CYIAssetFramebuffer::HasAttachment ( YI_ATTACHMENT eAttachment ) const

Returns true if the framebuffer has the eAttachment.

virtual bool CYIAssetFramebuffer::RequestHardwareLoad ( )

overridevirtual

Will initiate a load request of the software data into video memory.

Reimplemented from CYIAssetHardware.

virtual bool CYIAssetFramebuffer::RequestHardwareUnload ( )

overridevirtual

Will initiate an unload request from video memory.

Reimplemented from CYIAssetHardware.

virtual bool CYIAssetFramebuffer::RequestInvalidate ( )

overridevirtual

In the event that the hardware context is lost, this method can be called to invalidate the resource.

Will be called automatically if this asset is registered with the asset manager.

Reimplemented from CYIAssetHardware.

virtual bool CYIAssetFramebuffer::RequestRestore ( )

overridevirtual

In the event that the hardware context is restored, this method can be called to restore the resources after it was invalidated using Invalidate.

Will be called automatically if this asset is registered with the asset manager.

Reimplemented from CYIAssetHardware.

void CYIAssetFramebuffer::SetDimensions	(	uint32_t	uWidth,
		uint32_t	uHeight
	)

Sets the dimensions of the frame buffer.

Member Data Documentation

bool CYIAssetFramebuffer::m_bufferEnabled[s_uAttachmentTypes]

protected

std::shared_ptr<CYIAssetTextureFramebuffer> CYIAssetFramebuffer::m_pAttachedTextures[s_uAttachmentTypes]

protected

uint32_t CYIAssetFramebuffer::m_uHeight

protected

uint32_t CYIAssetFramebuffer::m_uWidth

protected

const uint32_t CYIAssetFramebuffer::s_uAttachmentTypes = 2

staticprotected

The documentation for this class was generated from the following file:

asset/YiAssetFramebuffer.h
