Detailed Description

As asset container which wraps shared index or vertex buffer object data.

#include <asset/YiAssetBufferObjectData.h>

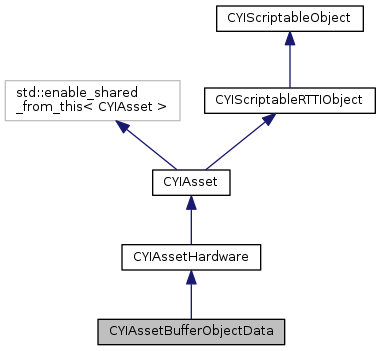

Inheritance diagram for CYIAssetBufferObjectData:

[legend]

Public Types
enum	YI_BUFFER_TYPE { YI_VERTEX_BUFFER, YI_INDEX_BUFFER }

enum	YI_BUFFER_USAGE { YI_BUFFER_USAGE_STATIC, YI_BUFFER_USAGE_DYNAMIC }

Public Types inherited from CYIAssetHardware
enum	RETENTION_POLICY { RETAIN = 0, UNLOAD }
	The YI_HW_ASSET_RETENTION_POLICY enum specifies the retention policy of static hardware assets from the CPU memory once they are loaded onto the GPU. It is globally configurable, where new CYIAssetHardware will be making use of it and the can also change directly per assets. Be aware that on some platform, it is best to leave the assets retained on the CPU side when the platform lifecycle has the ability to destroy the graphic context while the app still runs, giving You.i Engine the ability to re-load every assets back onto GPU memory really fast. A good example of such platform would be Android. More...

Public Types inherited from CYIAsset
enum	PATH_TYPE { PATH_ABSOLUTE = 0, PATH_RELATIVE }

Public Member Functions
	CYIAssetBufferObjectData ()

	CYIAssetBufferObjectData (const CYIString &path, PATH_TYPE ePathType=PATH_RELATIVE)

virtual	~CYIAssetBufferObjectData ()

const std::vector< uint8_t > &	GetData () const

YI_BUFFER_TYPE	GetType () const

YI_BUFFER_USAGE	GetUsage () const

void	SetData (uint8_t const *pData, uint32_t uNumOfElements, uint32_t uSizeOfElement)

void	Resize (uint32_t uNumOfElements, uint32_t uSizeOfElement)

void	SetData (const std::vector< uint8_t > &rData)

void	SetType (YI_BUFFER_TYPE eType)

void	SetUsage (YI_BUFFER_USAGE eUsage)

uint32_t	GetSizeInBytes () const

virtual std::pair< uint32_t, uint32_t >	GetApproximateSize () const override

Public Member Functions inherited from CYIAssetHardware
	CYIAssetHardware ()

virtual	~CYIAssetHardware ()

virtual bool	RequestHardwareLoad ()

virtual bool	RequestHardwareUnload ()

virtual bool	RequestInvalidate ()

virtual bool	RequestRestore ()

virtual bool	Prepare () override

std::shared_ptr< IYIGPUObject >	GetGPUObject () const

bool	IsLoadedOnGPU () const

RETENTION_POLICY	GetRetentionPolicy () const

void	SetRetentionPolicy (RETENTION_POLICY ePolicy)

Public Member Functions inherited from CYIAsset
virtual	~CYIAsset ()

const CYIString &	GetPath () const

CYIAssetLoadParams *	GetLoadParameters () const

bool	SetName (const CYIString &name)

const CYIString &	GetName () const

bool	Load ()

void	Unload ()

bool	IsLoaded () const

bool	Equals (const std::shared_ptr< CYIAsset > &pAsset)

Public Member Functions inherited from CYIScriptableRTTIObject
	CYIScriptableRTTIObject ()

virtual	~CYIScriptableRTTIObject ()

virtual const CYIRuntimeTypeInfo *	GetRuntimeTypeInfoForScriptObject () const override

Public Member Functions inherited from CYIScriptableObject
	CYIScriptableObject ()

	CYIScriptableObject (const CYIScriptableObject &other)

CYIScriptableObject &	operator= (const CYIScriptableObject &other)

virtual	~CYIScriptableObject ()

CYIBindingImplementation *	GetBindingImplementation () const

void	SetBindingImplementation (CYIBindingImplementation *pBindingImplementation)

Protected Member Functions
virtual std::shared_ptr< IYIGPUObject >	CreateGPUObject () const override

virtual void	OnUnload () override

virtual void	ApplyRetainmentPolicy () override

Protected Member Functions inherited from CYIAssetHardware
virtual void	OnLoad () override

Protected Member Functions inherited from CYIAsset
	CYIAsset ()

ssize_t	GetID () const

void	SetPath (const CYIString &path, PATH_TYPE ePathType)

void	SetApproximateSize (uint32_t nSize)

void	SetLoaded (bool bAssetLoaded)

void	SetLoadParameters (std::unique_ptr< CYIAssetLoadParams > pParams)

Protected Member Functions inherited from CYIScriptableRTTIObject
virtual std::pair< const CYIRuntimeTypeInfo , const void >	GetRuntimeTypeInfoWithObject () const =0

Additional Inherited Members
Protected Attributes inherited from CYIAssetHardware
bool	m_bHardwareLoadRequested

std::shared_ptr< IYIGPUObject >	m_pGPUObject

RETENTION_POLICY	m_eRetentionPolicy

Static Protected Attributes inherited from CYIAsset
static ssize_t	INVALID_ID

Member Enumeration Documentation

enum CYIAssetBufferObjectData::YI_BUFFER_TYPE

Creation hints for the buffers

Enumerator
YI_VERTEX_BUFFER	A vertex buffer object
YI_INDEX_BUFFER	An index buffer object

enum CYIAssetBufferObjectData::YI_BUFFER_USAGE

Enumerator
YI_BUFFER_USAGE_STATIC	Hint indicating that the buffer should not be modified. Updating will delete and recreate the buffer
YI_BUFFER_USAGE_DYNAMIC	Hint indicating that the buffer can be dynamically updated.

Constructor & Destructor Documentation

CYIAssetBufferObjectData::CYIAssetBufferObjectData ( )

CYIAssetBufferObjectData::CYIAssetBufferObjectData	(	const CYIString &	path,
		PATH_TYPE	ePathType = `PATH_RELATIVE`
	)

virtual CYIAssetBufferObjectData::~CYIAssetBufferObjectData ( )

virtual

Member Function Documentation

virtual void CYIAssetBufferObjectData::ApplyRetainmentPolicy ( )

overrideprotectedvirtual

Unloads CPU-side data buffer memory if the retainment policy is configured to unload instead of retaining it.

This function should only be used internally by the GPU object after the data has been uploaded onto the GPU. that some asset may chose to retain/unload cpu assets with additional conditions. For example, CYIAssetTextureBase won't unload the cpu asset if the asset is marked as being dynamic.

See also: YI_HW_ASSET_RETENTION_POLICY; SetRetentionPolicy; GetRetentionPolicy

Reimplemented from CYIAssetHardware.

virtual std::shared_ptr<IYIGPUObject> CYIAssetBufferObjectData::CreateGPUObject ( ) const

overrideprotectedvirtual

Subclasses must implement this function to instance a new IYIGPUObject concrete type corresponding to the asset container. This function will be called by the CreateGPUObject implementation of CYIAssetHardware

Warning: This function may not return null!

Implements CYIAssetHardware.

virtual std::pair<uint32_t, uint32_t> CYIAssetBufferObjectData::GetApproximateSize ( ) const

overridevirtual

Calculates and returns the approximate number of bytes currently used by this asset. The first item of the returned pair object represents the memory currently taken in the CPU main memory, and the second item of the returned pair object represents the memory currently taken in the GPU memory.

Note: This function only returns an approximate memory consumption as the exact memory consumption changes depending on the used C++ libraries and on the specific GPU infrastructure and drivers used by the system.

Reimplemented from CYIAsset.

const std::vector<uint8_t>& CYIAssetBufferObjectData::GetData ( ) const

Returns a read-only reference of the buffer. The user can chose to make a copy instead if alteration are necessary. Once altered, the copy has to be stored using SetData.

uint32_t CYIAssetBufferObjectData::GetSizeInBytes ( ) const

Get the size of the buffer in bytes

YI_BUFFER_TYPE CYIAssetBufferObjectData::GetType ( ) const

Get the type of buffer data this represents

YI_BUFFER_USAGE CYIAssetBufferObjectData::GetUsage ( ) const

Get the buffer usage

virtual void CYIAssetBufferObjectData::OnUnload ( )

overrideprotectedvirtual

Reimplemented from CYIAsset.

void CYIAssetBufferObjectData::Resize	(	uint32_t	uNumOfElements,
		uint32_t	uSizeOfElement
	)

Allocates memory in internal structure of the object based on the provided number of elements and the provided size of elements.

void CYIAssetBufferObjectData::SetData	(	uint8_t const *	pData,
		uint32_t	uNumOfElements,
		uint32_t	uSizeOfElement
	)

Stores buffer to the object. Will automatically allocate/reallocate memory in its internal structure based on the provided number of elements and the provided size of elements

void CYIAssetBufferObjectData::SetData ( const std::vector< uint8_t > & rData )

Stores buffer to the object. will automatically allocate/reallocate uSizeInBytes of memory at a specified address.

void CYIAssetBufferObjectData::SetType ( YI_BUFFER_TYPE eType )

Set the type of buffer data this represents

void CYIAssetBufferObjectData::SetUsage ( YI_BUFFER_USAGE eUsage )

Set the usage for the buffer.

The documentation for this class was generated from the following file:

asset/YiAssetBufferObjectData.h
