Frame
Minimum Width
8”
Maximum Width
30”
Minimum Height
10”
Maximum Height
80”
Top & Bottom Rail Height
Minimum Width
1 1/2”
Maximum Width
12”
Right & Left Stile Width
Minimum Width
1 1/2”
Maximum Width
5”
K4
Custom Appliance Panels
Panels-Shelving-Trays

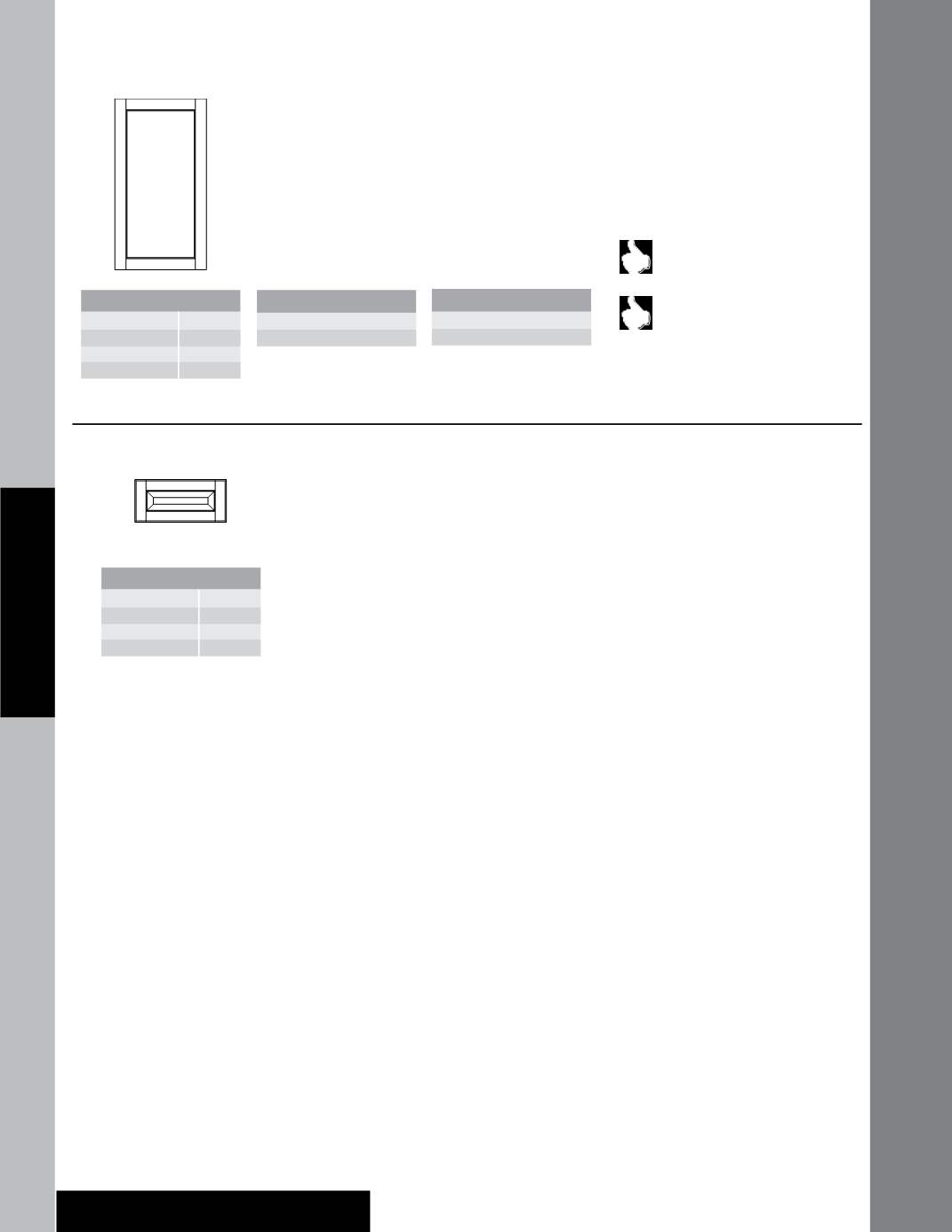

Universal Custom Appliance Panel–Frame Only
UCAPFO
• Universal Frame Only panels have a 3/32” radius
on both inside and outside edges of stiles and
rails
• Frame Only panels will
not
be supplied with
applied molding on applicable door styles.
• Stile and rail sizes can be modified
• Backs are finished
•
Not
available in EverCore™, High-Gloss Laminate,
Laminate or Woodgrain Laminate door styles
Use with wine chillers that have
framed glass doors
Custom Appliance Panels (CAP) are
located in 2020 Design under Base-
>Panels->Custom Appliance Panel.
Once the panel is placed on the floor plan, the
CAP wizard will pop-up and dimensions can be
specified
Custom Appliance Panel–Drawer Onlay Panel
CAPDW
• Five-piece grill panels/drawer heads ordered in
heights less than 6 1/8˝ may be supplied as a
solid slab onlay panel. Some five-piece drawer
fronts may have a recessed center panel.
• Drawer front configuration will follow the
selected door style
• Veneer raised panel door styles will be supplied
with a solid wood center panel machined to
resemble the veneer center panel
•
Not
available in EverCore™, High-Gloss Laminate,
Laminate or Woodgrain Laminate door styles
• “Width” will be referred to as “Length” on your
faxed acknowledgments for CAPDW only
• If unit is installed at an angle, fillers should be
used to avoid interference with adjacent cabinet
• Stiles and rails will be the same size and profile
as the selected door style
• DRPD and CLDF options are available for
applicable door styles only
• Backs are finished
* Max width is 48” when ordered
taller than 20” (Max height is 30“)
** Max width is 60” when ordered
20” and shorter
Onlay Panel
Minimum Width
6”
Maximum Width
48”*, 60”**
Minimum Height
2 1/4”
Maximum Height
30”, 20”
