Frame
Minimum Width
8”
Maximum Width
30”
Minimum Height
10”
Maximum Height
80”
Top & Bottom Rail Height
Minimum Width
1 1/2”
Maximum Width
12”
Right & Left Stile Width
Minimum Width
1 1/2”
Maximum Width
5”
K3
Custom Appliance Panels
Panels-Shelving-Trays

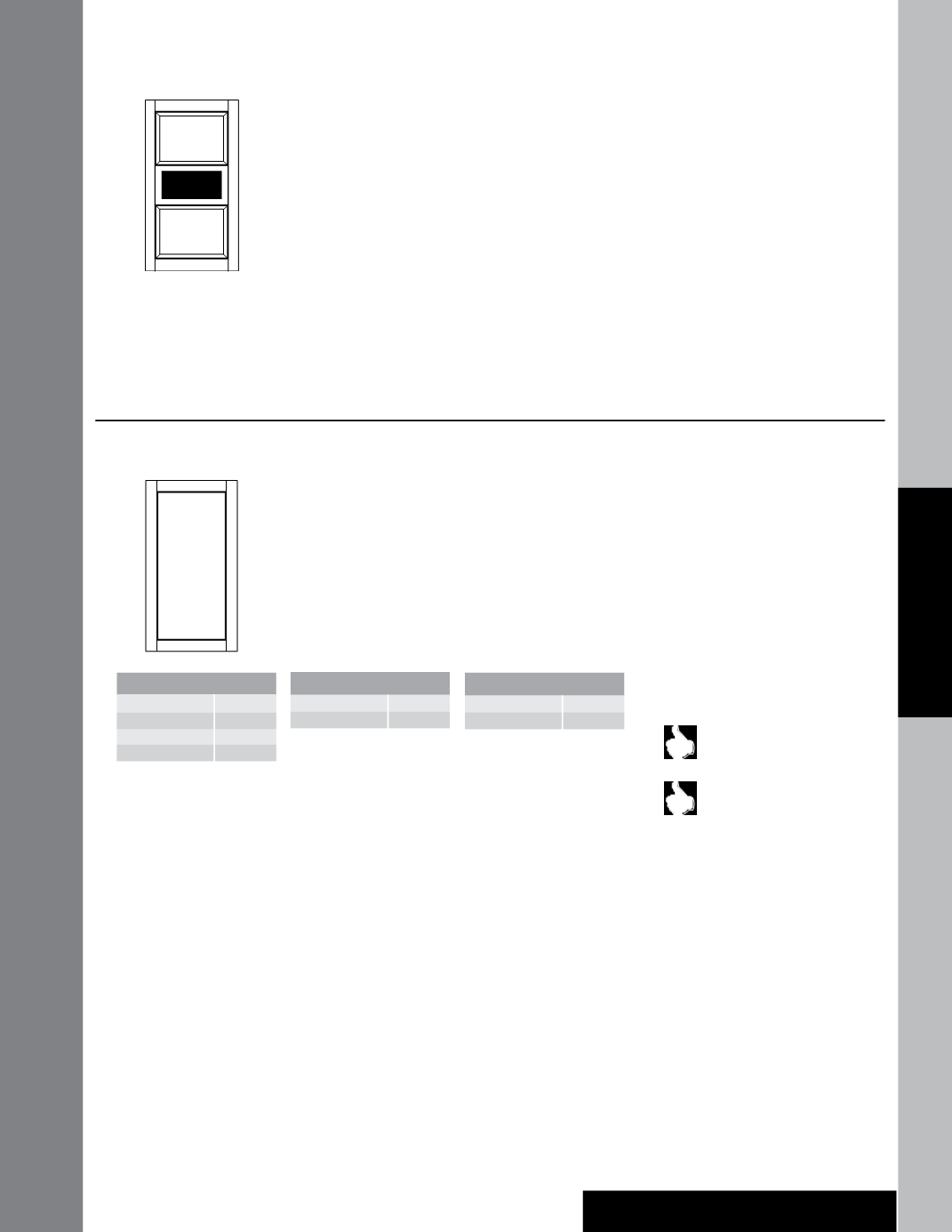

Center Rail Cutout
CUTOUT
• Specify cutout width and height
• The cutout position can be customized
based on the distance specified from the left
outside edge and from the top outside edge
of the door onlay panel
• Refer to appliance manufacturer’s
specification to ensure ice/water dispenser
trim will accommodate a 3/4” to 1” thick
panel.
• Cutouts will have 3/16” radius corners
• Center Rail Cutout (CUTOUT) is only
available on the Custom Appliance Panel–
Door Onlay Panel with Custom Center Rail
(CAPDR_•CR)
•
Not
available in EverCore™, High-Gloss
Laminate or Woodgrain Laminate door styles
Custom Appliance Panel-Frame Only
CAPFO
• Available in the following door styles only if
the stiles and rails are the same dimension:
Mandolay Birch, Mandolay Cherry, and
Mandolay Maple. Otherwise Universal Frame
Only panels
must
be used.
• Frame Only panels will
not
be supplied with
applied molding on applicable door styles.
• Outside edge profiles on stiles and rails will
match the selected door style for Frame
Only panels, and the inside edge profiles will
have a 3/32” radius.
• Stile and rail sizes can be modified
•
Not
available in mitered or slab door styles
•
Not
available in EverCore™, High-Gloss
Laminate, Laminate or Woodgrain Laminate
door styles
• Backs are finished
Use with wine chillers that have
framed glass doors
Custom Appliance Panels (CAP)
are located in 2020 Design under
Base->Panels->Custom Appliance
Panel. Once the panel is placed on the floor
plan, the CAP wizard will pop-up and
dimensions can be specified
