Center Rail Position
Center Rail Height
Onlay Panel
Distance from the top of the rail
to the top of the center rail
Distance from the top of the rail
to the bottom of the center rail
Minimum Width
Maximum Width
Minimum Height
Maximum Height
Minimum Width
Maximum Width
Minimum Height
Maximum Height
8”
36”
24”
80”
2 3/4”
36”
11”
80”
1 1/2”
18”
Minimum
Maximum
K2
Custom Appliance Panels
Panels-Shelving-Trays

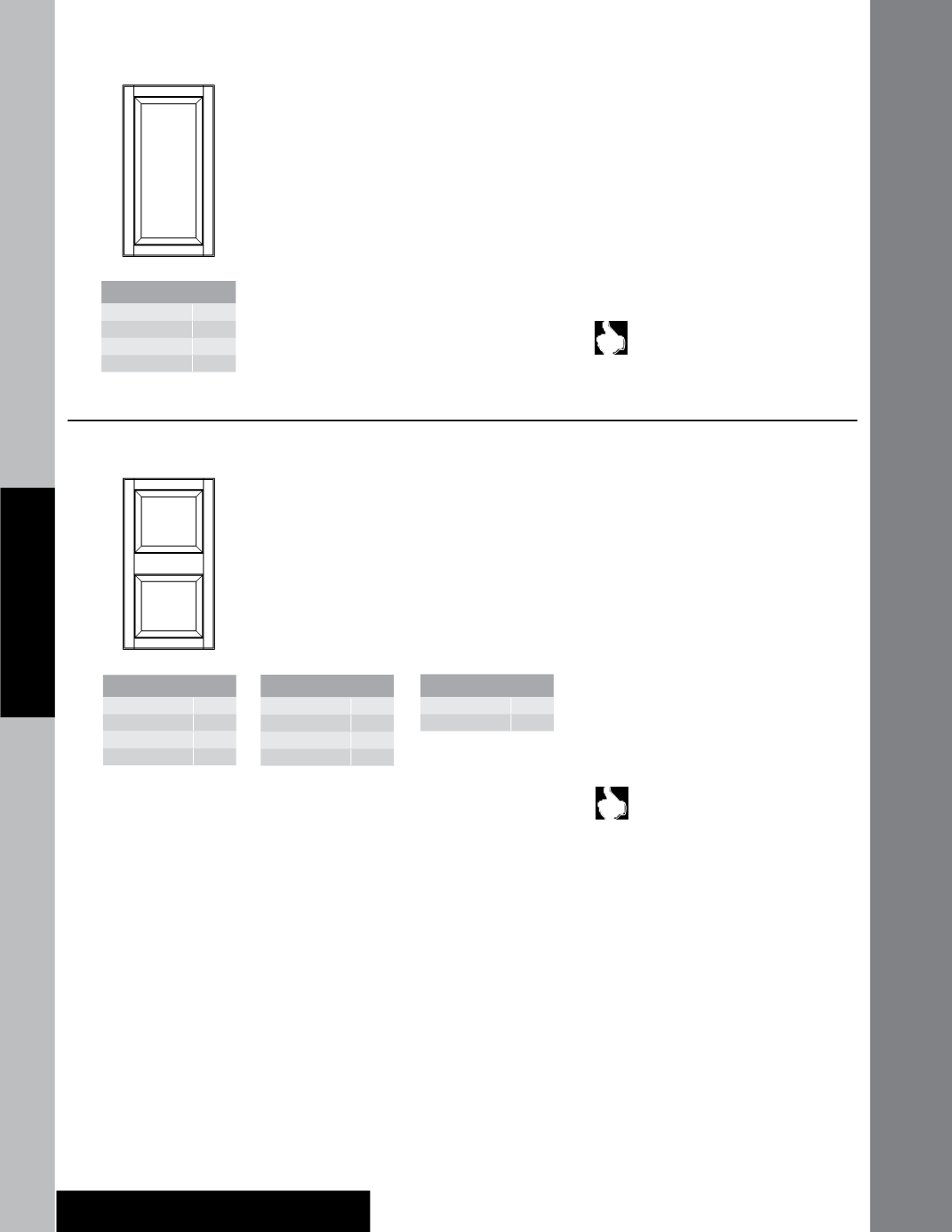

Custom Appliance Panel–Door Onlay Panel
CAPDR•B
CAPDR•W
• No center rail
• When an arched door style is selected, you
must
select Arched (•W) or Square (•B) to determine the
door and onlay panel’s top profile
• When a square door style is selected, the square
profile will be supplied for all onlay panels as
standard. It is recommended to use a square profile
when ordering an onlay panel for a dishwasher or
trash compactor application.
•
Not
available in EverCore™, High-Gloss Laminate,
Laminate or Woodgrain Laminate door styles
• Stiles and rails will be the same size and profile as
the selected door style
• Cutouts are
not
available
• Backs are finished
Custom Appliance Panels (CAP) are
located in 2020 Design under Base-
>Panels->Custom Appliance Panel. Once
the panel is placed on the floor plan, the CAP
wizard will pop-up and dimensions can be specified
Onlay Panel
Minimum Width
Maximum Width
Minimum Height
Maximum Height
8”
36”
10”
80”
Custom Appliance Panel–Door Onlay Panel with Custom Center Rail
CAPDR•B•CR
CAPDR•W•CR
• Onlay panels ordered 30 1/16”-80” high will have a
center rail
• The center rail position can be customized based
on the distance specified from the top of the top
rail and the top of the center rail
• The center rail
cannot
be positioned or sized so
that the distance between the top and/or bottom
rail is less than 6” in height
• Due to varying dimensions and designs of raised
center panels, recessed center panels may be
supplied when the center panel width or height is
less than 3 1/4”
•
Not
available in EverCore™, High-Gloss Laminate,
Laminate or Woodgrain Laminate door styles
•
Not
available in mitered door styles
• Optional center rail cutout (CUTOUT) is available
• Stiles and rails will be the same size and profile as
the selected door style
• Backs are finished
• Not
e
: If center rail modifications are
not
necessary,
use Decorative Appliance Panels
Custom Appliance Panels (CAP) are
located in 2020 Design under Base-
>Panels->Custom Appliance Panel. Once
the panel is placed on the floor plan, the CAP
wizard will pop-up and dimensions can be specified
