D40
Wall Hoods
Wall Cabinets

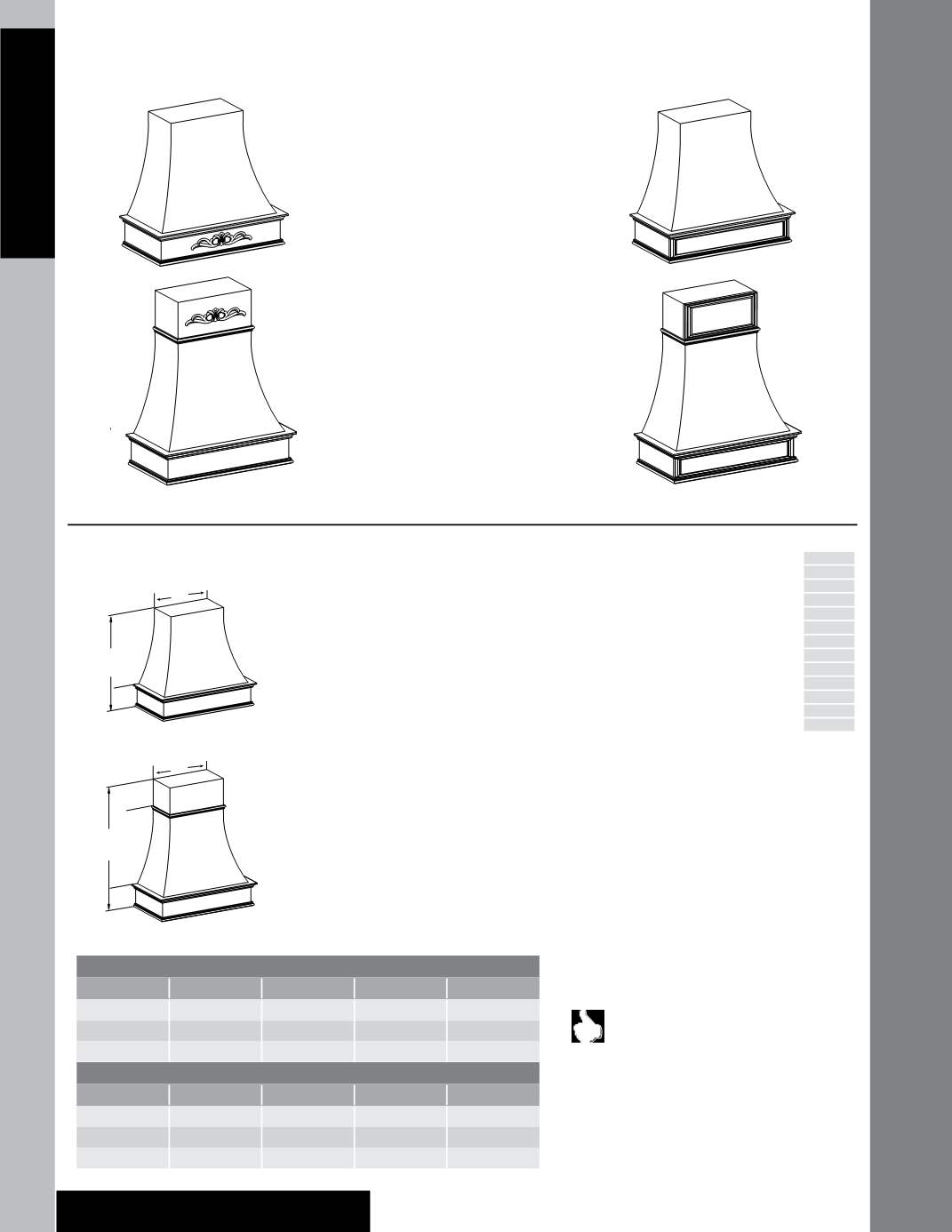

Wall Hood Cove Application
• Make the cooking area a dramatic focal point by adding
a drawer front, appliance panel, molding or onlay to the
cove hood to create architectural interest
• Decorate the front apron of the hood with a drawer
front to add architectural interest, which can be ordered
through the Custom Appliance Panel Program
• Customize the 12” H cap on the 54” H units with a
molding stack, custom appliance panel used as wainscot,
or a decorative onlay
• Don’t forget to trim out the top of your hood with the
same top molding you are using for the wall cabinets in
your kitchen
Onlays
30”H - 42” H
54” H
Drawer Front Panels
30”H - 42” H
54” H
Wall Hood Cove
30” High
WHCV362430
WHCV422430
WHCV482430
42” High
WHCV362442
WHCV422442
WHCV482442
54” High
i
WHCV362454
i
WHCV422454
i
WHCV482454
• Small Cove Casing (SCVCS) used with top
component
• Available in Cherry, EverCore™, Laminate,
Maple and Woodgrain Laminate door styles
only
• Painted hardwood supplied for EverCore™
• Painted or Stained hardwood supplied for
Woodgrain Laminate door styles
• Solid wood/wood veneer construction
• Check local building codes for required
clearances between the Wall Hood and
cooking surface
• Requires Wall Hood Component Package “G” or “P”,
located before the Wall Hood Designs in this section
• A 3˝ space is recommended on the right and left side of
this unit before beginning the adjacent cabinet runs
• 30˝ high hoods are designed for use with 8 foot ceilings
• 42˝ high hoods are designed for use with 9 foot ceilings
• 54˝ high hoods are designed for use with 10 ft. ceilings
• Decorative molding on top matches Small Cove Molding
profile (SCVM8). Bottom molding matches Cove Light Rail
profile (CVLR8)
• Chimney section shipped separately
• Recirculating component packages are
not
available
•
Not
designed to be used with a soffit
•
Note
: Cabinetry and appliances located below these Wall
Hoods
must
be pulled to a minimum of 27˝deep and a
maximum of 30˝ deep for improved function
•
Note
: Wall Hood
must
be securely anchored to wall
Order a decorative drawer front from our
Custom Appliance panel program to create a
customized insert that matches your door profile
for the front apron of your hood.
You may also use a drawer front to create a matching
custom look on the 12” cap used to create the 54”H units.
PE
v
APC
APFC
FPEB
MI
DE
CW
RD
ID
CH
XS
XSG
GD
30˝
42˝
10˝
24˝
19 / ˝, 25 / ˝, 31 / ˝
39 / ˝, 45 / ˝, 51 / ˝
54˝
10˝
11 ½˝
24˝
19 / ˝, 25 / ˝, 31 / ˝
39 / ˝, 45 / ˝, 51 / ˝
idth Bottom Depth
Opening Sizes
Cabinet
Top Width
Top Depth Bottom W
WHCV36
WHCV42
WHCV48
21 / ˝
21 / ˝
21 / ˝
12 / ˝
18 / ˝
24 / ˝
34 ½˝
40 ½˝
46 ½˝
10¾˝
10¾˝
10¾˝
Surface Area Dimensions for Decorative Onlay Application
Cabinet
WHCV36
WHCV42
WHCV48
36˝
42˝
48˝
6 / ˝
6 / ˝
6 / ˝
6 / ˝
6 / ˝
6 / ˝
Front Width Front Height
Side Width
Side Height
22 ¼˝
22 ¼˝
22 ¼˝
i
54” Cove Hood will have trim molding
approximately 12” from the top of the
chimney
