D38

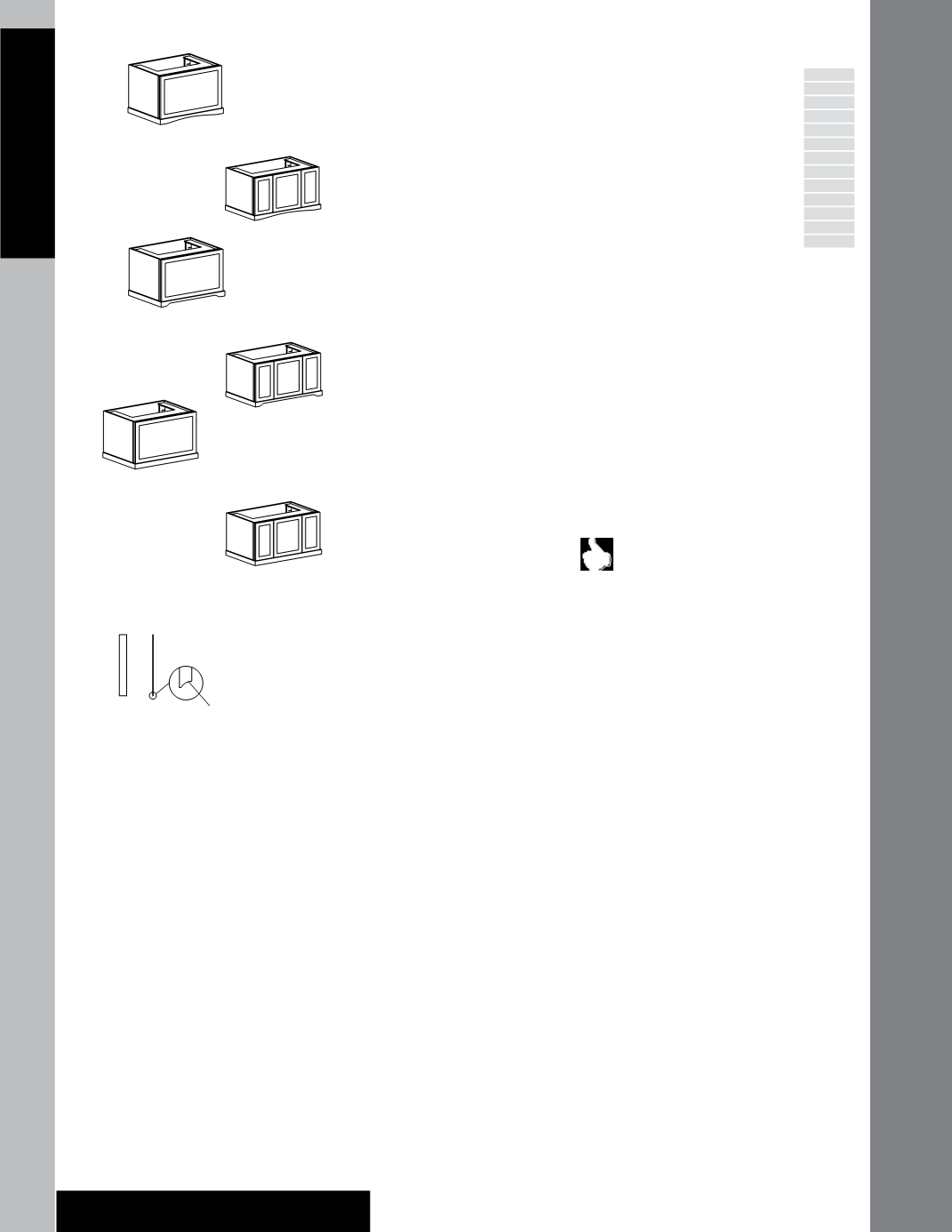

Wall Hoods
Wall Cabinets
Wall Hood Box Valance
Cove Valance
21” High
WHB301821 •CV
WHB361821 •CV
WHB362121 •CV
WHB422121 •CV
26 1/2” High
WHB301827 •CV
WHB361827 •CV
WHB362127 •CV
WHB422127 •CV
33” High
WHB301833 •CV
WHB361833 •CV
WHB362133 •CV
WHB422133 •CV
39” High
WHB301839 •CV
WHB361839 •CV
WHB362139 •CV
WHB422139 •CV
Furniture Valance
21” High
WHB301821 •FN
WHB361821 •FN
WHB362121 •FN
WHB422121 •FN
26 1/2” High
WHB301827 •FN
WHB361827 •FN
WHB362127 •FN
WHB422127 •FN
33” High
WHB301833 •FN
WHB361833 •FN
WHB362133 •FN
WHB422133 •FN
39” High
WHB301839 •FN
WHB361839 •FN
WHB362139 •FN
WHB422139 •FN
Straight Valance
21” High
WHB301821 •ST
WHB361821 •ST
WHB362121 •ST
WHB422121 •ST
26 1/2” High
WHB301827 •ST
WHB361827 •ST
WHB362127 •ST
WHB422127 •ST
33” High
WHB301833 •ST
WHB361833 •ST
WHB362133 •ST
WHB422133 •ST
39” High
WHB301839 •ST
WHB362139 •ST
WHB361839 •ST
WHB422139 •ST
• Solid wood/wood veneer construction
• Laminates are painted hardwood
• All door styles will default to full overlay
• Doors are attached by false front clips.
Not
operational
• Designed to align with top of adjacent
cabinets
• Valance adds 3” to overall height and 5/32”
width to both sides
• Includes (2) Wall Hood Box Fillers, shipped
separately
• 30 5/16” and 36 5/16” wide hoods have a single door
panel
• 42 5/16” wide hoods have three door panels
• 19” deep requires Wall Hood Component Package “J”,
located before the Wall Hood Designs in this section
• 22” deep requires Wall Hood Component Package “G” or
“P”, located before the Wall Hood Designs in this section
• Check local building codes for required clearances
between the Wall Hood and cooking surface
• Filler strips are used when butting adjacent cabinets
against the Wall Hood Box. Fillers
must
be used in this
application to avoid gaps between cabinet boxes.
•
Not
available in Belmont Roman, Belmont Square, Hanley
Roman, Hanley Square or Harper door styles
•
Note
: Square doors will be supplied when ordered in
arched door styles
•
Note
: Cabinetry and appliances located below these Wall
Hoods
must
be pulled to a minimum of 27˝deep and a
maximum of 30˝ deep for improved function
The Wall Hood Box Filler should be used when
installing the hood box between two wall
cabinets
PE
APC
v
APFC
FPEB
MI
DE
CW
RD
ID
CH
XS
XSG
GD
Radius to match top of valance
Wall Hood Box Filler
