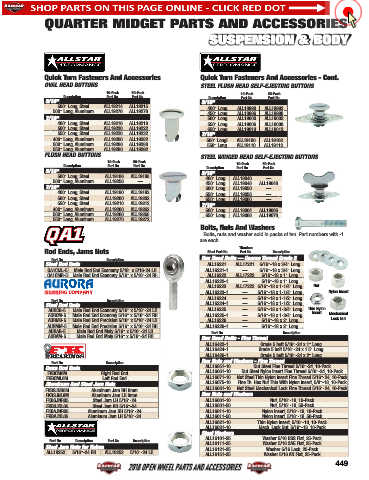

Page 450 - 2018 Racecar Engineering Open Wheel Parts and Accessories Catalog

QUARTER MIDGET PARTS AND ACCESSORIES

SUSPENSION & BODY

Quick Turn Fasteners And Accessories Quick Turn Fasteners And Accessories - Cont.
OVAL HEAD BUTTONS STEEL FLUSH HEAD SELF-EJECTING BUTTONS
10-Pack 50-Pack 10-Pack 50-Pack
Description Part No. Part No. Description Part No. Part No.
5/16" 5/16"
.500" Long, Steel ALL19214 ALL19215 .400" Long ALL18990 ALL18992
.500" Long, Aluminum ALL19276 ALL19278 .450" Long ALL18996 ALL18998
7/16" .500" Long ALL19000 ALL19002
.400" Long, Steel ALL19216 ALL19218 .550" Long ALL19006 ALL19008
.500" Long, Steel ALL19220 ALL19222 .650" Long ALL19010 ALL19012
.550" Long, Steel ALL19230 ALL19232 7/16"
.400" Long, Aluminum ALL19280 ALL19282 .500" Longl ALL19100 ALL19102
.500" Long, Aluminum ALL19286 ALL19288 .550" Long ALL19110 ALL19112
.550" Long, Aluminum ALL19290 ALL19292
FLUSH HEAD BUTTONS STEEL WINGED HEAD SELF-EJECTING BUTTONS
10-Pack 50-Pack
Description Part No. Part No. Description 10-Pack 50-Pack
Part No.
Part No.
5/16" 5/16"
.500" Long, Steel ALL19186 ALL19188 .400" Long ALL19040 —
.500" Long, Aluminum ALL19256 — .450" Long ALL19046 ALL19048
7/16" .500" Long ALL19050 —
.400" Long, Steel ALL19190 ALL19192 .550" Long ALL19056 —
.500" Long, Steel ALL19200 ALL19202 .650" Long ALL19060 —
.550" Long, Steel ALL19210 ALL19212 7/16"
.400" Long, Aluminum ALL19260 ALL19262 .500" Long ALL19064 ALL19066
.500" Long, Aluminum ALL19266 ALL19268 .650" Long ALL19068 ALL19070
.550" Long, Aluminum ALL19270 ALL19272
Bolts, Nuts And Washers
Bolts, nuts and washer sold in packs of ten. Part numbers with -1
are each.
Titanium
Rod Ends, Jams Nuts Steel Part No. Part No. Description
Hex Head Bolts — Coarse Thread Grade 5
Part No. Description
Steel Rod Ends ALL16221 ALL17221 5/16"-18 x 3/4" Long
QA1CML-5 Male Rod End Economy 5/16" x 5/16-24 LH ALL16221-1 — 5/16"-18 x 3/4" Long
QA1CMR-5 Male Rod End Economy 5/16" x 5/16"-24 RH ALL16222 ALL17222 5/16"-18 x 1" Long
ALL16222-1 — 5/16"-18 x 1" Long
ALL16223 ALL17223 5/16"-18 x 1-1/4" Long Nut
ALL16223-1 — 5/16"-18 x 1-1/4" Long Nylon Insert
ALL16224 — 5/16"-18 x 1-1/2" Long
Part No. Description
Steel Rod Ends ALL16224-1 — 5/16"-18 x 1-1/2" Long Thin Nylon
AURCB-5 Male Rod End Economy 5/16" x 5/16"-24 LH ALL16225 — 5/16"-18 x 1-3/4" Long Insert
AURCM-5 Male Rod End Economy 5/16" x 5/16"-24 RH ALL16225-1 — 5/16"-18 x 1-3/4" Long Mechanical
Lock Nut
AURMB-5 Male Rod End Precision 5/16" x 5/16"-24 LH ALL16226 — 5/16"-18 x 2" Long
AURMM-5 Male Rod End Precision 5/16" x 5/16"-24 RH ALL16226-1 — 5/16"-18 x 2" Long
AURAB-5 Male Rod End Moly 5/16" x 5/16"-24 LH Part No. Description
AURAM-5 Male Rod End Moly 5/16" x 5/16"-24 RH
Hex Head Bolts - Fine Thread
ALL16422-1 Grade 5 bolt 5/16"-24 x 1" Long
ALL16424-1 Grade 5 bolt 5/16"-24 x 1.5" Long
ALL16426-1 Grade 5 bolt 5/16"-24 x 2" Long
Hex Nuts and Washers - Fine Thread
Part No. Description
8mm Rod Ends ALL16051-10 Nut Steel Fine Thread 5/16"-24, 10-Pack
FKBCM8M Right Rod End ALL16061-10 Nut Steel Nylon Insert Fine Thread 5/16"-24, 10-Pack
FKBCML8M Left Rod End ALL16071-10 Nut Steel Thin Nylon Insert Fine Thread 5/16"-24, 10-Pack
Aluminum And Steel Jam Nuts ALL16075-10 Fine Th. Hex Nut Thin With Nylon Insert, 5/8"-18, 10-Pack
FKBSJNR8M Aluminum Jam RH 8mm ALL16081-10 Nut Steel Mechanical Lock Fine Thread 5/16"-24, 10-Pack
FKBSJNL8M Aluminum Jam LH 8mm Hex Nuts and Washers
FKBSJNR05 Steel Jam LH 5/16"-24 ALL16001-10 Nut, 5/16"-18, 10-Pack
FKBSJNL05 Steel Jam RH 5/16"-24 ALL16001-50 Nut, 5/16"-18, 50-Pack
FKBAJNR05 Aluminum Jam RH 5/16"-24 ALL16011-10 Nylon Insert, 5/16"-18, 10-Pack
FKBAJNL05 Aluminum Jam LH 5/16"-24 ALL16011-50 Nylon Insert, 5/16"-18, 50-Pack
ALL16021-10 Thin Nylon Insert, 5/16"-18, 10-Pack
ALL16031-10 Mech. Lock Nut, 5/16"-18, 10-Pack
Steel Washers
ALL16101-25 Washer 5/16 USS Flat, 25-Pack
Part No. Description Part No. Description
ALL16111-25 Washer 5/16 SAE Flat, 25-Pack
Steel Jam Nuts for Heims ALL16121-25 Washer 5/16 Lock, 25-Pack
ALL18252 5/16"-24 RH ALL18253 5/16"-24 LH ALL16151-25 Washer 5/16 AN Flat, 25-Pack
449
