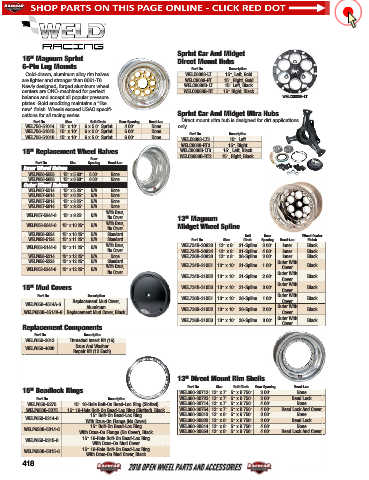

Page 419 - 2018 Racecar Engineering Open Wheel Parts and Accessories Catalog

Sprint Car And Midget
15" Magnum Sprint Direct Mount Hubs
6-Pin Lug Mounts Part No. Description
Cold-drawn, aluminum alloy rim halves WELC8088-LT 15", Left, Gold
are lighter and stronger than 6061-T6. WELC8088-RT 15", Right, Gold
Newly designed, forged aluminum wheel WELC8088B-LT 15" Left, Black
centers are CNC-machined for perfect WELC8088B-RT 15" Right, Black
balance and accept all popular pressure WELC8088B-LT
plates. Gold anodizing maintains a “like
new” finish. Wheels exceed USAC specifi-
cations for all racing series. Sprint Car And Midget Ultra Hubs
Part No. Size Bolt Circle Rear Spacing Bead-Loc Direct mount ultra hub is designed for dirt applications
WEL756-51014 15" x 10" 6 x 5.0" Sprint 4.00" None only.
WEL756-51015 15" x 10" 6 x 5.0" Sprint 5.00" None Part No. Description
WEL756-51016 15" x 10" 6 x 5.0" Sprint 6.00" None
WELC8088-LT3 15", Left
WELC8088-RT3 15", Right
15" Replacement Wheel Halves WELC8088B-LT3 15", Left, Black
WELC8088B-RT3 15", Right, Black
Rear
Part No. Size Spacing Bead-Loc
Inner Wheel Halves
WELP856-5558 15" x 5.63" 5.00" None
WELP856-5658 15" x 6.63" 6.00" None
Outer Wheel Halves
WELP857-5514 15" x 5.25" N/A None
WELP857-5614 15" x 6.25" N/A None
WELP857-5814 15" x 8.25" N/A None
WELP857-5914 15" x 9.25" N/A None
With Dzus,
WELP857-5944-6 15" x 9.25" N/A
No Cover 13" Magnum
With Dzus,
WELP858-5044-6 15" x 10.25" N/A Midget Wheel Spline
No Cover
WELP858-5024 15" x 10.25" N/A Standard Bolt Rear Wheel Center
WELP858-5124 15" x 11.25" N/A Standard Part No. Size Circle Spacing Bead-Loc Finish
With Dzus, WEL734B-30833 13" x 8" 31-Spline 3.00" Inner Black
WELP858-5144-6 15" x 11.25" N/A
No Cover WEL734B-30834 13" x 8" 31-Spline 4.00" Inner Black
WELP858-5214 15" x 12.25" N/A None WEL736B-30833 13" x 8" 36-Spline 3.00" Inner Black
WELP858-5224 15" x 12.25" N/A Standard WEL734B-31051 13" x 10" 31-Spline 1.00" Outer With Black
With Dzus, Cover
WELP858-5244-6 15" x 12.25" N/A
No Cover Outer With
WEL734B-31052 13" x 10" 31-Spline 2.00" Black
Cover
Outer With
15" Mud Covers WEL734B-31053 13" x 10" 31-Spline 3.00" Cover Black
Part No. Description WEL736B-31051 13" x 10" 36-Spline 1.00" Outer With Black
Replacement Mud Cover, Cover
WELP650-4514A-6
Aluminum WEL736B-31052 13" x 10" 36-Spline 2.00" Outer With Black
WELP650B-4514A-6 Replacement Mud Cover, Black Cover
Outer With
WEL736B-31053 13" x 10" 36-Spline 3.00" Cover Black
Replacement Components
Part No. Description
WELP650-3013 Threaded Insert Kit (16)
Dzus And Washer
WELP650-4600
Repair Kit (12 Each)
13" Direct Mount Rim Shells

Part No. Size Bolt Circle Rear Spacing Bead-Loc
15" Beadlock Rings WEL860-30713 13" x 7" 5" x 9.750" 3.00" None
Part No. Description WEL860-30723 13" x 7" 5" x 9.750" 3.00" Bead Lock
WELP650-5275 15" 16-Hole Bolt-On Bead-Loc Ring (Slotted) WEL860-30714 13" x 7" 5" x 9.750" 4.00" None
WELP650B-5275 15" 16-Hole Bolt-On Bead-Loc Ring (Slotted), Black WEL860-30754 13" x 7" 5" x 9.750" 4.00" Bead Lock And Cover
15" Bolt-On Bead-Loc Ring WEL860-30813 13" x 8" 5" x 9.750" 3.00" None
WELP650-5314-6
With Dzus-On Flange (No Cover) WEL860-30823 13" x 8" 5" x 9.750" 3.00" Bead Lock
15" Bolt-On Bead-Loc Ring WEL860-30814 13" x 8" 5" x 9.750" 4.00" None
WELP650B-5314-6
With Dzus-On Flange (No Cover), Black WEL860-30854 13" x 8" 5" x 9.750" 4.00" Bead Lock And Cover
15" 16-Hole Bolt-On Bead-Loc Ring
WELP650-5315-6
With Dzus-On Mud Cover
15" 16-Hole Bolt-On Bead-Loc Ring
WELP650B-5315-6
With Dzus-On Mud Cover, Black
418
