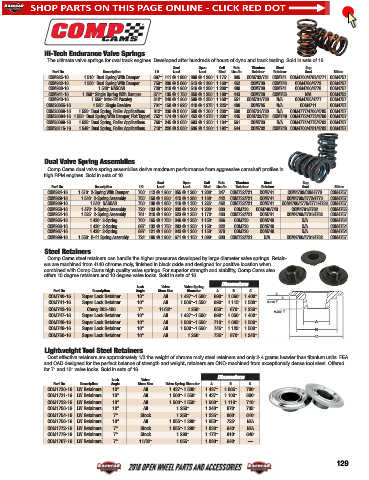

Page 130 - 2018 Racecar Engineering Open Wheel Parts and Accessories Catalog

Hi-Tech Endurance Valve Springs
The ultimate valve springs for oval track engines. Developed after hundreds of hours of dyno and track testing. Sold in sets of 16.
Seat Open Coil Rate Titanium Steel Cup
Part No. Description I.D. Load Load Bind Lbs./In. Retainer Retainer Seat Shims
COM925-16 1.510" Dual Spring With Damper .697" 111 @ 1.900" 388 @ 1.200" 1.175" 395 COM732/721 COM741 COM4700/4783/4771 COM4757
COM932-16 1.560" Dual Spring With Damper .750" 200 @ 2.000" 513 @ 1.300" 1.160" 452 COM738 COM748 COM4700/4772 COM4757
COM938-16 1.540" NASCAR .730" 210 @ 1.900" 516 @ 1.250" 1.200" 480 COM738 COM741 COM4700/4778 COM4757
COM941-16 1.260" Single Spring With Damper .871" 135 @ 1.750" 350 @ 1.250" 1.100" 443 COM728 COM750 N/A COM4753
COM943-16 1.550" Inter-Fit Pacaloy .812" 240 @ 1.900" 598 @ 1.250" 1.160" 551 COM731/720 N/A COM4785/4777 COM4757
COM26055-16 1.585" Single Beehive .731" 150 @ 1.925" 410 @ 1.275" 1.225" 400 COM785 N/A COM4711 COM4757
COM26089-16 1.550" Dual Spring, Roller Applications .812" 230 @ 2.000" 580 @ 1.300" 1.230" 500 COM731/720 N/A COM4777/4700/4785 COM4757
COM26094-16 1.550" Dual Spring With Damper, Flat Tappet .752" 174 @ 1.900" 452 @ 1.275" 1.200" 445 COM732/721 COM749 COM4772/4773/4700 COM4757
COM26099-16 1.625" Dual Spring, Roller Applications .769" 245 @ 2.050" 693 @ 1.250" 1.184" 561 COM733 N/A COM4774/4775/4702 COM4757
COM26115-16 1.549" Dual Spring, Roller Applications .719" 228 @ 2.050" 636 @ 1.300" 1.192" 544 COM732 COM748 COM4700/4781/4782 COM4757

Dual Valve Spring Assemblies
*VTW *HTZ K\HS ]HS]L ZWYPUN HZZLTISPLZ KLYP]L TH_PT\T WLYMVYTHUJL MYVT HNNYLZZP]L JHTZOHM[ WYVÄSLZ PU
high RPM engines. Sold in sets of 16.
Seat Open Coil Rate Titanium Steel Cup
Part No. Description I.D. Load Load Bind Lbs./In. Retainer Retainer Seat Shims
COM924-16 1.510" 2-Spring With Damper .700" 112 @ 1.900" 355 @ 1.200" 1.200" 347 COM732/721 COM741 COM4700/COM4770 COM4757
COM929-16 1.540" 2-Spring Assembly .755" 150 @ 1.880" 415 @ 1.280" 1.180" 442 COM732/721 COM741 COM4700/4772/4773 COM4757
COM939-16 1.540" NASCAR .700" 138 @ 1.950" 419 @ 1.350" 1.225" 462 COM732/721 COM741 COM4700/4770/4771/4783 COM4757
COM950-16 1.470" 2-Spring Assembly .720" 133 @ 1.900" 332 @ 1.300" 1.200" 333 COM730 COM740/743 COM4781/4782 COM4755
COM954-16 1.525" 2-Spring Assembly .761" 210 @ 1.900" 523 @ 1.250" 1.178" 483 COM732/721 COM741 COM4700/4781/4782 COM4757
COM985-16 1.430" 2-Spring .700" 165 @ 1.750" 346 @ 1.250" 1.150" 366 COM730 COM740 N/A COM4754
COM986-16 1.430" 2-Spring .697" 132 @ 1.750" 293 @ 1.250" 1.150" 322 COM730 COM740 N/A COM4754
COM987-16 1.430" 2-Spring .697" 121 @ 1.800" 343 @ 1.200" 1.150" 370 COM730 COM740 N/A COM4754
COM999-16 1.550" H-11 Spring Assembly .724" 196 @ 1.900" 671 @ 1.150" 1.090" 633 COM732/721 N/A COM4700/4781/4782 COM4757

Steel Retainers
Comp Cams steel retainers can handle the higher pressures developed by large diameter valve springs. Retain-
LYZ HYL THJOPULK MYVT JOYVTL TVS` ÄUPZOLK PU ISHJR V_PKL HUK KLZPNULK MVY WVZP[P]L SVJH[PVU ^OLU
JVTIPULK ^P[O *VTW *HTZ OPNO X\HSP[` ]HS]L ZWYPUNZ -VY Z\WLYPVY Z[YLUN[O HUK Z[HIPSP[` *VTW *HTZ HSZV
VɈLYZ KLNYLL YL[HPULYZ HUK KLNYLL ]HS]L SVJRZ :VSK PU ZL[Z VM
Dimensions
Lock Valve Valve Spring
Part No. Description Angle Stem Size Diameter A B C
COM740-16 Super Lock Retainer 10° All 1.437"-1.500" .690" 1.060" 1.400"
COM741-16 Super Lock Retainer 10° All 1.500"-1.550" .690" 1.115" 1.500"
COM742-16 Chevy 283-400 7° 11/32" 1.250" .650" .870" 1.230"
COM747-16 Super Lock Retainer 10° All 1.437"-1.500" .690" 1.050" 1.400"
COM748-16 Super Lock Retainer 10° All 1.500"-1.550" .710" 1.095" 1.500"
COM749-16 Super Lock Retainer 10° All 1.500"-1.550" .745" 1.125" 1.500"
COM750-16 Super Lock Retainer 10° All 1.250" .735" .870" 1.240"

Lightweight Tool Steel Retainers
*VZ[ LɈLJ[P]L YL[HPULYZ HYL HWWYV_PTH[LS` [OL ^LPNO[ VM JOYVTL TVS` Z[LLS YL[HPULYZ HUK VUS` NYHTZ OLH]PLY [OHU [P[HUP\T \UP[Z -,(
HUK *(+ KLZPNULK MVY [OL WLYMLJ[ IHSHUJL VM Z[YLUN[O HUK ^LPNO[ YL[HPULYZ HYL *5* THJOPULK MYVT L_JLW[PVUHSS` KLUZL [VVS Z[LLS 6ɈLYLK
for 7° and 10° valve locks. Sold in sets of 16.
Dimensions
Lock Valve
Part No. Description Angle Stem Size Valve Spring Diameter A B C
COM1730-16 LW Retainers 10° All 1.437"-1.500" 1.437" 1.065" .700"
COM1731-16 LW Retainers 10° All 1.500"-1.550" 1.437" 1.100" .800"
COM1732-16 LW Retainers 10° All 1.500"-1.550" 1.500" 1.110" .710"
COM1750-16 LW Retainers 10° All 1.250" 1.240" .870" .735"
COM1754-16 LW Retainers 7° Stock 1.250" 1.235" .860" .610"
COM1756-16 LW Retainers 10° All 1.055"-1.290" 1.050" .725" N/A
COM1772-16 LW Retainers 7° Stock 1.055"-1.290" 1.030" .640" N/A
COM1779-16 LW Retainers 7° Stock 1.290" 1.172" .910" .646"
COM1787-16 LW Retainers 7° 11/32" 1.055" 1.030" .640" —
