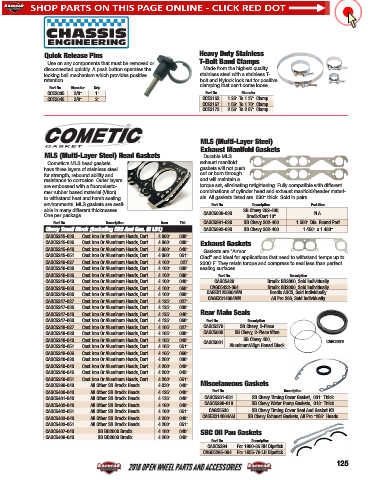

Page 126 - 2018 Racecar Engineering Open Wheel Parts and Accessories Catalog

Quick Release Pins Heavy Duty Stain less
Use on any components that must be removed or T-Bolt Band Clamps
disconnected quickly. A push button operates the Made from the highest quality
locking ball mechanism which provides positive stain less steel with a stainless T-
retention. bolt and Nylock lock nut for positive
clamping that can’t come loose.
Part No. Diameter Grip
CCE2035 3/8" 1" Part No. Diameter
CCE2045 3/8" 2" CCE2152 1.25" To 1.37" Clamp
CCE2157 1.56" To 1.70" Clamp
CCE2173 2.56" To 2.87" Clamp

MLS (Multi-Layer Steel)
Exhaust Manifold Gaskets
MLS (Multi-Layer Steel) Head Gaskets Durable MLS
Cometic’s MLS head gaskets exhaust manifold
have three layers of stainless steel gaskets will not push
for strength, rebound ability and out or burn through
resistance to corrosion. Outer layers and will maintain a
HYL LTIVZZLK ^P[O H Å\VYVLSHZ[V- [VYX\L ZL[ LSPTPUH[PUN YL[PNO[LUPUN -\SS` JVTWH[PISL ^P[O KPɈLYLU[
mer rubber based material (Viton) combinations of cylinder head and exhaust manifold/header materi-
to withstand heat and harsh sealing als. All gaskets listed are .030" thick. Sold in pairs.
environments. MLS gaskets are avail- Part No. Description Port Size
HISL PU THU` KPɈLYLU[ [OPJRULZZLZ SB Chevy 262-400,
One per package. CAGC5039-030 Brodix/Dart 13° N.A.
Part No. Description Bore Thk. CAGC5891-030 SB Chevy 262-400 1.500" Dia. Round Port
Chevy Small Block (Including SB2 And Gen. III LS1) CAGC5892-030 SB Chevy 262-400 1.450" x 1.480"
CAGC5245-030 Cast Iron Or Aluminum Heads, Dart 4.060" .030"
CAGC5245-036 Cast Iron Or Aluminum Heads, Dart 4.060" .036" Exhaust Gaskets
CAGC5245-040 Cast Iron Or Aluminum Heads, Dart 4.060" .040"
.HZRL[Z HYL ¸(YTVY
CAGC5245-051 Cast Iron Or Aluminum Heads, Dart 4.060" .051" *SHK¹ HUK PKLHS MVY HWWSPJH[PVUZ [OH[ ULLK [V ^P[OZ[HUK [LTWZ \W [V
CAGC5246-027 Cast Iron Or Aluminum Heads, Dart 4.100" .027 2000°F. They retain torque and compress to seal less than perfect
CAGC5246-030 Cast Iron Or Aluminum Heads, Dart 4.100" .030" sealing surfaces.
CAGC5246-036 Cast Iron Or Aluminum Heads, Dart 4.100" .036" Part No. Description
CAGC5246-040 Cast Iron Or Aluminum Heads, Dart 4.100" .040" CAGC5420 Brodix BD2000, Sold Individually
CAGC5246-060 Cast Iron Or Aluminum Heads, Dart 4.100" .060" CAGC5422-064 Brodix GB2000, Sold Individually
CAGC5246-080 Cast Iron Or Aluminum Heads, Dart 4.100" .080" CAGEX1256064AM Brodix ASCS, Sold Individually
CAGEX314064AM All Pro 286, Sold Individually
CAGC5247-027 Cast Iron Or Aluminum Heads, Dart 4.125" .027"
CAGC5247-030 Cast Iron Or Aluminum Heads, Dart 4.125" .030"
CAGC5247-040 Cast Iron Or Aluminum Heads, Dart 4.125" .040" Rear Main Seals
CAGC5247-060 Cast Iron Or Aluminum Heads, Dart 4.125" .060" Part No. Description
CAGC5248-027 Cast Iron Or Aluminum Heads, Dart 4.165" .027" CAGC5379 SB Chevy, 2-Piece
CAGC5248-030 Cast Iron Or Aluminum Heads, Dart 4.165" .030" CAGC5680 SB Chevy, 2-Piece Viton
CAGC5248-040 Cast Iron Or Aluminum Heads, Dart 4.165" .040" CAGC5681 SB Chevy 400, CAGC5379
CAGC5248-051 Cast Iron Or Aluminum Heads, Dart 4.165" .051" Aluminum/Align Honed Block
CAGC5248-066 Cast Iron Or Aluminum Heads, Dart 4.165" .066"
CAGC5249-030 Cast Iron Or Aluminum Heads, Dart 4.200" .030"
CAGC5249-040 Cast Iron Or Aluminum Heads, Dart 4.200" .040"
CAGC5249-045 Cast Iron Or Aluminum Heads, Dart 4.200" .045"
CAGC5249-051 Cast Iron Or Aluminum Heads, Dart 4.200" .051"
CAGC5399-040 All Other SB Brodix Heads 4.030" .040" Miscelaneous Gaskets
CAGC5400-040 All Other SB Brodix Heads 4.125" .040" Part No. Description
CAGC5401-040 All Other SB Brodix Heads 4.135" .040" CAGC5261-031 SB Chevy Timing Cover Gasket, .031" Thick
CAGC5402-040 All Other SB Brodix Heads 4.160" .040" CAGC5299-018 SB Chevy Water Pump Gaskets, .018" Thick
CAGC5402-051 All Other SB Brodix Heads 4.160" .051" CAGC5530 SB Chevy Timing Cover Seal And Gasket Kit
CAGC5403-040 All Other SB Brodix Heads 4.200" .040" CAGEX314064AM SB Chevy Exhaust Gaskets, All Pro “286" Heads
CAGC5403-051 All Other SB Brodix Heads 4.200" .051"
CAGC5407-040 SB BD2000 Brodix 4.160" .040" SBC Oil Pan Gaskets
CAGC5408-040 SB BD2000 Brodix 4.200" .040"
Part No. Description
CAGC5294 For 1980-85 RH Dipstick
CAGC5295-094 For 1955-79 LH Dipstick
125
