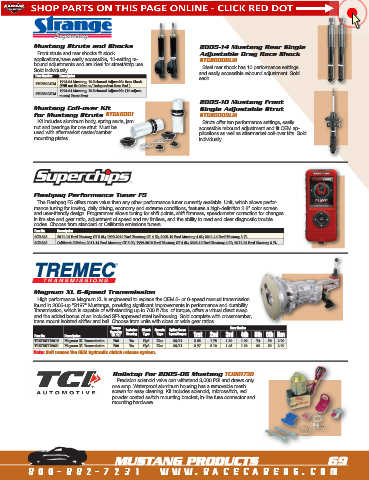

Page 70 - 2018 Racecar Engineering Late-Model Muscle Car Parts and Accessories Catalog

Mustang Struts and Shocks 2005-14 Mustang Rear Single
Front struts and rear shocks fit stock Adjustable Drag Race Shock
applications,have easily accessible, 10-setting re- STGS6008LM
bound adjustments and are ideal for street/strip use.
Sold individually. Steel rear shock has 10 performance settings
and easily accessible rebound adjustment. Sold
Part Number Description
1994-04 Mustang, 10-Rebound Adjustable Rear Shock each.
STGS6004LM
(Will not fit Cobra w/ Independent Rear End.)
1994-04 Mustang, 10-Rebound Adjustable (10 adjust-
STGS6005LM ments) Front Strut
2005-10 Mustang Front
Mustang Coil-over Kit Single Adjustable Strut
for Mustang Struts STGS6001S6001 STGS6009LM
Kit includes aluminum body, spring seats, jam ats, jam Struts offer ten performance settings, easily
nut and bearings for one strut. Must be accessible rebound adjustment and fit OEM ap-
used with aftermarket caster/camber plications as well as aftermarket coil-over kits. Sold
mounting plates. individually.

Flashpaq Performance Tuner F5
The Flashpaq F5 offers more value than any other performance tuner currently available. Unit, which allows perfor-
mance tuning for towing, daily driving, economy and extreme conditions, features a high-definition 2.8" color screen
and user-friendly design. Programmer allows tuning for shift points, shift firmness, speedometer correction for changes
in tire size and gear ratio, adjustment of speed and rev limiters, and the ability to read and clear diagnostic trouble
codes. Choose from standard or California emissions tuners.
Part No. Description
SCI1845 2011-14 Ford Mustang GT 5.0L; 1999-2010 Ford Mustang GT 4.6L; 2005-10 Ford Mustang 4.0L; 2011-14 Ford Mustang 3.7L
SCI4845 California Edition; 2011-14 Ford Mustang GT 5.0L; 1999-2010 Ford Mustang GT 4.6L; 2005-10 Ford Mustang 4.0L; 2011-14 Ford Mustang 3.7L

Magnum XL 6-Speed Transmission
High performance Magnum XL is engineered to replace the OEM 5- or 6-speed manual transmission
found in 2005-up "S197" Mustangs, providing significant improvements in performance and durability.
Transmission, which is capable of withstanding up to 700 ft./lbs. of torque, offers a virtual direct swap
and the added bonus of an included SFI-approved steel bellhousing. Sold complete with crossmember,
trans mount isolated shifter and ball. Choose from units with close or wide gear ratios.
Torque Gear Ratios
Capacity Includes Clutch Speedo Spline Count
Type
Type
Housing
Input/Output
Part No. Description (lb. ft.) 1rst 2nd 3rd 4th 5th 6th Rev
TRETUKT12019 Magnum XL Transmission 700 Yes Hyd Elec 26/31 2.66 1.78 1.30 1.00 .74 .50 2.90
TRETUKT12021 Magnum XL Transmission 700 Yes Hyd Elec 26/31 2.97 2.10 1.46 1.00 .80 .63 2.90
Note: Unit reuses the OEM hydraulic clutch release system.
Rollstop For 2005-06 Mustang TCI861730
Precision solenoid valve can withstand 3,000 PSI and draws only
one amp. Waterproof aluminum housing has a removable mesh
screen for easy cleaning. Kit includes solenoid, microswitch, red
powder coated switch mounting bracket, in-line fuse connector and
mounting hardware.

MUSTANG PRODUCTS 69
