GDS-II (Stream)

Previous pageReturn to chapter overviewNext page

Import GDS-II options.

bar_dot

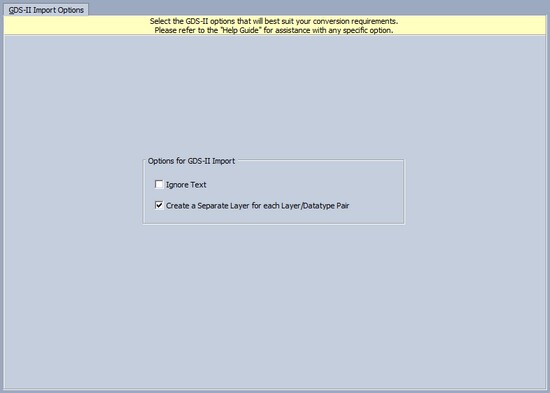

Import GDSII (Stream) Options:



clip0011

Ignore Text:



Skip GDSII text.  It will not appear on exported files.

Separate Layer for DataTypes:

If an GDSII file contains identical layers but different datatypes, a separate layer will be created for each layer/datatype pair.
