Import Gerber options.
Note: ACE can handle Extended Gerber file formats like: RS-274X, Fire9000. ACE can also import older gerber files in RS-274D (non-extended format) however an aperture list is required. The aperture list can be manually entered before importing the RS-274D gerbers by going to the ACE Aperture Table ; or use ACE Translator's cool feature called Aperture Rule Wizard which uses a template based detection system to automatically read-in most aperture lists.

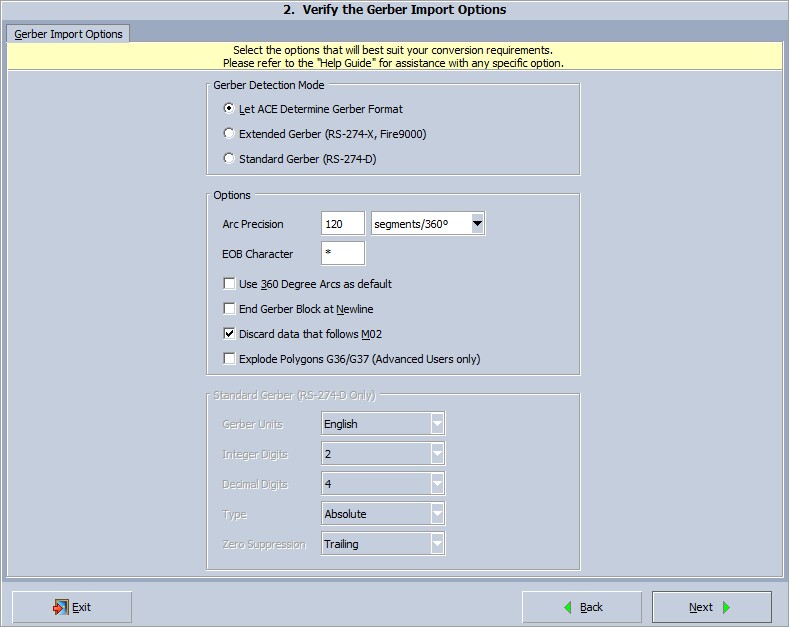

Import Gerber Options:
Units: |
Imported Gerber units of English or Metric. (Only needed for RS-274D Gerber files Only.) |
Integer Digits: |
Imported Gerber integer digits - between 1 and 6. (Only needed for RS-274D Gerber files Only.) |
Decimal Digits: |
Imported Gerber decimal digits - between 1 and 6. (Only needed for RS-274D Gerber files Only.) |
Type: |
Imported Gerber type - either Absolute or Incremental. (Only needed for RS-274D Gerber files Only.) |
Zero Suppression: |
Imported Gerber Zero Suppression - choose from Trailing, Leading, or None. (Only needed for RS-274D Gerber files Only.) |
Use 360 Degree Arcs as default: |
Read gerbers using 360 degree arcs mode as a default. |
End Gerber Block at Newline: |
Treat newline characters as an end of gerber block. |
End of Gerber Block Character: |
Character to for ending Gerber blocks. Usually an asterisk '*'. |
Arc Deviation (mil): |
Accuracy used when importing gerber arcs. |
