Tube Lasers Cutting Systems

Capabilities

The product images shown are for illustration purposes only and may not be an exact representation of the product. Gulf States Saw & Machinery Co., Inc. reserves the right to change product images and specifications at any time without notice.

The CO2 solution for large diameter tubes and profiles.Tubes up to Ø 14" / 24" (355 mm / 610 mm)3D cutting modeCO2 laser

Tube Laser Cutting Systems 60w —

Some things aren’t quite as evident until you take a closer look at a fiber laser in operation. Because its beam diameter is often one-third the size of a CO2 beam, a fiber laser has a greater power density than a CO2 laser beam. Not only does this allow the fiber to cut faster, but it also allows it to pierce faster. This smaller beam size also gives the fiber the ability to cut intricate shapes and leave sharp edges. Imagine cutting a company logo out of a tube when the spacing between the logo’s letters is 0.035 inch; a fiber can make that cut, while a CO2 laser can’t.

These machines have a rock-solid cutting platform (the SL uses a minerals cast base) and offer unparalleled precision. Contoured cutting accuracy is better than +/-5um. The choice between a fiber laser and the new Monaco USP allows fine cutting of any kind of metal or polymer.

Barcode

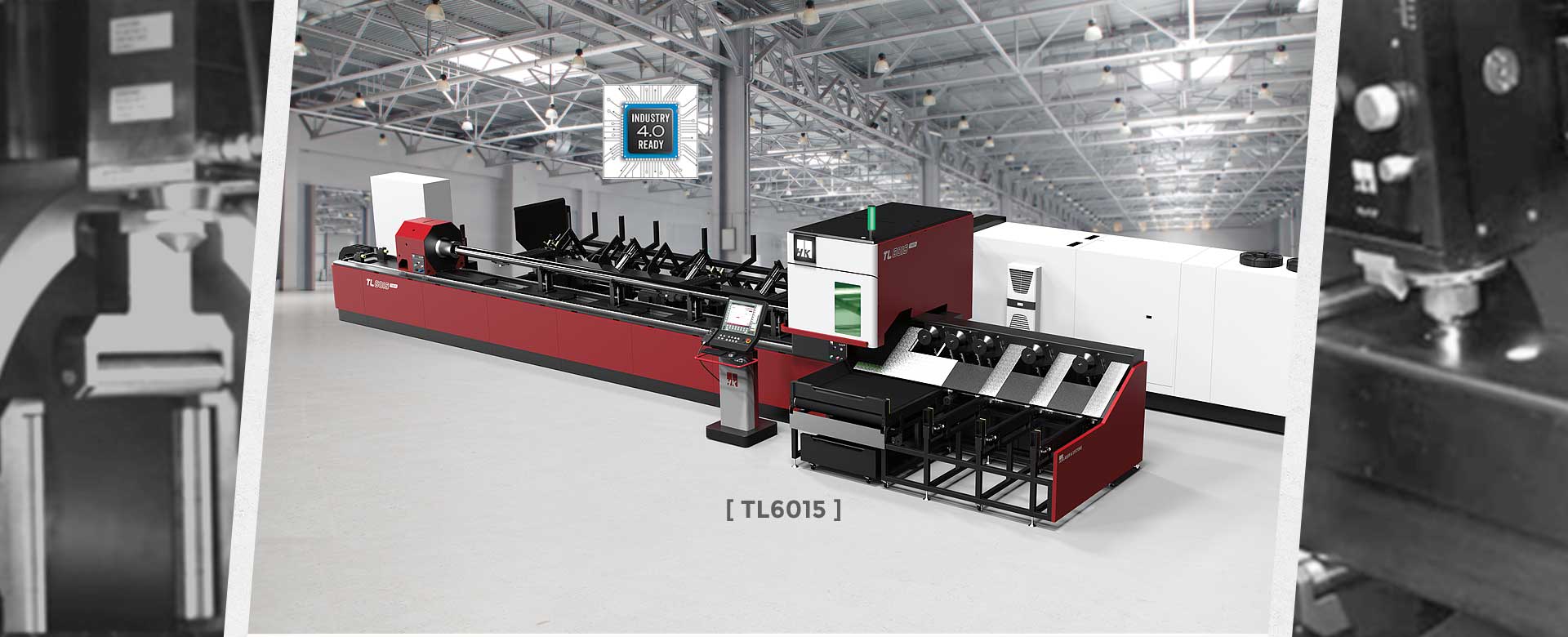

Tubes, profiles and systems are everywhere. They're used for everything from mechanical engineering to system construction to furniture making. With the new possibilities that lasers present, designers are increasingly taking advantage of laser-cut tubes or profiles. This has led to a substantial increase in demand. TruLaser Tube machines are a complete solution for laser tube cutting.

The images of product are used for illustration purposes only. They may not represent the exact product. Gulf States Saw & Machinery Co., Inc. reserves every right to make changes to product specifications and images without prior notice.

Barcode

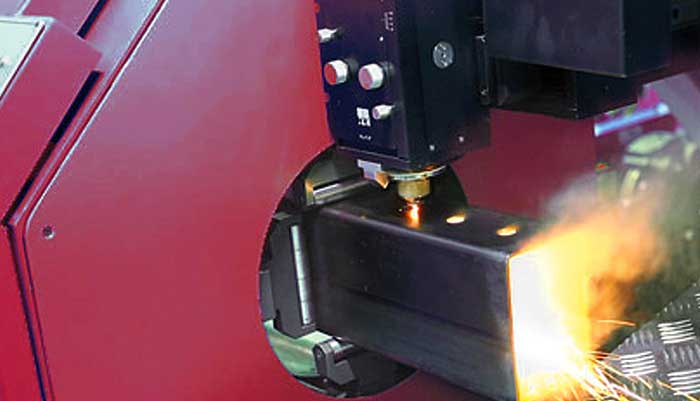

Tube Laser Cutting Systems Explained

Tube Laser Cutting Systems Explained

StarCut Tube is a tube-cutting laser machine that offers precision up to +/- 5um.

Gulf States Saw & Machinery Co., Inc. can provide a variety of fabrication solutions for processing tubes, pipes, or structural steel. The tube lasers of Gulf States Saw & Machinery Co., Inc. offer superior laser-cutting technology, but many include additional processing functions that provide value-added benefits to fabricators.

Large Diameter Tubes

TruLaser Tube3000 fiber: The laser tube-cutting machine that is worth the investment is the TruLaser 3000. This is an economical and reliable laser tube cutter. This machine is great for both first-time users and as an add-on.

Even for XXL tubes, this machine is designed for maximum productivity. This machine is robust and solid-state laser capable of processing tubes and profiles of a wide variety of materials and wall thicknesses.

How do you test a laser tube
How do you test a laser tube

The other factor to keep in mind is that the traditional method of checking for bows and twists in the tube can take up to five or seven seconds before cutting commences. With the traditional means of touch sensing, you have to trade productivity for accuracy. Again, in the age of fiber laser cutting, this can seem like a lifetime, but working with tube is not as simple as working with sheet metal.

Motion Dynamics is a major manufacturer of neurological sub-assemblies. They include steerable catheters as well as "pull wire" assemblies. Our StarCut Tube machines are used to precision cut key components.

Tube Lasers Cutting Systems 101

Motion Dynamics is a leader in the manufacture of neuro-sub-assemblies. This includes steerable catheters, "pull-wire" assemblies and other neurological components. We use our StarCut Tube machines to precisely cut key components.

Tubes are very simple and do not require a powerful laser. Tube laser cutting machines require only 5 kW power, whereas flat sheet laser cutters can be powered by laser generators up to 12 kW. When cutting a tube, it is important to always think about the other side. A stronger laser would simply blow through the tube on the opposite side during cutting. You don't need to worry about the other side if you're processing a beam of a channel or a channel using the tube laser.

Frequently Asked Questions

Maximum material cutting thicknesses by 1000W fiber laser cutting machine: Carbon steel has a maximum thickness of 10mm; stainless steel has a maximum thickness of 5mm; aluminum plate has a maximum thickness of 3mm; and copper plate has a maximum thickness of 3mm.

Pipe and tubing Cutting Procedures:

Rotate the pipe cutter around. Tighten the cutter slightly and rotate it around the pipe several times. Repeat until the pipe is severed by the blade. Steel pipe can be cut with a hacksaw, reciprocating saw, or steel-pipe tubing cutter.

Laser tube cutting is a method and technique for cutting tubes, structural shapes, or channels. These items will be cut to the required length during the process. It can also make holes or designs in tubing. It is a precise cutting method. It can also be used on a variety of materials in a variety of shapes and sizes.
