Exercise 3.1 Adding a Transformer
Data 3-1-1 case location details (XLS hosted on the web)
Overall Goal Add a transformer to filter out missing values
Calculate a new attribute
Demonstrates Adding a transformer
Setting transformer parameters
Filtering
Start Workspace C:\FMEData2019\Workspaces\IntroToDesktop\Ex3.1-Begin.fmw
End Workspace C:\FMEData2019\Workspaces\IntroToDesktop\Ex3.1-Complete.fmw
C:\FMEData2019\Workspaces\IntroToDesktop\Ex3.1-Complete-Advanced.fmw

We know from the last unit that we have missing values in our data. We can use a filtering transformer to remove features with missing values.

1) Start FME Workbench

Start FME Workbench (if necessary) and open the workspace from Exercise 2.4. Alternatively you can open C:\FMEData2019\Workspaces\IntroToDesktop\Ex3.1-Begin.fmw.

2) Add Tester Transformer

Click a blank spot on the canvas. Start to type the phrase "Tester." When the list is short enough for you to see the Tester, select it from the dialog (double-click on it):

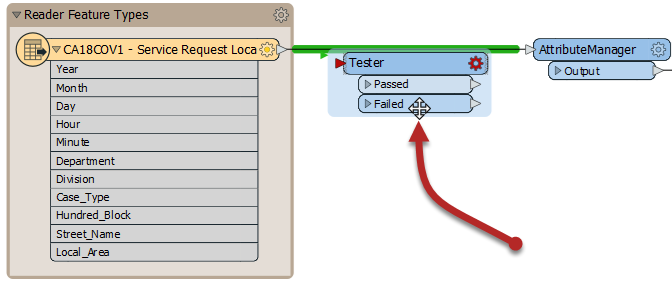

Doing so will place a Tester transformer. Click and drag the Tester to move it near the feature connection line between the reader feature type and the AttributeManager. As you do so, notice that a small green arrow appears on the left of the Tester. Drag until this arrow is over the feature connection line:

Once the feature connection line is highlighted, let go of your click to connect the Tester:

3) Set Tester Parameters

Inspect the parameters for the Tester transformer (either its dialog or in the Parameter Editor window). Click in the Left Value field and from there click the down arrow and choose Attribute Value > Local_Area:

For the Operator field click the cell and select "Attribute Has a Value." We do not need to fill in the Logic or Right Value field for this operator. Your Test Clauses table should look like this:

There might be missing values in other attributes, but we are only concerned with cases where Local_Area is missing, so we will only fill in one test clause.

Click OK to accept the values and close the dialog.


FME Lizard says...

You could also accomplish this procedure with the NullAttributeValueMapper. In FME there is usually more than one way to solve your problem.


4) Run the Workspace using Feature Caching

Now that you know how to use feature caching, we can use it to test our new transformer. Select the Tester transformer. Then click the "Run To This" icon (note that the objects that will run are highlighted in green):

This section of your workspace will run. If you set up the Tester properly, it should do so without errors. If you pay attention while the translation is running, you can see the feature counts increasing as features flow through the workspace. By the time the translation is complete, 4,122 features will be filtered out to the Tester's Failed port. These features did not have values for Local_Area and are removed from the rest of the translation.

5) Explore the Text Editor

In Exercise 2.4 we added a Date attribute, but it does not have any values yet. Open the AttributeManager to inspect its parameters and we'll explore one way of creating attribute values.

You can enter in the value for our Date attribute in the Attribute Value column. If you were to type in "January 1st, 2000," all of the features would receive that value as a constant. However, what we want to do is create a date attribute that combines (or "concatenates") our existing date-time fields: Year, Month, Day, Hour, and Minute.

We can do that using FME's Text Editor, which allows us to construct an expression to generate the value for our attribute. To open it, click the Attribute Value cell for Date, and then click the drop-down arrow that appears. You will see "Open Text Editor" and "Open Arithmetic Editor" as options. Click "Open Text Editor":

The text editor - as you would expect - allows you to construct a text value. It includes all the usual string-handling functionality you would need, such as concatenation, trimming, padding, and case changing.

The text editor looks like this:

The FME Feature Types dropdown on the left-hand side lists existing attributes, which can be added to the string by double-clicking them.

Also, notice the other menu options. The essential functions for text are the String Functions:

The Arithmetic Editor contains similar functions, as well as mathematical operators to calculate values for attributes.

6) Create Values for Date Attribute

Let's combine existing attributes to give Date some values. In the left-hand panel you should see a heading "FME Feature Attributes." You can click the arrow to expand this list and see all incoming attributes:

Double-click the attribute Year. Doing so adds @Value(Year) to the Text Editor window. When the translation runs, this code will take the value of Year for each feature. We can combine multiple attribute values to construct the date. In this case, we will create a basic year/month/day attribute, but you could use the Text Editor to format your date however you like.

Type in a forward-slash / and then double-click the attribute Month, type in another /, and then double-click the attribute Day. You should see this in the Text Editor:

Alternatively, you can copy and paste the following into the Text Editor:

@Value(Year)/@Value(Month)/@Value(Day)

Click OK and OK again. Save your workspace. Then, use Run To This on the AttributeManager.


FME Lizard says...
Many FME Text and Arithmetic Editor functions come from the Tcl programming language. If you do not want to type out the code, all results can also be accomplished by using the Text or Arithmetic Editor functions. For more information, refer to the Documentation.

7) Inspect the Data

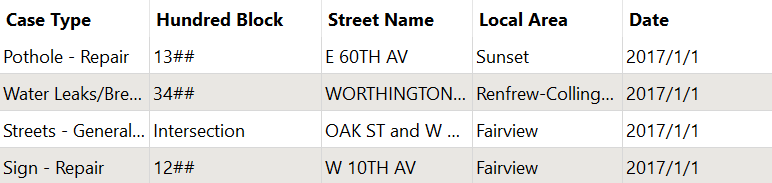

Inspect the AttributeManager feature cache and examine the Table View window. You can see that the underscores have been removed from attribute names and the Date attribute now correctly displays the full date/time in FME standard format:


Advanced Exercise

If you want to use a more realistic - but also more complicated - example, you can generate a standard FME date/time stamp. To do so, copy and paste the following code into the Text Editor:
@TimeZoneSet(@Format(%04d,@Value(Year))@Format(%02d,@Value(Month))@Format(%02d,@Value(Day))@Format(%02d,@Value(Hour))@Format(%02d,@Value(Minute))00, local)

The details aren't important here, but if you want them, read on. We used the @TimeZoneSet function to add a UTC offset to each date/time stamp. We formed the date/time stamp by combining the attributes from our source data into a string matching FME date/time format: yyyymmddhhss-UTC. Our original data had single digit months, days, hours, and minutes missing the leading zero, so we used the @Format function to fix that problem. This new attribute will be easy to use in FME workflows with Date-Time transformers.


CONGRATULATIONS
By completing this exercise, you have learned how to:
  • Filter data using the Tester transformer
  • Use transformer parameters to create attributes that match the writer schema
  • Construct an attribute value using the Text Editor
