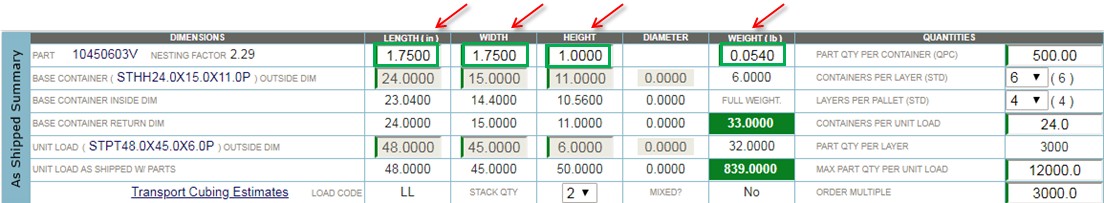

To define the part dimensions:

1. Measure the part utilizing the How to Measure instructions.
2. Record the dimensions in the PDS.



3. Click Save to store the dimensions for this part.
4. Proceed to the next step. See Update As Shipped Summary.
