Design Ideas
Furniture Cabinets

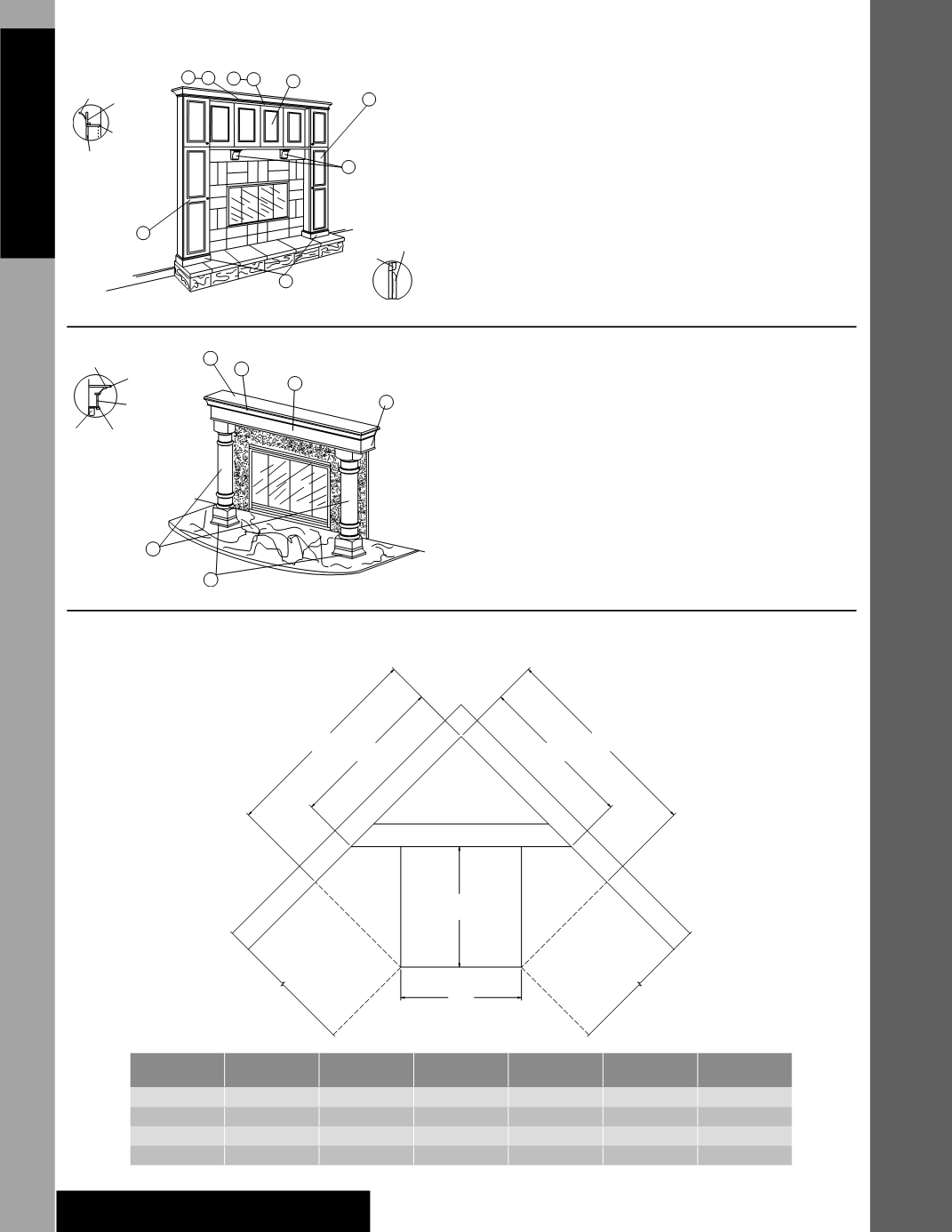

Hearth Design Idea 5
1. Utility Cabinet (Wide Rail Plain; Furniture Plywood Ends; Reduced Depth to 6˝)
2. Wall Hood Mantle Matching
3. Cove Corbel
4. Large Starter Molding
5. Large Cove Molding
6. Furniture Shelf
7. Single Bead Edge
8. Cove Base Board
3
1
5 4
7 6
8
2
1
Large Cove
Molding
Furniture
Shelf
Large
Starter
Molding
Utility
Cabinet
6˝
Wall
Hood
Mantel Matching
Door
Cove
Base
Board
Hearth Design Idea 6
1. Wood Top
2. Large Cove Molding
3. Solid Stock
4. Roman Spindles
5. Small Cove Light Rail
6. Large Cove Molding (inverted)
3
1
4
2
6
5
Large Cove
Molding
Wood
Top
Small Cove
Light Rail
Solid Stock
Roman
Spindle
Diagonal
Installation
of Standard Furniture Cabinets
D
C
D
C
B
A
Optional Wall
Cabinet Width “A”
Cabinet Width “B” Wall Dimensions “C” Wall Dimensions “D” Cabinet Depth “B” Wall Dimensions “C” Wall Dimensions “D”
18”
12”
20 ⅜”
25 ⅜”
18”
23 ¼”
30 ¾”
24”
12”
24 ⅝”
29 ⅝”
18”
27 ½”
35”
30”
12”
28 ⅞”
33 ⅞”
18”
31 ¾”
39 ¼”
36”
12”
33 ⅛”
38 ⅛”
18”
36”
43 ½”
