Wall Hoods
Wall Cabinets

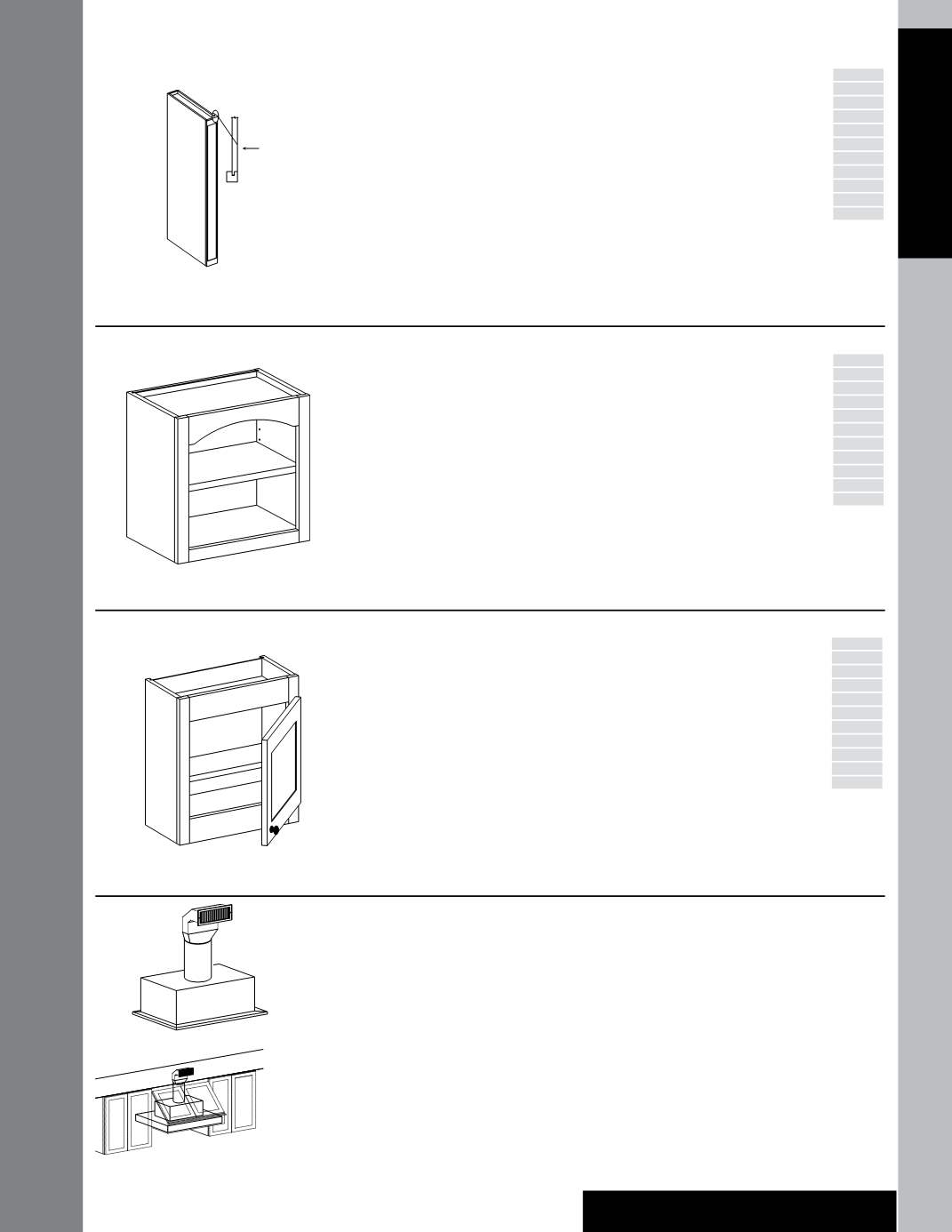

Wall Hood Mantle Column–Sterling
19” High
STWC31819
STWC32119
25” High
STWC31825
STWC32125
31 1/2” High
STWC31831
STWC32131
• Front is 3/4˝ solid wood
• Available in Cherry, EverCore™, Maple, Rustic
Alder and Woodgrain Laminate door styles
only
• Painted hardwood supplied for EverCore™
• Painted hardwood supplied for Woodgrain
Laminate door styles; only available in white
• Finished front and both sides
• Reversible, may be used on either right or left
end
I
APFC standard when APC option is selected
PE
l
APC
I
APFC
v
FPEB
MI
DE
l
RD
l
ID
XS
XSG
GD
19˝
25˝
31
½
˝
18˝, 21˝
¾˝
¾˝
3˝
1
½
˝
1
½
˝
Under Cabinet Open Storage
Specify R or L
UCOS120918
UCOS150918
UCOS180918
UCOS121218
UCOS151218
UCOS181218
• Consult your local building code to
determine the amount of space required
between the cooking surface and the Under
Cabinet Storage cabinets for commercial
applications
•
Not
available in Morrisbrook Oak Square
I
APFC standard when APC option is selected
• Painted hardwood supplied for EverCore™
and Laminate
PE
l
APC
I
APFC
v
FPEB
v
MI
DE
RD
ID
XS
XSG
GD
18˝
9˝, 12˝
Under Cabinet Door Storage
UCDS150918 R or L
UCDS180918 R or L
UCDS210918 R or L
UCDS151218 R or L
UCDS181218 R or L
UCDS211218 R or L
• One adjustable shelf
• Top and bottom rails are 3˝ high allowing for
molding application
• Refer to the appliance manufacturer’s
specifications for clearance between the
Under Cabinet Storage cabinets and the
cooking surface for residential applications
• Consult your local building code to
determine the amount of space required
between the cooking surface and the Under
Cabinet Storage cabinets for commercial applications
• If ordered in an arched door style, it will be supplied
square
• Laminates are painted hardwood
•
Not
available in Morrisbrook Oak Square
I
APFC standard when APC option is selected
PE
l
APC
I
APFC
v
FPEB
l
MI
DE
l
RD
ID
XS
XSG
l
GD
18˝
9˝, 12˝
Wall Hood Component Package (A, B & C)–Recirculating
Package “A”
RHCP30 R •SN
RHCP36 R •SN
Package “B”
CRHCP30 R •SN
CRHCP36 R •SN
Package “C”
PRHCP30 R •SN
PRHCP36 R •SN
• This unit includes a satin nickel colored metal liner, and an
easy to clean aluminum mesh filter. This is powered by a
390 CFM squirrel cage fan and has push button controls.
This unit comes with two feet of 7” round ductwork, a 90°
elbow, charcoal filter and grille with white vent
• Requires a 50 watt, 120 volt halogen lamp (MR16 GU10
base) which are available at hardware or lighting retailers
8
10 / ˝
23
¾˝
½˝
Example of installation when soffit is present
Soffit
