WOE_1
BOE
VOE
TOE
WOE_2
C22

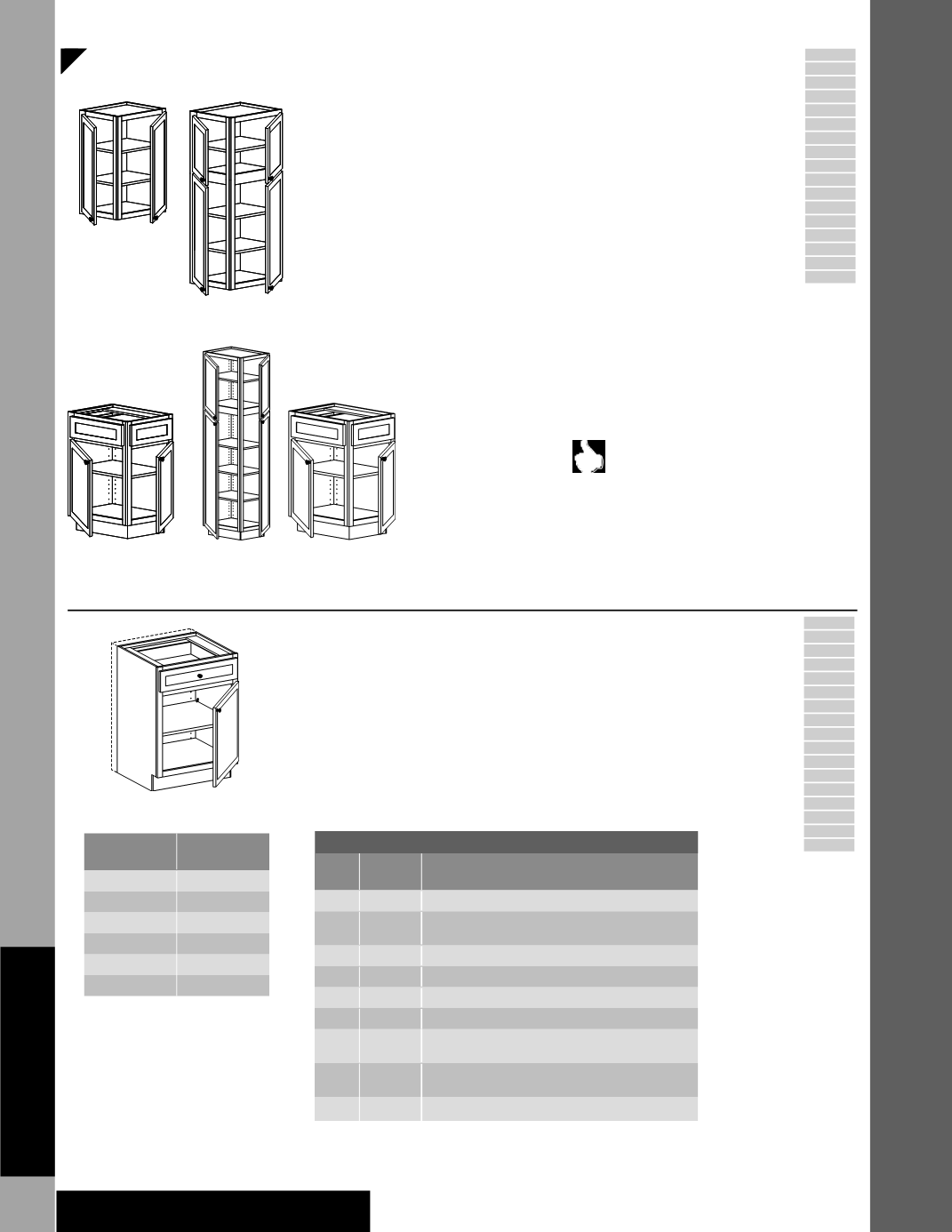

Construction Options
Specifications and Options
Operational End
Base
BOE R or L
BOE B
Tall
TOE R or L
Vanity
VOE R or L
VOE B
Wall
12”-33” H
WOE R or L•1
WOE B•1
36-54” H
WOE R or L•2
WOE B•2
• Operational End (OE) will be attached to
2 1/2” frame stiles
•
Not
available on both ends of Tall cabinets
• Stacking configuration of Operational End
(OE) will mimic the face of the selected
cabinet; BUTT doors are
not
provided, single
hinged door only
• Recessed Toe Kick (RTK) is standard on Base,
Tall and Vanity cabinets
• If Wide Rail (WR) is selected, the side and
front will have a wide rail
• Matching Interior (MI) is
not
standard but
can be added as an option
•
Not
available on Peninsula cabinets,
Wine Cabinets, Lattice Cabinets, Tambour Cabinets,
Appliance Cabinets with Appliance Opening or
Cabinets containing Rollout Trays (ROT)
• Operational End (OE) is
not
available with Increased
Depth (ID) or Reduced Depth (RD) options
• Wall Operational End - Both (WOE.B) should only be
used on wall cabinets that are planned to be supported
from underneath, placed on a floor or placed on a
counter top. Wall cabinets are
not
intended to be
installed independently without additional support
Whisper Touch Angle Restrictor Clips
(WTHARC) are recommended for additional
decorative hardware clearance
PE
APC
APFC
FPEB
MI
DE
l
OE
RD
ID
IF
TWR
WR
XS
XSG
GD
RTK
RTKP
New
Grey color coding indicates new product, size or code.
Reduced Depth
One Dimension
RD
• Many cabinets can be reduced to your
desired depth in 1/16” increments. We do
have suggested minimums that control
function of cabinets. See chart
• Any cabinet reduced in depth to less than
4 5/8” will be shipped as a Cabinet Front
Only (CFO)
• Consult option availability chart for your
desired cabinet
• Order Example: B24R-RD reduced depth to
20 1/4”
PE
APC
APFC
FPEB
MI
DE
OE
l
RD
ID
IF
TWR
WR
XS
XSG
GD
RTK
RTKP
Cabinets
Reason for restrictions
4
⅝
˝
All
Minimum for shelf hole drilling
6˝
All except
walls
Minimum for toe kick notch Less than 6” WR is mandatory
9˝
PB
Minimum for toe kick notch Less than 9” WR is mandatory
10˝
WZA
Minimum allowed
10 ⅝˝
WZA
Minimum for shelf
12˝
BZA
Minimum allowed
12˝ All except
walls
18˝
BEA
WEA
Minimum allowed
12˝
WWH
Minimum for working drawer - less than 12” depth
will have false drawer
Wine Storage section always 12” deep
Reduced Depth
Min.
Depth
Cabinet
Drawer Box
Depth
24” >
20 ⁄
”
21”–23 ⁄
”
17 ⁄
”
18”–20 ⁄
”
14 ⁄
”
15”–17 ⁄
”
11 ⁄
”
12”–14 ⁄
”
8 ⁄
”
< 12”
No drawer
