C12
Cabinet Specs
Material dimensions listed may vary slightly from actual dimensions of the product
Specifications and Options

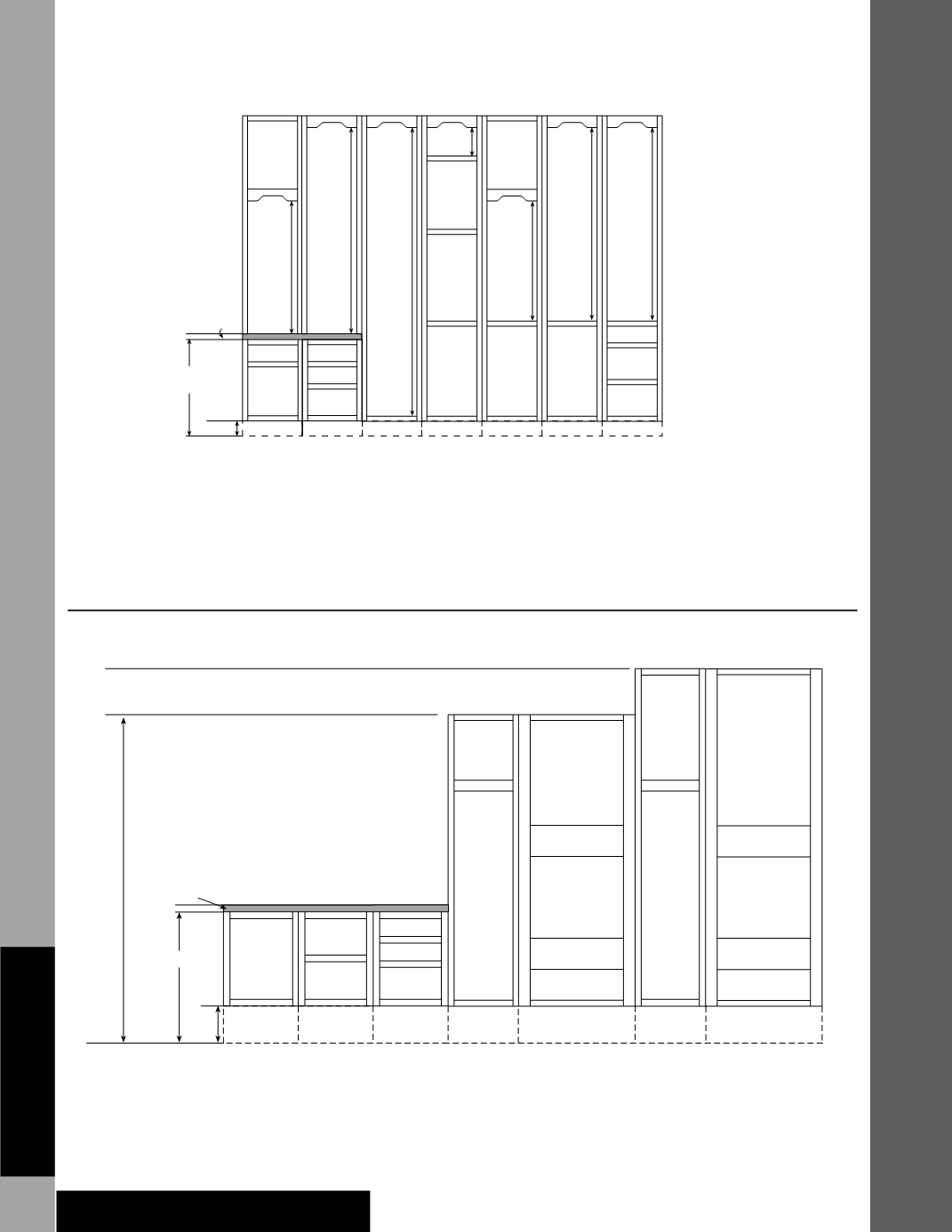

Furniture Frame Dimensions–96” H
FBWT FB
FBS
FBW
FBD
*27˝
*27˝
*27˝
*36˝
*58˝
*58˝
*5˝
*26˝
29˝
DDO DDR
*5˝
*5˝
*15˝
FBS
FWT
*40˝
*62˝
*5˝
4 ½˝
*20 ½˝
*20 ½˝
*20 ½˝
*86 ½˝
*9 ½˝
*9 ½˝
1 ½˝
countertop
*8 ½˝
*8 ½˝
• Unless otherwise noted, all stiles and rails are 1 1/2˝
• 3˝ vertical stiles divide double door cabinets over 36˝ wide
• Unless noted, all furniture valances are 3 1/2˝ high
• Opening sizes are preceded by an asterisk (*)
• Toe kick depth is 3 1/8˝
• Note: Unless noted, cabinet depth does not include doors or drawer fronts
Passport Frame Dimensions
ABFH ABD•2
ABD•3 AU84 AOC_84S•BD
AOC_96S•BD
AU96
*5˝
9˝
32 ½˝
1 ½˝
countertop
*20 ½˝
*5˝
8˝
*27˝
*8˝
*8˝
*21˝
*27˝
*54˝
3˝
3˝
8˝
8˝
*8˝
*21˝
*39
*15˝
*54˝
*9 ½˝
*9 ½˝
*8˝
84˝
96˝
• Unless otherwise noted, all stiles and rails are 1 1/2˝
• 3˝ vertical stiles divide double door cabinets over 36˝ wide
• Opening sizes are preceded by an asterisk (*)
• Unless noted, oven cabinets have 3˝ vertical stiles
• Toe kick depth is 6˝
•
Note
: Unless noted, cabinet depth does
not
include doors or drawer fronts
