Tall Cabinets
F16
Tall Appliance Cabinets

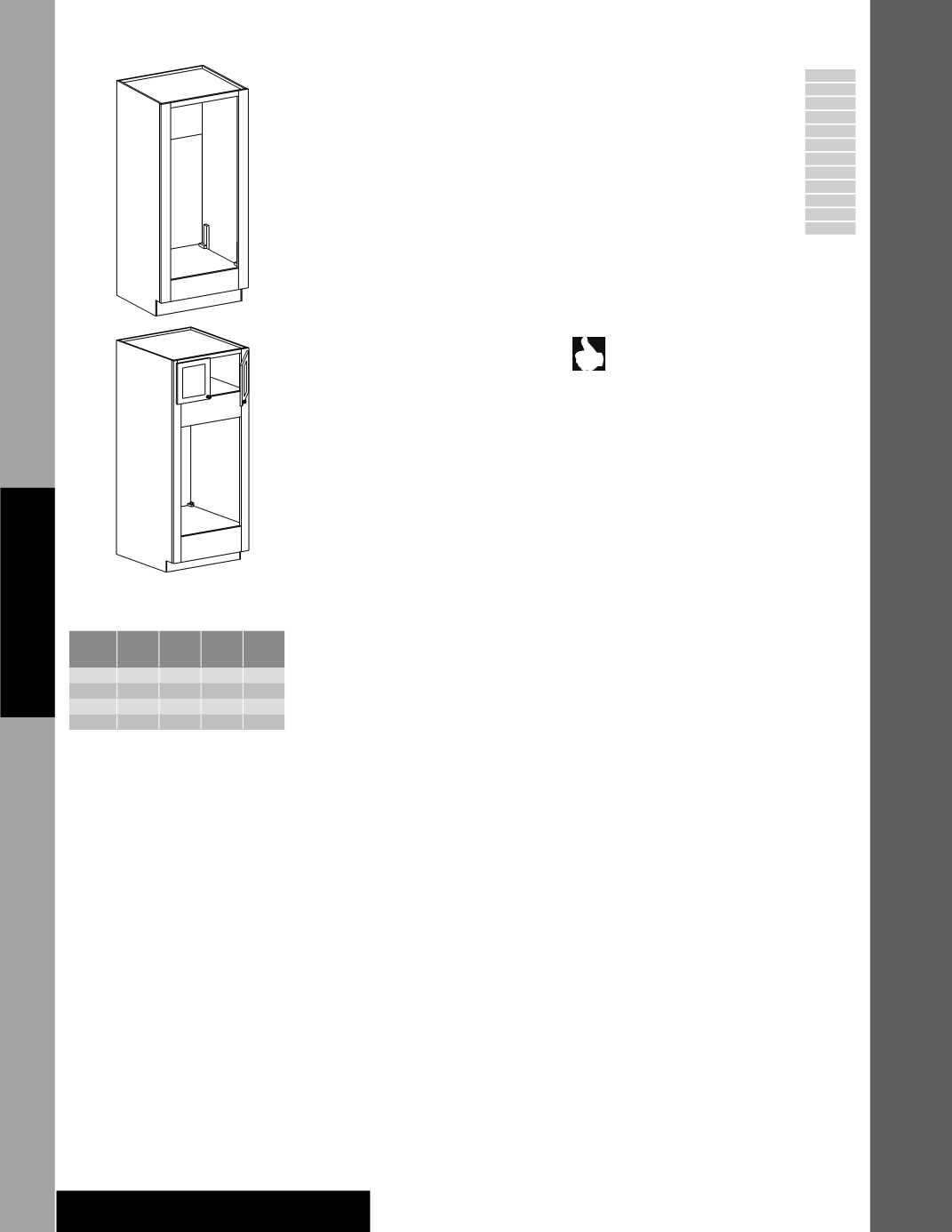

Oven Cabinet–Double Extended Opening w/3” Stiles
60” High
OC242460 DE
OC272460 DE
OC302460 DE
OC332460 DE
84” High
i
OC242484 (Butt)DE
OC272484 (Butt)DE
OC302484 (Butt)DE
u
OC332484 DE
OC332484 BUTTDE
87” High
i
OC242487 (Butt)DE
OC272487 (Butt)DE
OC302487 (Butt)DE
u
OC332487 DE
OC332487 BUTTDE
90” High
i
OC242490 (Butt)DE
OC272490 (Butt)DE
OC302490 (Butt)DE
u
OC332490 DE
OC332490 BUTTDE
93” High
i
OC242493 (Butt)DE
OC272493 (Butt)DE
OC302493 (Butt)DE
u
OC332493 DE
OC332493 BUTTDE
96” High
i
OC242496 (Butt)DE
OC272496 (Butt)DE
OC302496 (Butt)DE
u
OC332496 DE
OC332496 BUTTDE
• Includes adjustable shelves in upper section:
60”, 84” & 87” high—no shelves; 90” & 93”
high—one shelf; 96” high—two shelves
• Double Oven Opening Kit (DOK) shelf
available for two appliance installation; see
Tall Accessories section of this book
• Oven Trim Kit (overlay panel) available for a
full overlay look; see Tall Accessories section
of this book
I
WR and RTK
not
available on 93” & 96” high
cabinets
• Toe kick is shipped separately on 93˝ & 96˝ high cabinets
I
VTK is
not
available on 93” and 96” high cabinets
•
Not
available with knife hinge door option
•
Note
: When ordering glass doors in full overlay door styles,
a portion of the 3” face frame will be visible
Remember to order a 3/16” skin (WSK) for the
exposed ends of 93” & 96” high cabinets to
conceal the seam between the loose toe kick
and the cabinet.
l
PE
l
APC
l
APFC
l
FPEB
l
MI
l
RD
IF
I
WR
l
XS
l
GD
I
RTK
I
VTK
84˝
87˝
90˝
93˝
96˝
18˝
21˝
23 ½˝
27˝
30˝
10˝
24˝
24˝
60 ½˝
OC_60
OC_84-OC_96
Cabinet
Width
Min
Width
Max.
Width
Min.
Height
Max.
Height
24˝
21˝
22˝
43˝
27˝
21˝
25˝
43˝
30˝
24˝
28˝
43˝
33˝
27˝
31˝
43˝
Cut out dimensions
Maximum cutout opening is dependent on
appliance size and use of molding or trim kit.
Distance between top doors and bottom
on full overlay styles is 60’’.
i
1 1/2˝ stiles
u
3” center stile
Gray color coding indicates new product, size or code.
