Tall Appliance Cabinets

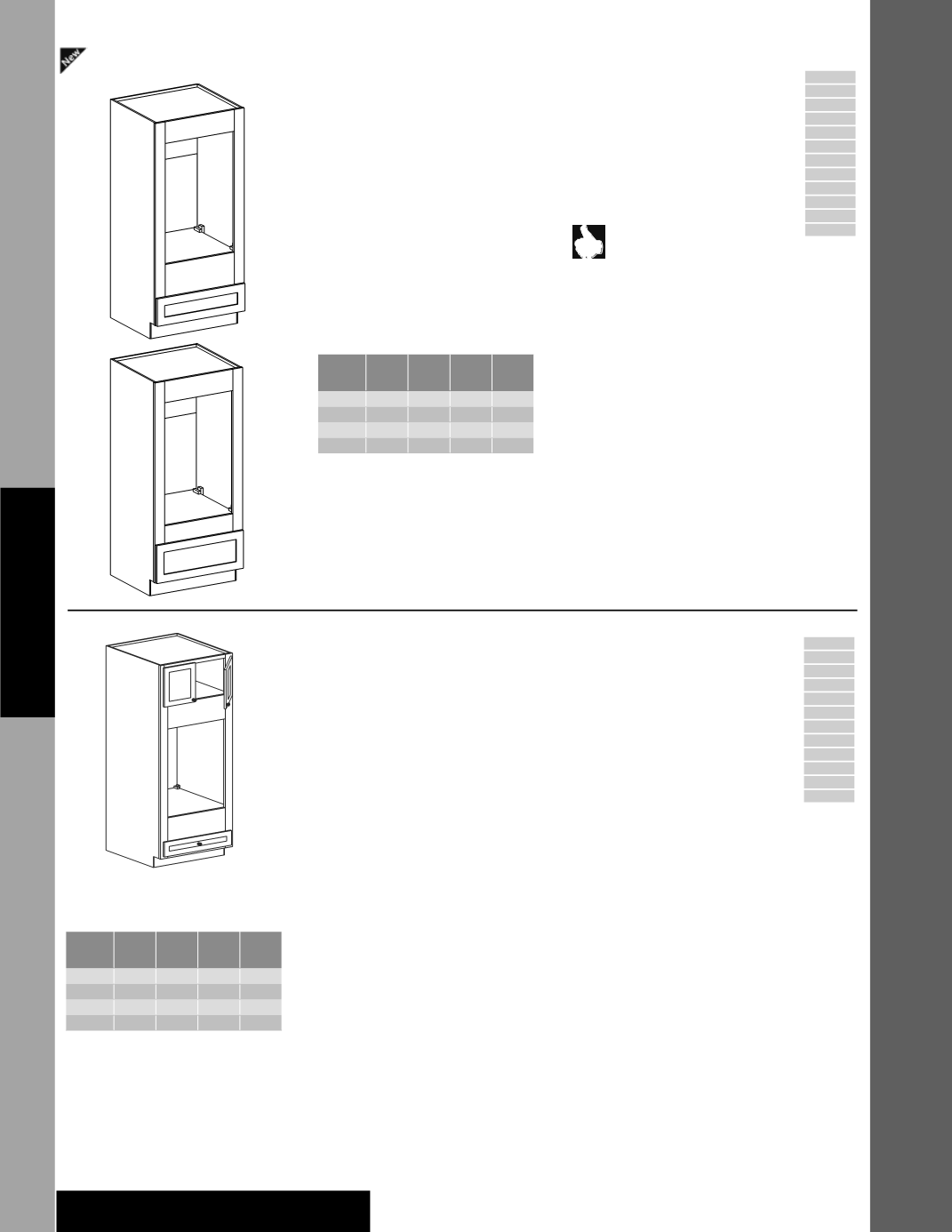

Oven Cabinet–Single Oven/Microwave Combination w/3” Stiles–Bottom Drawer
4” High Drawer
i
OC242460 (Butt)
OC272460 (Butt)
OC302460 (Butt)
OC332460
7” High Deep Drawer
i
OC242460 (Butt)•DD
OC272460 (Butt)•DD
OC302460 (Butt)•DD
OC332460 •DD
• No shelf
• Oven Trim Kit (overlay panel) available for a
full overlay look; see Tall Accessories section
of this book
• Double Oven Opening Kit (DOK) shelf
available for two appliance installation; see
Tall Accessories section of this book
•
Not
available with knife hinge door option
Remember to order a 3/16” skin
(WSK) for the exposed ends of 93”
& 96” high cabinets to conceal the seam
between the loose toe kick and the cabinet.
l
PE
l
APC
l
APFC
l
FPEB
l
MI
l
RD
IF
l
WR
l
XS
GD
l
RTK
l
VTK
Cabinet
Width
Min
Width
Max.
Width
Min.
Height
Max.
Height
24˝
21˝
22˝
21˝
27˝
21˝
25˝
21˝
30˝
24˝
28˝
21˝
33˝
27˝
31˝
21˝
Maximum cutout opening is dependent on
appliance size and use of molding or trim kit.
Distance between top doors and bottom
doors on full overlay styles is 38˝.
Cut out dimensions
24˝
24˝
60 ½˝
60 ½˝
OC_60
OC_60 •DD
i
1 1/2˝ stiles
Gray color coding indicates new product, size or code.
Oven Cabinet–Double w/3” Stiles
84” High
i
OC242484 (Butt)D
OC272484 (Butt)D
OC302484 (Butt)D
u
OC332484 D
OC332484 BUTTD
87” High
i
OC242487 (Butt)D
OC272487 (Butt)D
OC302487 (Butt)D
u
OC332487 D
OC332487 BUTTD
90” High
i
OC242490 (Butt)D
OC272490 (Butt)D
OC302490 (Butt)D
u
OC332490 D
OC332490 BUTTD
93” High
i
OC242493 (Butt)D
OC272493 (Butt)D
OC302493 (Butt)D
u
OC332493 D
OC332493 BUTTD
96” High
i
OC242496 (Butt)D
OC272496 (Butt)D
OC302496 (Butt)D
u
OC332496 D
OC332496 BUTTD
• Includes adjustable shelves in upper section:
84” & 87” high—no shelves; 90” & 93”
high—one shelf; 96” high—two shelves
• Oven Trim Kit (overlay panel) available for a
full overlay look; see Tall Accessories section
of this book
• Double Oven Opening Kit (DOK) shelf
available for two appliance installation; see
Tall Accessories section of this book
I
WR and RTK
not
available on 93” & 96” high
cabinets
• Toe kick is shipped separately on 93˝ & 96˝ high cabinets
I
VTK is
not
available on 93” and 96” high cabinets
•
Not
available with knife hinge door option
•
Note
: When ordering glass doors in full overlay door
styles, a portion of the 3” face frame will be visible
l
PE
l
APC
l
APFC
l
FPEB
l
MI
l
RD
IF
I
WR
l
XS
l
GD
I
RTK
I
VTK
4˝
24˝
84˝
87˝
90˝
93˝
96˝
18˝
21˝
23 ½˝
27˝
30˝
Cabinet
Width
Min
Width
Max.
Width
Min.
Height
Max.
Height
24˝
21˝
22˝
36 ½˝
27˝
21˝
25˝
36 ½˝
30˝
24˝
28˝
36 ½˝
33˝
27˝
31˝
36 ½˝
Cut out dimensions
Maximum cutout opening to maintain proper
drawer operation is 50 1/2” on 84”, 93” & 96”
units, and 51” on 90” units. To avoid drawer
interference, no more than 6” can be trimmed
from the bottom frame rail. If needed, a
cutout height of 53 1/2” can be achieved by
removing the drawer box.
i
1 1/2˝ stiles
u
3” center stile
Gray color coding indicates new product, size or code.
