Panels-Shelving-Trays
K17
Roll-out Trays

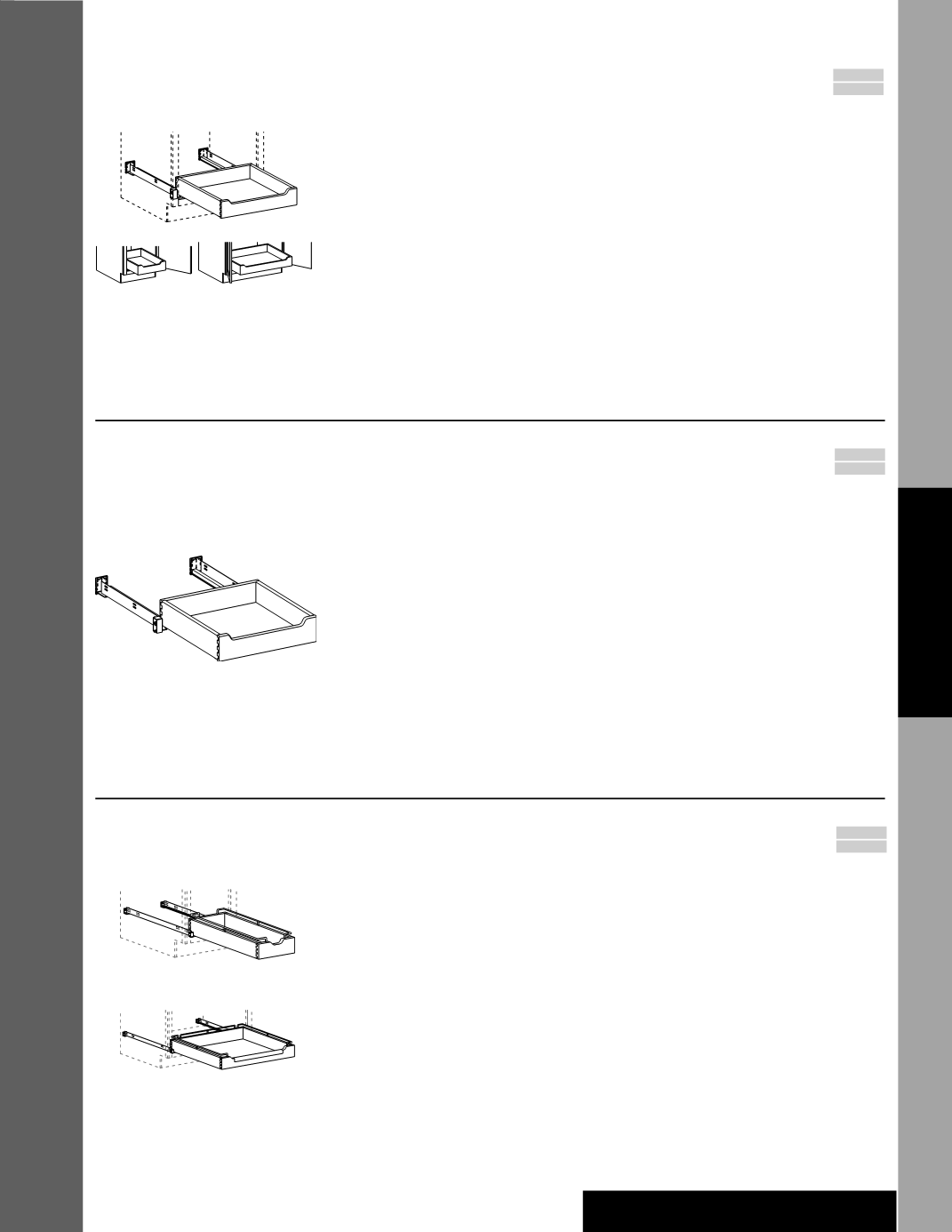

Deluxe Dovetailed Roll-out Tray Factory Installed
i
1DXFWROT
i
2DXFWROT
i
3DXFWROT
i
4DXFWROT
i
5DXFWROT
i
6DXFWROT
s
1DXROT
s
2DXROT
s
3DXROT
s
4DXROT
s
5DXROT
s
6DXROT
• Roll-out Trays (ROT) are 4” deep, 3/4˝ solid wood
dovetailed sides with 3/16” plywood bottom, notched
front and full extension runners with integrated buffer
• 18”, 21” and 24” depths only
• Shelves are eliminated when this option is selected
• Tray location is adjustable
• A maximum of two different Roll-out Tray (ROT) types
can be factory installed in a single cabinet. Example:
B30BUTT-1FWROT-1DXFWROT
• Full-width trays
not
available in 39”, 42”, 45” or 48”
• Trays are
not
evenly spaced
• Example:
Installed—U182484L-3DXROT
Installed—B15L-2DXROT
Installed—B36-2DXFWROT
APC
MI
Available only in the width
configurations shown
i
When full-width Roll-out Trays (ROT) are
ordered for 30˝, 33˝ or 36˝ wide cabinets, the
double doors will have a mullion attached to
the left door. Full width Roll-out Trays (ROT)
are
not
available factory installed on Utility
cabinets (U) wider than 24˝.
s
Not
available on double door cabinets with a
center stile
Deluxe Dovetailed Roll-out Tray Field Installation
DXROT12•24 •21 •18
DXROT15•24 •21 •18
DXROT18•24 •21 •18
DXROT21•24 •21 •18
DXROT24•24 •21 •18
DXROT27•24 •21 •18
DXROT30•24 •21 •18
DXROT33•24 •21 •18
DXROT36•24 •21 •18
• Roll-out Trays (ROT) are 4” deep, 3/4˝ solid
wood dovetailed sides with 3/16” plywood
bottom, notched front and full extension
runners with integrated buffer
• 18”, 21” and 24” depths only
• Tray location is adjustable
• Mounting hardware and runners included
• Example:
For U182484—order DXROT18•24
For B15L—order DXROT15•24
For VB1518R—order DXROT15•18
For VB15L—order DXROT15•21
APC
MI
Chrome Deluxe Roll-out Tray Factory Installed
i
1SDXFWROT
i
2SDXFWROT
i
3SDXFWROT
i
4SDXFWROT
i
5SDXFWROT
i
6SDXFWROT
1SDXROT
2SDXROT
3SDXROT
4SDXROT
5SDXROT
6SDXROT
• Roll-out Trays (ROT) are 5 1/2” deep, 3/4” solid wood
dovetailed sides with 1 1/2” chrome rails on sides
and back, 3/16” plywood bottom, notched front with
chrome pull and full extension runners with integrated
buffer
• 18”, 21” and 24” depths only
• Shelves are eliminated when this option is selected
• Tray location is adjustable
• A maximum of two different Roll-out Tray (ROT) types
can be factory installed in a single cabinet. Example:
B30BUTT-1FWROT-1DXFWROT
• Full-width trays
not
available in 39”, 42”, 45” or 48”
• Trays are
not
evenly spaced
• Mounting hardware and runners included
• Front chrome pullout is
not
included on trays for 12”
wide cabinets
• Example:
Installed—U182484L-3SDXROT
Installed—B15L-2SDXROT
Installed—B36-2SDXFWROT
APC
MI
12" Wide Units
15" - 36" Wide Units
i
When full-width Roll-out Trays (ROT) are
ordered for 30˝, 33˝ or 36˝ wide cabinets, the
double doors will have a mullion attached to
the left door. Full width Roll-out Trays (ROT)
are
not
available factory installed on Utility
cabinets (U) wider than 24˝.
