Wall Cabinets
D61
Wall Hoods
Wall Hood Box Cove Valance
21” High
WHB301821 •CV
WHB361821 •CV
WHB362121 •CV
WHB422121 •CV
26 1/2” High
WHB301827 •CV
WHB361827 •CV
WHB362127 •CV
WHB422127 •CV
33” High
WHB301833 •CV
WHB361833 •CV
WHB362133 •CV
WHB422133 •CV
39” High
WHB301839 •CV
WHB361839 •CV
WHB362139 •CV
WHB422139 •CV
• Solid wood/wood veneer construction
• Laminates are painted hardwood
• All door styles will default to full overlay
• Doors are attached by false front clips.
Not
operational
• Designed to align with top of adjacent
cabinets
• Valance adds 3” to overall height and 5/32”
width to both sides
• Includes (2) Wall Hood Box Fillers, shipped separately
• 30 5/16” and 36 5/16” wide hoods have a single door panel
• 42 5/16” wide hoods have three door panels
• 19” deep requires component package “J”
• 22” deep requires component package “G” or “P”
• Check local building codes for required clearances
between the Wall Hood and cooking surface
• Filler strips are used when butting adjacent cabinets
against the Wall Hood Box. Fillers
must
be used in this
application to avoid gaps between cabinet boxes.
• Valances will be supplied in plain-sawn material for
Quartersawn Cherry and Quartersawn Maple door styles
•
Not
available in Northwood Roman, Northwood Square,
Stratford Roman or Stratford Square door styles
•
Note
: Square doors will be supplied when ordered in
arched door styles
•
Note
: Cabinetry and appliances located below these Wall
Hoods
must
be pulled to a minimum of 27˝deep and a
maximum of 30˝ deep for improved function
The Wall Hood Box Filler should be used when
installing the hood box between two wall
cabinets
PE
APC
v
APFC
FPEB
MI
DE
RD
ID
XS
XSG
GD

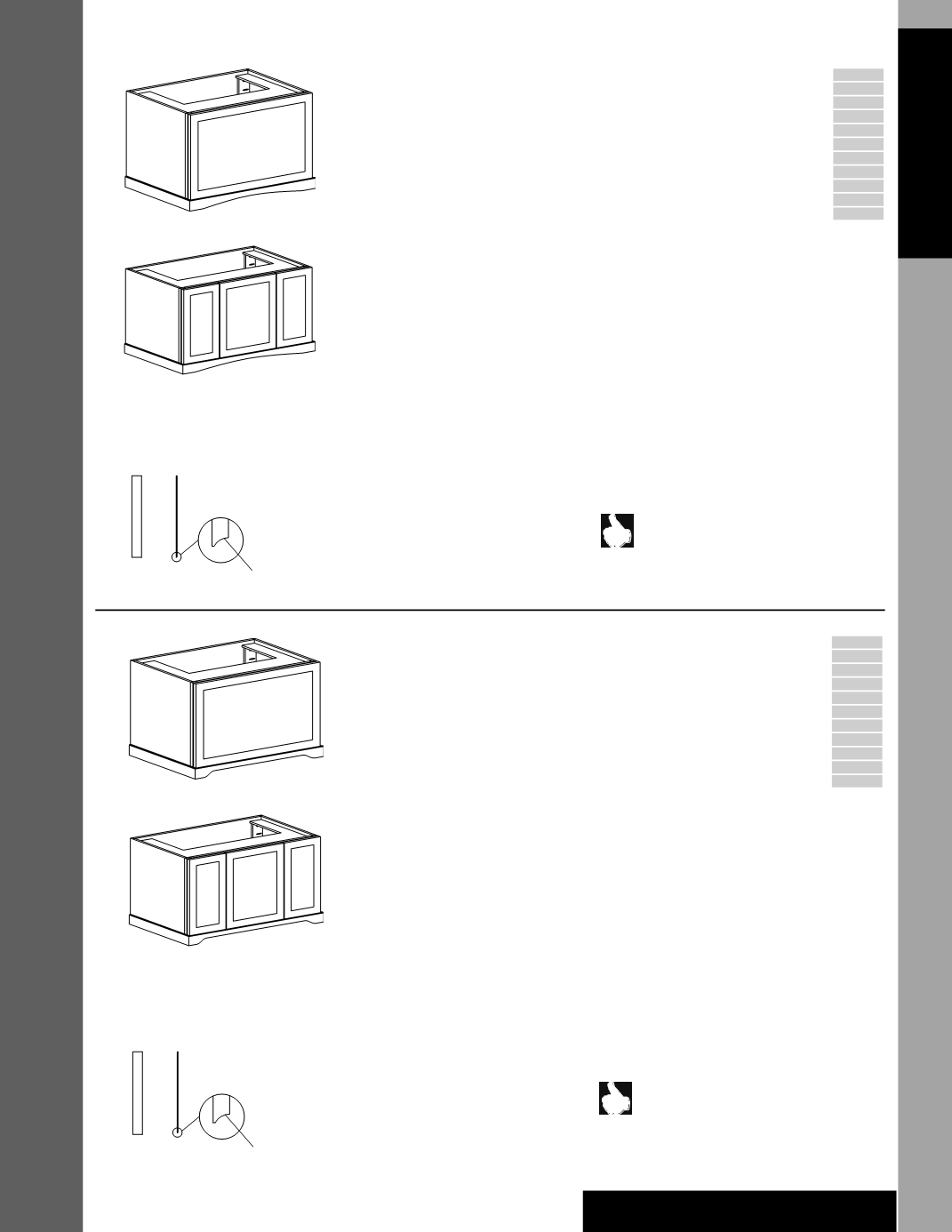

WHB361827.CV
WHB422127.CV
21
˝
26
½˝
33
˝
39
˝
21
˝
26
½˝
33
˝
39
˝
22
˝
30
/ ˝
36
/ ˝
42
/ ˝
19
˝
22
˝
Radius to match top of valance
Wall Hood Box Filler
36
˝
¾˝
/ ˝
Wall Hood Box Furniture Valance
21” High
WHB301821 •FN
WHB361821 •FN
WHB362121 •FN
WHB422121 •FN
26 1/2” High
WHB301827 •FN
WHB361827 •FN
WHB362127 •FN
WHB422127 •FN
33” High
WHB301833 •FN
WHB361833 •FN
WHB362133 •FN
WHB422133 •FN
39” High
WHB301839 •FN
WHB361839 •FN
WHB362139 •FN
WHB422139 •FN
• Solid wood/wood veneer construction
• Laminates are painted hardwood
• All door styles will default to full overlay
• Doors are attached by false front clips.
Not
operational
• Designed to align with top of adjacent
cabinets
• Valance adds 3” to overall height and 5/32”
width to both sides
• Valances will be supplied in plain-sawn material for
Quartersawn Cherry and Quartersawn Maple door styles
• Includes (2) Wall Hood Box Fillers, shipped separately
• 30 5/16” and 36 5/16” wide hoods have a single door panel
• 42 5/16” wide hoods have three door panels
• 19” deep requires component package “J”
• 22” deep requires component package “G” or “P”
• Check local building codes for required clearances between
the Wall Hood and cooking surface
• Filler strips are used when butting adjacent cabinets
against the Wall Hood Box. Fillers
must
be used in this
application to avoid gaps between cabinet boxes.
•
Not
available in Northwood Roman, Northwood Square,
Stratford Roman or Stratford Square door styles
•
Note
: Square doors will be supplied when ordered in
arched door styles
•
Note
: Cabinetry and appliances located below these Wall
Hoods
must
be pulled to a minimum of 27˝deep and a
maximum of 30˝ deep for improved function
The Wall Hood Box Filler should be used when
installing the hood box between two wall
cabinets
PE
APC
v
APFC
FPEB
MI
DE
RD
ID
XS
XSG
GD
WHB361827.FN
WHB422127.FN
30
/ ˝
36
/ ˝
21
˝
26
½˝
33
˝
39
˝
21
˝
26
½˝
33
˝
39
˝
19
˝
22
˝
22
˝
42
/ ˝
Radius to match top of valance
Wall Hood Box Filler
36
˝
¾˝
/ ˝
