Base Cabinets
E75
Base Accessories
Toe Kick
Black
=
BLTK8
• 1/8” thick hardboard,
4 1/2” high
n
MTK8
• 1/8” thick hardboard,
4 1/2” high, laminated
with matching Viraguard
Aluminum finish
MTK8 •A
• 1/16˝ thick flexible
laminate, 4 1/2˝ high
Stainless finish
MTK8 •S
• 1/16˝ thick flexible
laminate, 4 1/2˝ high
i
WMTK8
• 3/16” thick wood veneer,
4 1/2” high, to match
• Edges are unfinished
• Quartersawn Cherry and Maple
door styles supplied plain sawn
• Field installation only
•
Note
: Matching toe kick is
not
automatically supplied with
cabinets. It
must
be ordered as a
separate item
Apply Quarter Round
molding (QR8) at the base
of Matching Toe Kicks or
Wood Matching Toe Kicks (MTK8 or
WMTK8) for a nice, finished look.
PE
APC
APFC
FPEB
MI
CW
RD
CH
WR
RTKP
VTK
96˝
=
Painted hardwood supplied for EverCore™
n
Not
available in Morristown; Brockton, Melrose and
Putnam Oak supplied plain sawn
i
Painted hardwood supplied for EverCore™ and Laminate

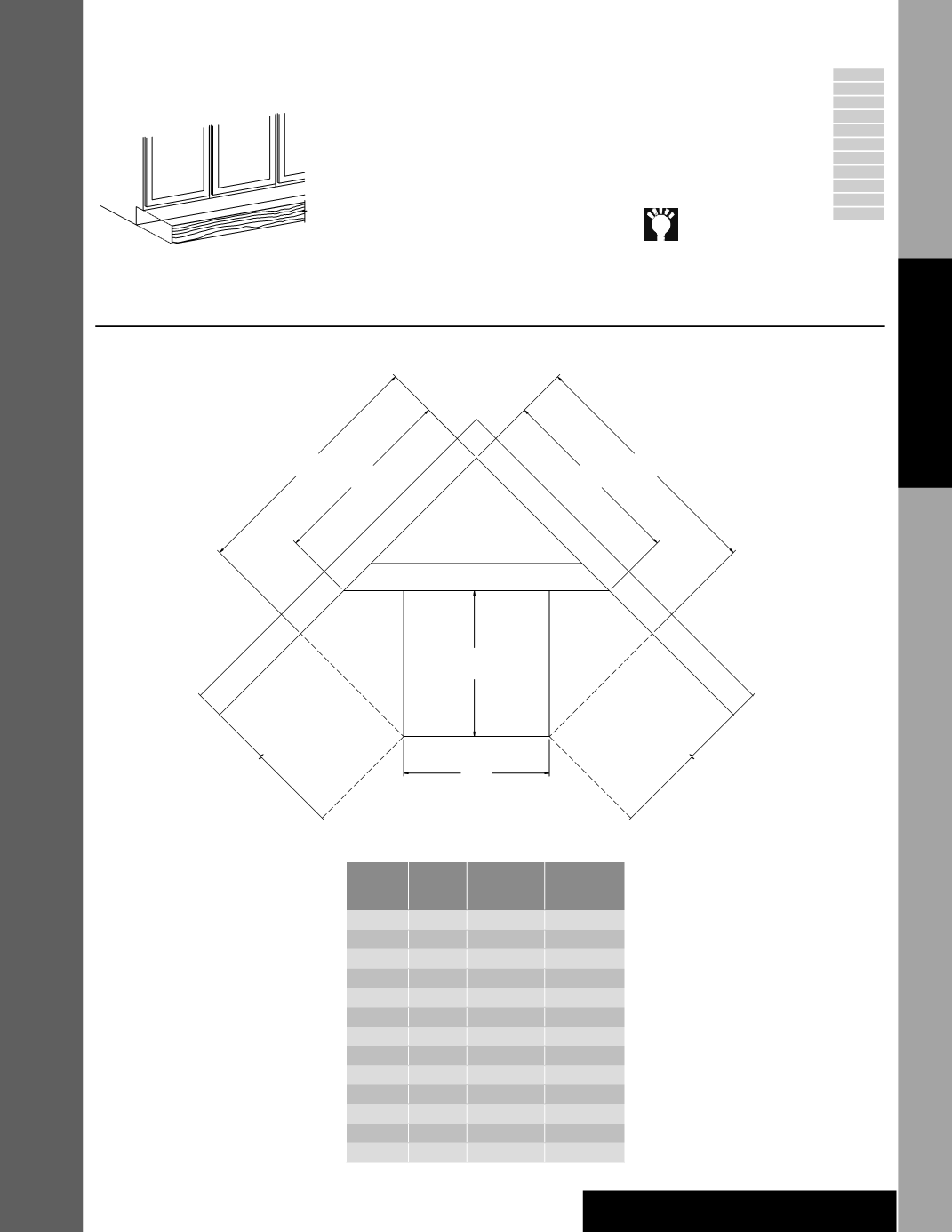

Diagonal Installation of Standard Base Cabinets
Cabinet
Width
A
Cabinet
Depth
B
Wall
Dimensions
C
Wall
Dimensions
D
12”
24”
22 ½”
32 ½”
15”
24”
24 ⅝”
34 ⅝”
18”
24”
26 ¾”
36 ¾”
21”
24”
28 ⅞”
38 ⅞”
24”
24”
31”
41”
27”
24”
33 ⅛”
43 ¼”
30”
24”
35 ¼”
45 ¼”
33”
24”
37 ⅜”
47 ⅜”
36”
24”
39 ½”
49 ½”
39”
24”
41 ⅝”
51 ⅝”
42”
24”
43 ¾”
53 ¾”
45”
24”
45 ⅞”
55 ⅞”
48”
24”
48”
58”
Optional Wall
D
D
C
C
B
A
Note:
Fillers are always recommended at both sides of cabinet junction points to
allow for wall variations and drawer clearances.
