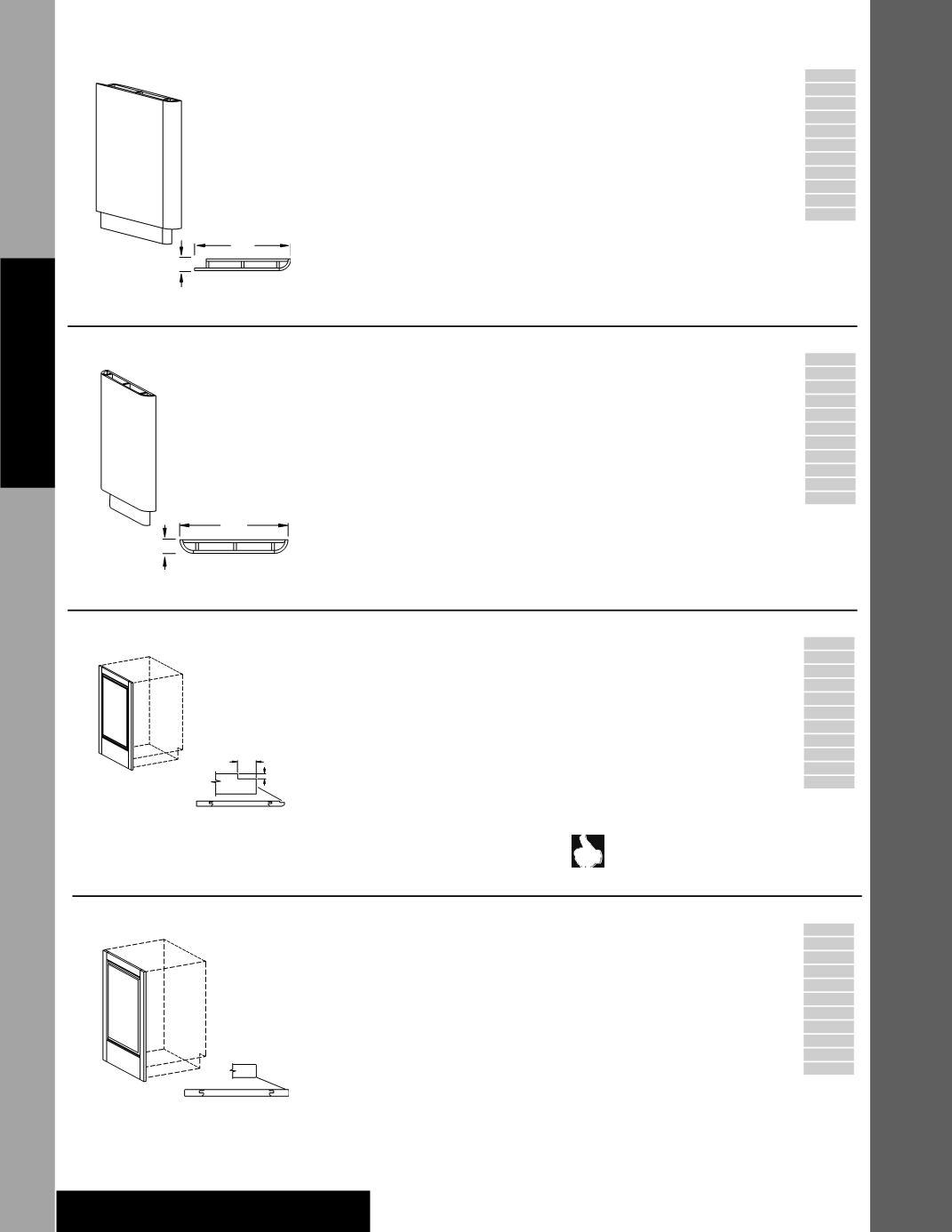

Base Accessories
Base Curved End Panel
BEP3 CEP
• 5/8” wood veneer construction
• Reversible, may be used on either right or left
end
• Curved matching toe kick included and
shipped separately
•
Not
available in Alder–Rustic door styles
•
Not
available in High-Gloss Laminate door
styles
• Painted hardwood supplied for EverCore™
•
Not
available in Morristown; Brockton,
Melrose and Putnam Oak supplied plain sawn
PE
APC
APFC
FPEB
MI
CW
RD
CH
WR
RTKP
VTK
34
1
/
2
˝
24˝
3˝
24˝
Peninsula Base Curved End Panel
PBEP3 CEP
• 5/8” wood veneer construction
• Reversible, may be used on either right or left
end
• Curved matching toe kick included and
shipped separately
•
Not
available in Alder–Rustic door styles
•
Not
available in High-Gloss Laminate door
styles
• Painted hardwood supplied for EverCore™
•
Not
available in Morristown; Brockton,
Melrose and Putnam Oak supplied plain sawn
PE
APC
APFC
FPEB
MI
CW
RD
CH
WR
RTKP
VTK
34
1
/
2
˝
24˝
24˝
3˝
Matching Base End Panel
Specify R or L
MBEP R or L
Peninsula
PMBEP
• 3/4” thick panel with matching door edge profile on
front edge only
• Peninsula panel has routed door profile front
and back
• Laminate and slab door styles do
not
have
grooves and will
not
fit flush against 1/2˝ end
panel. A 3/16˝ shim is recommended.
• Inside of matching panel bottom rail will line
up with inside bottom rail of door
• Left shown
• Field installation only
•
Not
available in mitered door styles; use End
Panel–Mitered
•
Not
available in Morristown
I
Wide Bottom Rail—field notch for toe kick
When designing with Matching End Panels the
reveal will differ from the cabinet door height
reveal. Matching End Panels cover the entire
side of the cabinet. See drawing for exact measurements
PE
APC
APFC
FPEB
MI
CW
RD
CH
I
WR
RTKP
VTK
34
1
/
2
˝
23
7
/
8
˝
3
/
16
˝
Standard edge detail—fits flush against
1/2˝ end panel and behind face frame
¾˝
Matching Base End Panel–Square Edges
MBEP •S
• 3/4˝ thick panel with square edge front and
back
• Inside of matching panel bottom rail will line
up with inside bottom rail of door
• Reversible, may be used on either right or left
end
• Field installation only
• No frame recess dado
•
Not
available in Laminate door styles
•
Not
available in mitered door styles; use End
Panel–Mitered
•
Not
available in Morristown
I
Wide Bottom Rail—field notch for toe kick
PE
APC
APFC
FPEB
MI
CW
RD
CH
I
WR
RTKP
VTK
34
1
/
2
˝
23
7
/
8
˝
Will not fit flush against 1/2˝ end panel,
a 3/16˝ shim is recommended
