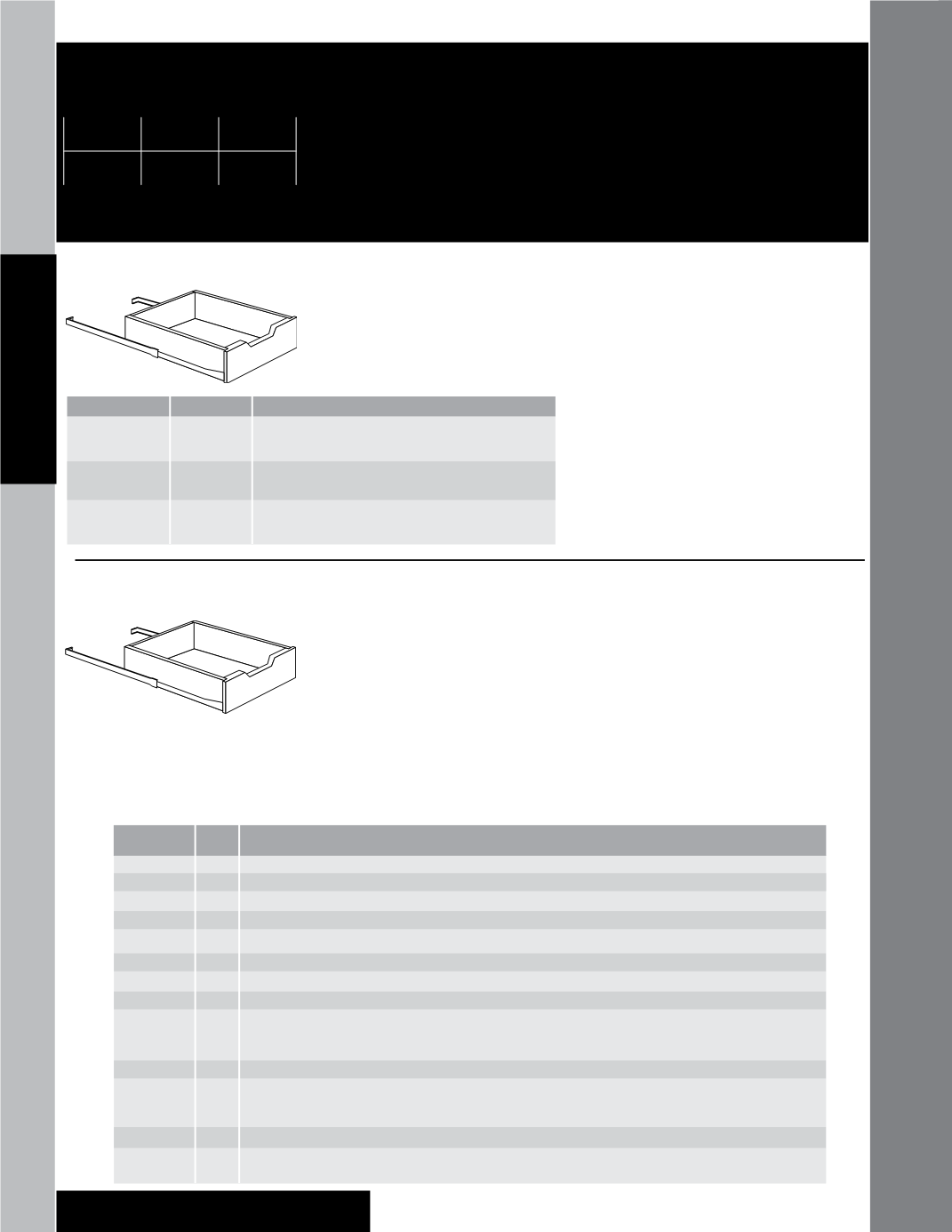

Deep Roll-out Trays – Full Extension Field Installation
DROTFX30 •24
DROTFX33 •24
DROTFX36 •24
• Installs in base and universal base cabinets with butt
doors using pre-drilled holes; rear mounting brackets
included for installing in peninsula base cabinets
• See chart for cabinet availability
• 24˝ depth only
• Trays are made of 1/2” thick solid hardwood; bottoms
are .205” thick matching wood grain printed plywood
• 3 3/16” interior height along sides
• 1 15/16” deep finger pull at midpoint of tray front
• Unit slides on full extension side-mount ball bearing
runners
• Mounting hardware and runners included
• Natural finish
• Order Example:
For SB30 BUTT•W—order DROTFX30•24
For B33 BUTT—order DROTFX33•24
For UB36 BUTT—order DROTFX36•24
Deep Roll-out Trays - Field Installation
DROT12 •24
DROT14 •24
DROT15 •24
DROT16 •24
DROT18 •24
DROT19 •24
DROT21 •24
DROT22 •24
DROT24 •24
DROT27 •24
DROT30 •24
DROT33 •24
DROT36 •24
• Installs in base, universal base, utility and vanity
cabinets using pre-drilled holes in back panel
• See chart for cabinet availability
• 24” depth only
• Trays are made of 1/2” thick solid hardwood;
bottoms are .205” thick matching wood grain printed
plywood
• 3 3/16” interior height along sides
• 1 15/16” deep finger pull at midpoint of tray front
• Mounting hardware and runners included
• Natural finish
• 3/4 extension runners
• Order Example:
For B12•FH—order DROT12•24
For PB21—order DROT21•24
For BBC42—order DROT14•24
K6
Panels-Shelving-Trays
Roll-out Trays
Roll-out Trays
Construction Options and
Modifications
Material dimensions may vary slightly based
on lumber industry standards.
Specifications subject to change without
notice.
ROT 15 •24
code
width
depth
Item
Tray Width
For Use In:
DROTFX30 •24
25 13/16"
B30 BUTT, B30 BUTT•FH, PB30 BUTT, SB30 BUTT,
SB30 BUTT•FH, UB30 BUTT, UB30 BUTT•FH
DROTFX33 •24
28 13/16"
B33 BUTT, B33 BUTT•FH, SB33 BUTT, SB33 BUTT•FH,
UB33 BUTT, UB33 BUTT•FH
DROTFX36 •24
31 13/16"
B36 BUTT, B36 BUTT•FH, PB36 BUTT, SB36 BUTT,
SB36 BUTT•FH, UB36 BUTT, UB36 BUTT•FH
Item
Tray
Width
For Use In:
DROT12 •24
DROT14 •24
DROT15 •24
DROT16 •24
DROT18 •24
DROT19 •24
DROT21 •24
DROT22 •24
DROT24 •24
DROT27 •24
DROT30 •24
DROT33 •24
DROT36 •24
8"
9 1/2"
11"
12 1/2"
14"
15 1/2"
17"
18 1/2"
20"
23"
26"
29"
32"
B12, B12•FH, BCD24DL/R-4D, SB12, UB12, UB12•FH
BBC42
B15, B15•FH, BCD30DL/R-4D, DSB30, SB15, U152484, U152490, U152493, U152496, UB15, UB15•FH
BBC45, DSB33
B18, B18•FH, B54, BCD36DL/R-4D, DSB36, SB18, U182484, U182490, U182493, U182496, UB18, UB18•FH
B39, B39•FH, BBC48, SB39, SB39•FH, UB39•FH
B21, B21•FH, B42, B42•FH, SB21, SB42, SB42•FH, UB21, UB42, UB42•FH
B45, B45•FH, BBC51, UB45•FH
B24, B24 BUTT, B24•FH, B24 BUTT•FH, B48, B48•FH, PBBC27, PBBC27 BUTT, SB24, SB24 BUTT, SB24•FH,
SB24 BUTT•FH, SB48, SB48•FH, U242484, U242484 BUTT, U242490, U242490 BUTT, U242493,
U242493 BUTT, U242496, U242496 BUTT, UB24, UB24 BUTT, UB24•FH, UB24 BUTT•FH, UB48•FH, UBT24 BUTT
B27, B27•FH, SB27, SB27•FH, UB27, UB27•FH
B24, B24 BUTT, B24•FH, B24 BUTT•FH, B48, B48•FH, PBBC27, PBBC27 BUTT, SB24, SB24 BUTT, SB24•FH,
SB24 BUTT•FH, SB48, SB48•FH, U242484, U242484 BUTT, U242490, U242490 BUTT, U242493, U242493 BUTT,
U242496, U242496 BUTT, UB24, UB24 BUTT, UB24•FH, UB24 BUTT•FH, UB48•FH, UBT24 BUTT
B33 BUTT, B33 BUTT•FH, SB33 BUTT, SB33 BUTT•FH, UB33 BUTT, UB33 BUTT•FH
B36 BUTT, B36 BUTT•FH, SB36 BUTT, SB36 BUTT•FH, U362484 BUTT, U362490 BUTT,
U362493 BUTT, U362496 BUTT, UB36 BUTT, UB36 BUTT•FH
