Defining Site Policies
You can set default recovery and replication policies.
Configuring Disaster Recovery Policies

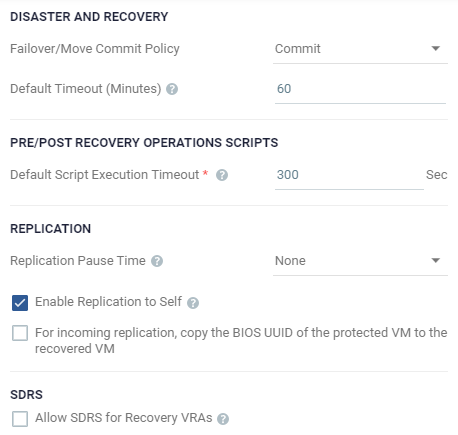

To configure disaster recovery policies:
|
•
|
None: The failover or move operation must be manually committed or rolled back by the user. |
|
•
|
Commit: After the time specified in the Default Timeout field the failover or move operation is committed, unless manually committed or rolled back by the user before the time-out value is reached. During the specified time you can check the recovered VPG virtual machines. |
|
•
|
Rollback: After the time specified in the Default Timeout field the failover or move operation is rolled back, unless manually committed or rolled back by the user before the time-out value is reached. During the specified time you can check the recovered VPG virtual machines. |
The value set here applies as the default for all failover or move operations from this point on but can be changed when defining a failover or move operation.
|
3.
|
Specify the Default Timeout after which a Commit or Rollback commit policy is performed. A value of zero indicates that the system will automatically perform the commit policy, without waiting for any user interaction. |
|
4.
|
In the Pre/Post Recovery Operations Scripts area, specify the timeout in seconds for a script to run before or after a failover, move, or test failover in the Default Script Execution Timeout field. |
|
5.
|
In the Replication area: |
|
•
|
If the same site is to be used as both the protected and recovery site, select Enable Replication to Self. |
|
•
|
Choose the Replication Pause Time, which is the time to pause when the journal might have problems, resulting in the loss of all checkpoints. For example, when the datastore for the journal is almost full. |
|
•
|
Replication pause time is the amount of time that the transfer of data from the protected site to the journal on the recovery site is paused. |
|
•
|
The value defined here is applied to existing and new VPGs. |
|
•
|
The value defined here is applied to this site only. |
|
•
|
To pause the protection in both directions, for example to cover reverse protection back to the original site after a move operation, you must define Replication Pause Time on both sites. |
|
•
|
To preserve the BIOS UUID of the protected VM after recovery operations, in the recovery ZVM Site Settings window, select For incoming replication, copy the BIOS UUID of the protected VM to the recovered VM. |
|
•
|
Preserving of the BIOS UUID is not supported in Clone and Self-Replication recovery operations. |
|
•
|
Preserving of the BIOS UUID is not supported in Public Cloud. |
|
•
|
Cross replication is not supported. |
|
•
|
Allow SDRS for Recovery VRAs: Select this to allow SDRS for Recovery VRAs, so as to automate load balancing for Recovery Storage, including Journal and Recovery volumes. |
By default, Zerto activated specific VM override rule in the SDRS settings, for each VRA installed on a Datastore Cluster.
When this checkbox is selected, Zerto will actively remove the SDRS overrides for all the Recovery VRAs, and instead, the Recovery VRAs will be included in the SDRS policy configured in the cluster.
When SDRS in allowed in Zerto, for each VRA VM the following SDRS levels from vSphere are applied:
|
•
|
Automation Level: Fully Automated |
|
•
|
Keep VMDKs together: No |
!
Important:
When SDRS is enabled for Recovery VRAs, SDRS could automatically trigger a VMware Storage vMotion operation for disks which are attached to the VRAs, including Recovery disks and Journals.
During an svMotion, VMware prevents any volume attach/detach operation from being performed on the VM, to which the migrating disks are attached.
Therefore, if the Recovery VRA undergoes an svMotion, those VPGs targeting that VRA cannot be failed over until the operation is complete or manually canceled from the vSphere client.
Best Practice:
If you allow SDRS in Zerto, and if there are sensitive times when you cannot afford an automatically triggered svMotion interfering with a potential Recovery operation we recommend you exclude this sensitive timeframe from SDRS by configuring SDRS Scheduling in vCenter, at the Datastore Cluster level.
|
•
|
Recovery and journal volumes that reside on the host are not automatically migrated to another host in the cluster. |
