Detailed Description

An asset representing remote asset catalogs.

This class represents a catalog of assets hosted remotely. It can download an asset manifest and undecoded asset data, and decode asset data belonging to this catalog.

An asset manifest can be downloaded by calling DownloadManifest or DownloadManifestAndAssets.

Assets to download must be added to the download list prior to being downloaded using AddAssetToDownloadList. The assets names to add to the download list must be known to the user for the appropriate manifest that is downloaded. These assets can then be downloaded by calling DownloadAssets or DownloadManifestAndAssets. While downloading assets that have dependecies on other files, their dependencies will be added to the download list and downloaded.

When download has completed assets can be decoded by calling GetAsset.

Note: Font resources are not supported and must be included with the application package.; Assets will be downloaded for the current device configuration. If the configuration changes, then the assets must be redownloaded. For example: if the device orientation changes from portrait to landscape.

#include <asset/YiRemoteAssetCatalog.h>

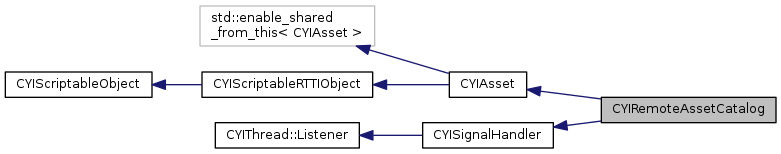

Inheritance diagram for CYIRemoteAssetCatalog:

[legend]

Public Types
enum	FAILURE_TYPE { INVALID_URL, NETWORK_ERROR, INVALID_ASSET, INVALID_MANIFEST }

Public Types inherited from CYIAsset
enum	PATH_TYPE { PATH_ABSOLUTE = 0, PATH_RELATIVE }

Public Member Functions
virtual	~CYIRemoteAssetCatalog ()

const CYIUrl &	GetUrl () const

uint64_t	GetCatalogID () const

CYIString	GetAbsoluteCatalogUrlForAsset (const CYIString &assetName) const

CYIString	GetRelativeCatalogUrlForAsset (const CYIString &assetName) const

void	DownloadManifest (const CYIUrl &url)

void	DownloadAssets ()

void	DownloadManifestAndAssets (const CYIUrl &url)

void	CancelDownload ()

virtual std::pair< uint32_t, uint32_t >	GetApproximateSize () const override

bool	AddAssetToDownloadList (const CYIString &assetName, const CYIRuntimeTypeInfo &assetTypeInfo)

void	RemoveAssetFromDownloadList (const CYIString &assetName)

std::shared_ptr< CYIAsset >	GetAsset (const CYIString &assetName) const

void	ClearData ()

std::vector< CYIString >	GetAssetList () const

const CYIAssetManifest &	GetAssetManifest () const

bool	IsManifestDownloaded () const

bool	IsAssetInDownloadList (const CYIString &assetName) const

Public Member Functions inherited from CYIAsset
virtual	~CYIAsset ()

const CYIString &	GetPath () const

CYIAssetLoadParams *	GetLoadParameters () const

bool	SetName (const CYIString &name)

const CYIString &	GetName () const

bool	Load ()

void	Unload ()

bool	IsLoaded () const

bool	Equals (const std::shared_ptr< CYIAsset > &pAsset)

virtual bool	Prepare ()

Public Member Functions inherited from CYIScriptableRTTIObject
	CYIScriptableRTTIObject ()

virtual	~CYIScriptableRTTIObject ()

virtual const CYIRuntimeTypeInfo *	GetRuntimeTypeInfoForScriptObject () const override

Public Member Functions inherited from CYIScriptableObject
	CYIScriptableObject ()

	CYIScriptableObject (const CYIScriptableObject &other)

CYIScriptableObject &	operator= (const CYIScriptableObject &other)

virtual	~CYIScriptableObject ()

CYIBindingImplementation *	GetBindingImplementation () const

void	SetBindingImplementation (CYIBindingImplementation *pBindingImplementation)

Public Member Functions inherited from CYISignalHandler
	CYISignalHandler ()

	CYISignalHandler (const CYISignalHandler &rSignalHandler)

virtual	~CYISignalHandler ()

CYISignalHandler &	operator= (const CYISignalHandler &rSignalHandler)

void	MoveToThread (CYIThread *pThread)
	This function allows the user to override the default thread affinity to any CYIThread that may or may not be running. More...

CYIThreadHandle	GetThreadAffinity () const

void	SetThreadAffinity (const CYIThreadHandle &rThreadAffinity)

virtual bool	IsConnected () const

virtual bool	IsConnected (const CYISignalBase &rSignal) const

void	Disconnect (CYISignalBase &rSignal)

void	DisconnectFromAllSignals ()

Public Member Functions inherited from CYIThread::Listener
	Listener ()

virtual	~Listener ()

virtual void	OnThreadStarted (CYIThread *)

virtual void	OnThreadTerminated (CYIThread *)

virtual void	OnThreadFinished (CYIThread *)

Static Public Member Functions
static std::shared_ptr< CYIRemoteAssetCatalog >	Create (const CYIString &name)

Public Attributes
CYISignal< const CYIUrl & >	AssetDownloadCompleted

CYISignal< const CYIUrl &, const FAILURE_TYPE, const CYIUrl & >	AssetDownloadFailed

CYISignal< const CYIUrl &, const FAILURE_TYPE >	ManifestDownloadFailed

CYISignal< const CYIUrl & >	DownloadCancelled

CYISignal< const CYIUrl & >	ManifestDownloadCompleted

Protected Member Functions
	CYIRemoteAssetCatalog (const CYIString &name)

const std::vector< uint8_t > &	GetData (const CYIString &assetName) const

void	OnManifestDownloadCompleted (const std::shared_ptr< CYIHTTPRequest > &pRequest, const std::shared_ptr< CYIHTTPResponse > &pResponse, bool bCachedResponse)

void	OnManifestDownloadFailed (const std::shared_ptr< CYIHTTPRequest > &pRequest, const HTTP_STATUS_CODE statusCode, const CYIString &errorMessage)

void	OnAssetDownloadCompleted (const CYIUrl &url)

void	OnAssetDownloadFailed (CYIRemoteAssetDownloadHelper::FAILURE_TYPE eFailureType, const CYIUrl &url)

std::shared_ptr< CYIAsset >	DecodeAsset (const CYIString &path, CYIAssetLoadParams *pLoadParams=nullptr) const

CYIUrl	GetAssetDownloadURL (const CYIString &assetName, const CYIRuntimeTypeInfo &typeInfo) const

bool	QueueTemplateDependenciesForDownload (const CYIString &assetName)

Protected Member Functions inherited from CYIAsset
	CYIAsset ()

ssize_t	GetID () const

void	SetPath (const CYIString &path, PATH_TYPE ePathType)

void	SetApproximateSize (uint32_t nSize)

void	SetLoaded (bool bAssetLoaded)

void	SetLoadParameters (std::unique_ptr< CYIAssetLoadParams > pParams)

virtual void	OnLoad ()

virtual void	OnUnload ()

Protected Member Functions inherited from CYIScriptableRTTIObject
virtual std::pair< const CYIRuntimeTypeInfo , const void >	GetRuntimeTypeInfoWithObject () const =0

Friends
class	CYIAssetLoader

Additional Inherited Members
Static Protected Attributes inherited from CYIAsset
static ssize_t	INVALID_ID

Member Enumeration Documentation

enum CYIRemoteAssetCatalog::FAILURE_TYPE

The types of failures that may occur in downloading, parsing, or decoding a manifest and its assets.

Enumerator
INVALID_URL	Occurs if the manifest URL provided is invalid.
NETWORK_ERROR	Occurs if while downloading, the HTTP request fails for any reason.
INVALID_ASSET	Occurs if while parsing or decoding, the asset is invalid for the specified type.
INVALID_MANIFEST	Occurs if the manifest is empty while attempting to fetch assets.

Constructor & Destructor Documentation

virtual CYIRemoteAssetCatalog::~CYIRemoteAssetCatalog ( )

virtual

CYIRemoteAssetCatalog::CYIRemoteAssetCatalog ( const CYIString & name )

protected

Constructs a CYIRemoteAssetCatalog initialized with name so that it can be retrieved later or shared with other objects.

See also: CYIAsset::SetName

Member Function Documentation

bool CYIRemoteAssetCatalog::AddAssetToDownloadList	(	const CYIString &	assetName,
		const CYIRuntimeTypeInfo &	assetTypeInfo
	)

Adds an asset named assetName and with the type assetTypeInfo to the list of assets to download. Returns false when the assetName is empty, or when the asset is already added to the download list.

Note: If a manifest download is in progress it will be cancelled.

void CYIRemoteAssetCatalog::CancelDownload ( )

Cancels the download of the manifest associated with this catalog and cancels the downloads of all assets.

void CYIRemoteAssetCatalog::ClearData ( )

Clears all of the downloaded undecoded data held by this catalog and the manifest. It will also remove all asset names from the download list.

static std::shared_ptr<CYIRemoteAssetCatalog> CYIRemoteAssetCatalog::Create ( const CYIString & name )

static

Returns a new instance of CYIRemoteAssetCatalog initialized with name.

Note: During the creation of the CYIRemoteAssetCatalog it will add itself to the asset manager using CYIAssetManager::AddAsset.

See also: CYIRemoteAssetCatalog

std::shared_ptr<CYIAsset> CYIRemoteAssetCatalog::DecodeAsset	(	const CYIString &	path,
		CYIAssetLoadParams *	pLoadParams = `nullptr`
	)		const

protected

Decodes an asset from the catalog with the given path, adds it to the CYIAssetManager, and returns it.

Note

Decoding may fail if:

The path is not a valid catalog path
The path is not valid for this catalog
The asset in the path is not in the download list for this catalog
The asset has not finished downloading
There is no data for the asset; or
The asset has not been downloaded

See also: CYIAssetLoader::Load

void CYIRemoteAssetCatalog::DownloadAssets ( )

Downloads the undecoded asset data of the named assets specified by calling AddAssetToDownloadList. This function will emit either AssetDownloadCompleted on success or AssetDownloadFailed on failure.

Note: The signals AssetDownloadCompleted and AssetDownloadFailed must be connected before calling this function.

void CYIRemoteAssetCatalog::DownloadManifest ( const CYIUrl & url )

Sets the URL of the manifest associated with this catalog to url and downloads it. This function will emit either ManifestDownloadCompleted on success or ManifestDownloadFailed on failure.

Note: If there are downloads in progress they will be cancelled.; This function will clear the downloaded, undecoded data of all of the assets. In-memory assets will not be cleared.

void CYIRemoteAssetCatalog::DownloadManifestAndAssets ( const CYIUrl & url )

Sets the URL of the manifest associated with this catalog to url, downloads it, and then downloads the assets specified by calling AddAssetToDownloadList.

Note: If there are downloads in progress they will be cancelled.; This function will clear the downloaded, undecoded data of all of the assets. In-memory assets will not be cleared.; The signals AssetDownloadCompleted and AssetDownloadFailed must be connected before calling this function.

See also: DownloadManifest; DownloadAssets

CYIString CYIRemoteAssetCatalog::GetAbsoluteCatalogUrlForAsset ( const CYIString & assetName ) const

Returns the absolute path to the asset with name assetName. The catalog url for an absolute path will be in the following format: (catalog://[ID]:abs/path/assetName).

virtual std::pair<uint32_t, uint32_t> CYIRemoteAssetCatalog::GetApproximateSize ( ) const

overridevirtual

Calculates and returns the approximate number of bytes currently used by this asset. The first item of the returned pair object represents the memory currently taken in the CPU main memory, and the second item of the returned pair object represents the memory currently taken in the GPU memory.

Note: This function only returns an approximate memory consumption as the exact memory consumption changes depending on the used C++ libraries and on the specific GPU infrastructure and drivers used by the system.

Reimplemented from CYIAsset.

std::shared_ptr<CYIAsset> CYIRemoteAssetCatalog::GetAsset ( const CYIString & assetName ) const

Decodes and returns an asset from the catalog with the given asset name, assetName.

See also: DecodeAsset; CYIAssetLoader::LoadFromPath

CYIUrl CYIRemoteAssetCatalog::GetAssetDownloadURL	(	const CYIString &	assetName,
		const CYIRuntimeTypeInfo &	typeInfo
	)		const

protected

Get the full download url for the given asset.

std::vector<CYIString> CYIRemoteAssetCatalog::GetAssetList ( ) const

Returns a list of asset names for the assets specified by calling AddAssetToDownloadList.

const CYIAssetManifest& CYIRemoteAssetCatalog::GetAssetManifest ( ) const

Returns the asset manifest contained in this catalog.

uint64_t CYIRemoteAssetCatalog::GetCatalogID ( ) const

Returns the ID of the catalog. The ID is generated and unique.

const std::vector<uint8_t>& CYIRemoteAssetCatalog::GetData ( const CYIString & assetName ) const

protected

Returns the undecoded, downloaded data for the asset added to this catalog with the name assetName. If the asset is not found or has not finished downloading it will return an empty vector.

CYIString CYIRemoteAssetCatalog::GetRelativeCatalogUrlForAsset ( const CYIString & assetName ) const

Returns the relative path to the asset with name assetName. The catalog url for an relative path will be in the following format: (catalog://[ID]:rel/assetName).

const CYIUrl& CYIRemoteAssetCatalog::GetUrl ( ) const

Returns the URL of the manifest associated with this catalog.

bool CYIRemoteAssetCatalog::IsAssetInDownloadList ( const CYIString & assetName ) const

Returns true if the asset with name assetName is in the list of assets to download.

See also: AddAssetToDownloadList

bool CYIRemoteAssetCatalog::IsManifestDownloaded ( ) const

Returns true if the manifest download completed successfully.

void CYIRemoteAssetCatalog::OnAssetDownloadCompleted ( const CYIUrl & url )

protected

Called when the asset with url has finished downloading.

void CYIRemoteAssetCatalog::OnAssetDownloadFailed	(	CYIRemoteAssetDownloadHelper::FAILURE_TYPE	eFailureType,
		const CYIUrl &	url
	)

protected

Called when the asset with url has failed downloading.

Note: This function will cancel all current downloads.

void CYIRemoteAssetCatalog::OnManifestDownloadCompleted	(	const std::shared_ptr< CYIHTTPRequest > &	pRequest,
		const std::shared_ptr< CYIHTTPResponse > &	pResponse,
		bool	bCachedResponse
	)

protected

Called when the catalog manifest download is complete to parse the manifest.

void CYIRemoteAssetCatalog::OnManifestDownloadFailed	(	const std::shared_ptr< CYIHTTPRequest > &	pRequest,
		const HTTP_STATUS_CODE	statusCode,
		const CYIString &	errorMessage
	)

protected

Called when the catalog manifest download has failed.

bool CYIRemoteAssetCatalog::QueueTemplateDependenciesForDownload ( const CYIString & assetName )

protected

Queues all of the dependencies for an asset from the catalog with the given assetName for download. Returns true if dependencies were added to the download list to download; false if there were no dependencies or all of the dependencies have already been added to the download list.

void CYIRemoteAssetCatalog::RemoveAssetFromDownloadList ( const CYIString & assetName )

Removes an asset with the name assetName from the list of assets to download.

Note: If the download of the asset with the name assetName is in progress it will cancel the current download, and clear any downloaded data.

Friends And Related Function Documentation

friend class CYIAssetLoader

friend

Member Data Documentation

CYISignal<const CYIUrl &> CYIRemoteAssetCatalog::AssetDownloadCompleted

Emitted when the download of the assets has finished and provides the URL of the completed manifest download.

CYISignal<const CYIUrl & , const FAILURE_TYPE, const CYIUrl & > CYIRemoteAssetCatalog::AssetDownloadFailed

Emitted when the download of the assets has failed and provides the URL of the manifest, the URL of the asset, and the failure reason.

CYISignal<const CYIUrl &> CYIRemoteAssetCatalog::DownloadCancelled

Emitted when the manifest download or asset download has been cancelled and provides the URL of the manifest.

CYISignal<const CYIUrl &> CYIRemoteAssetCatalog::ManifestDownloadCompleted

Emitted when the catalog download has completed and provides the URL of the completed manifest download.

CYISignal<const CYIUrl &, const FAILURE_TYPE> CYIRemoteAssetCatalog::ManifestDownloadFailed

Emitted when the download has failed and provides the URL of the failed manifest download with the failure reason.

The documentation for this class was generated from the following file:

asset/YiRemoteAssetCatalog.h

Detailed Description

Public Types

Public Member Functions

Static Public Member Functions

Public Attributes

Protected Member Functions

Friends

Additional Inherited Members

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
