Detailed Description

A dev widget used to display text to the user.

This dev widget can be configured in one of two modes: floating or non-floating.

In non-floating mode, which is the default, a full-screen view is displayed with the text in a scrolling view. Clicking the on-screen X or hitting the ESC key on a keyboard dismisses the view.

In floating mode, the text is overlaid on top of the app in one of the corners. Clicking the view moves it between the app corners.

The title of the widget is displayed at the top of the text view.

#include <debug/YiDevWidgetWithText.h>

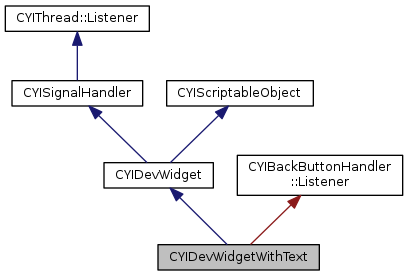

Inheritance diagram for CYIDevWidgetWithText:

[legend]

Public Member Functions
	CYIDevWidgetWithText (const CYIString &title="Untitled Text Widget", const CYIString &subtitle="")

virtual void	SetText (const CYIString &text, const CYIGeometryBatch::TextSettings &settings=CYIGeometryBatch::TextSettings())

void	AddLine (const CYIString &text, const CYIGeometryBatch::TextSettings &settings=CYIGeometryBatch::TextSettings())

void	SetFloatingMode (bool bFloating)

Public Member Functions inherited from CYIDevWidget
	CYIDevWidget (const CYIString &title, const CYIString &subtitle="")

virtual	~CYIDevWidget ()

bool	IsUsingIndicator () const

bool	IsUsingSimulatedKeys () const

bool	IsCapturingAllEvents () const

bool	IsUsingConfigurationItems () const

STATE	GetState () const

virtual const CYIString &	GetTitle () const

virtual const CYIString &	GetSubtitle () const

void	SetParentPanel (CYIDevPanel *pPanel, uint32_t uIndexInPanel)

uint32_t	GetIndexInPanel () const

void	UpdateWidgetState ()

virtual void	RefreshState ()

virtual void	OnConfigureButtonClicked ()

virtual void	OnConfigurationItemClicked (int32_t nButtonID)

virtual void	OnConfigurationSubpanelClosed ()

virtual bool	OnPreFilterEvent (const std::shared_ptr< CYIEventDispatcher > &pDispatcher, CYIEvent pEvent, CYIEventHandler pDestination)

void	SimulatePanelItemClicked ()

bool	SimulateKeyPress (const CYIKeyEvent &keyEvent)

void	SimulatedKeyPressesEnded ()

Public Member Functions inherited from CYISignalHandler
	CYISignalHandler ()

	CYISignalHandler (const CYISignalHandler &rSignalHandler)

virtual	~CYISignalHandler ()

CYISignalHandler &	operator= (const CYISignalHandler &rSignalHandler)

void	MoveToThread (CYIThread *pThread)
	This function allows the user to override the default thread affinity to any CYIThread that may or may not be running. More...

CYIThreadHandle	GetThreadAffinity () const

void	SetThreadAffinity (const CYIThreadHandle &rThreadAffinity)

virtual bool	IsConnected () const

virtual bool	IsConnected (const CYISignalBase &rSignal) const

void	Disconnect (CYISignalBase &rSignal)

void	DisconnectFromAllSignals ()

Public Member Functions inherited from CYIThread::Listener
	Listener ()

virtual	~Listener ()

virtual void	OnThreadStarted (CYIThread *)

virtual void	OnThreadTerminated (CYIThread *)

virtual void	OnThreadFinished (CYIThread *)

Public Member Functions inherited from CYIScriptableObject
	CYIScriptableObject ()

	CYIScriptableObject (const CYIScriptableObject &other)

CYIScriptableObject &	operator= (const CYIScriptableObject &other)

virtual	~CYIScriptableObject ()

CYIBindingImplementation *	GetBindingImplementation () const

void	SetBindingImplementation (CYIBindingImplementation *pBindingImplementation)

virtual const CYIRuntimeTypeInfo *	GetRuntimeTypeInfoForScriptObject () const

Protected Member Functions
virtual void	OnDraw () override

virtual bool	OnUpdate (bool *pbSkipUpdate=nullptr) override

virtual void	OnPanelItemClicked () override

virtual void	OnShow ()

virtual void	OnHide ()

virtual bool	OnHandleActionInputs (int32_t nX, int32_t nY, int32_t nWheelDelta, uint8_t uButton, YI_EVENT_TYPE eEventType, uint8_t uPointerID, bool bHover) override

virtual bool	OnHandleKeyInputs (const CYIKeyEvent &keyEvent) override

virtual bool	OnBackButtonPressed () override

void	UpdateText ()

void	OnClicked ()

Protected Member Functions inherited from CYIDevWidget
void	SetUseSimulatedKeys (bool bUseSimulatedKeys)

void	SetCaptureAllEvents (bool bCaptureAllEvents)

void	SetUsesConfigurationItems (bool bUsesConfigurationItems)

virtual std::vector< std::pair< CYIString, CYIString > >	GetConfigurationButtonTitles ()

CYISceneNode *	GetLogicalRoot () const

Additional Inherited Members
Public Types inherited from CYIDevWidget
enum	STATE { OFF, ON, STATELESS, DISABLED }

Protected Attributes inherited from CYIDevWidget
CYIDevPanel *	m_pParentPanel

uint32_t	m_uIndexInPanel

STATE	m_eState

CYIString	m_title

CYIString	m_subtitle

Constructor & Destructor Documentation

CYIDevWidgetWithText::CYIDevWidgetWithText	(	const CYIString &	title = `"Untitled Text Widget"`,
		const CYIString &	subtitle = `""`
	)

Member Function Documentation

void CYIDevWidgetWithText::AddLine	(	const CYIString &	text,
		const CYIGeometryBatch::TextSettings &	settings = `CYIGeometryBatch::TextSettings()`
	)

Adds a single line of text to the existing text. The line of text can be styled using the settings parameter.

virtual bool CYIDevWidgetWithText::OnBackButtonPressed ( )

overrideprotectedvirtual

Will be called when back button pressed is notified by NotifyBackButtonPressed if this listener is registered. Return true if the back button has been handled. Return false to pass the notification on to the next registered listener, or back to the system.

Note: Registered listeners are called in a Last In, First Out order.

Implements CYIBackButtonHandler::Listener.

void CYIDevWidgetWithText::OnClicked ( )

protected

Called when the floating text view is clicked.

virtual void CYIDevWidgetWithText::OnDraw ( )

overrideprotectedvirtual

Called during the app's Draw cycle. This is called after the scene tree has been rendered (and after the dev panel itself has been rendered). Widgets that make use of CYIGeometryBatch will typically want to implement this function.

Reimplemented from CYIDevWidget.

virtual bool CYIDevWidgetWithText::OnHandleActionInputs	(	int32_t	nX,
		int32_t	nY,
		int32_t	nWheelDelta,
		uint8_t	uButton,
		YI_EVENT_TYPE	eEventType,
		uint8_t	uPointerID,
		bool	bHover
	)

overrideprotectedvirtual

Called when an action input occurs. If true is returned, the input will not be propagated to the app.

Reimplemented from CYIDevWidget.

virtual bool CYIDevWidgetWithText::OnHandleKeyInputs ( const CYIKeyEvent & keyEvent )

overrideprotectedvirtual

Called when a key event occurs. If true is returned, the event will not be propagated to the app.

Reimplemented from CYIDevWidget.

virtual void CYIDevWidgetWithText::OnHide ( )

protectedvirtual

virtual void CYIDevWidgetWithText::OnPanelItemClicked ( )

overrideprotectedvirtual

Called when the widget's item in the dev panel is clicked. This is where a widgets should implement its behaviour. Widgets often update their state when this function is called.

Note: At a minimum, dev widgets must implement this function.

Implements CYIDevWidget.

virtual void CYIDevWidgetWithText::OnShow ( )

protectedvirtual

virtual bool CYIDevWidgetWithText::OnUpdate ( bool * pbSkipUpdate = nullptr )

overrideprotectedvirtual

Called during the app's Update cycle. This is called prior to the scene tree's update. The pbSkipUpdate boolean can be set to true to skip updating the scene tree. This function should return true if a draw is required.

Reimplemented from CYIDevWidget.

void CYIDevWidgetWithText::SetFloatingMode ( bool bFloating )

Sets the floating mode to bFloating. If this function is called with true, the text will be displayed in a floating overlay. Otherwise, the text will be displayed in a full-screen scrolling view.

virtual void CYIDevWidgetWithText::SetText	(	const CYIString &	text,
		const CYIGeometryBatch::TextSettings &	settings = `CYIGeometryBatch::TextSettings()`
	)

virtual

Sets the text to display to text. The text can be styled using the settings parameter.

'Quake-style' coloring is supported within the text. For example, 'A word in ^009blue' would display the word 'blue' in blue.

void CYIDevWidgetWithText::UpdateText ( )

protected

The documentation for this class was generated from the following file:

debug/YiDevWidgetWithText.h
