CYIAssetSound Class Reference

Detailed Description

Asset representing sound PCM data.

Contains raw PCM data used for audio playback. Like most assets, this asset type can be unloaded by calling CYIAsset::Unload().

#include <asset/YiAssetSound.h>

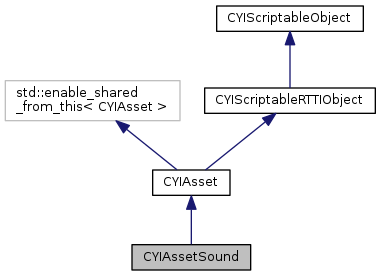

Inheritance diagram for CYIAssetSound:

Public Member Functions
	CYIAssetSound ()
	CYIAssetSound (const CYIString &fileName, PATH_TYPE ePathType=PATH_RELATIVE)
virtual	~CYIAssetSound ()
void	SetData (const float *pData, uint32_t uFrameCount, uint32_t uChannelCount)
const float *	GetData () const
uint32_t	GetFrameCount () const
uint32_t	GetChannelCount () const
Public Member Functions inherited from CYIAsset
virtual	~CYIAsset ()
const CYIString &	GetPath () const
CYIAssetLoadParams *	GetLoadParameters () const
bool	SetName (const CYIString &name)
const CYIString &	GetName () const
bool	Load ()
void	Unload ()
bool	IsLoaded () const
bool	Equals (const std::shared_ptr< CYIAsset > &pAsset)
virtual bool	Prepare ()
Public Member Functions inherited from CYIScriptableRTTIObject
	CYIScriptableRTTIObject ()
virtual	~CYIScriptableRTTIObject ()
virtual const CYIRuntimeTypeInfo *	GetRuntimeTypeInfoForScriptObject () const override
Public Member Functions inherited from CYIScriptableObject
	CYIScriptableObject ()
	CYIScriptableObject (const CYIScriptableObject &other)
CYIScriptableObject &	operator= (const CYIScriptableObject &other)
virtual	~CYIScriptableObject ()
CYIBindingImplementation *	GetBindingImplementation () const
void	SetBindingImplementation (CYIBindingImplementation *pBindingImplementation)

Protected Member Functions
virtual void	OnUnload () override
virtual std::pair< uint32_t, uint32_t >	GetApproximateSize () const override
Protected Member Functions inherited from CYIAsset
	CYIAsset ()
ssize_t	GetID () const
void	SetPath (const CYIString &path, PATH_TYPE ePathType)
void	SetApproximateSize (uint32_t nSize)
void	SetLoaded (bool bAssetLoaded)
void	SetLoadParameters (std::unique_ptr< CYIAssetLoadParams > pParams)
virtual void	OnLoad ()
Protected Member Functions inherited from CYIScriptableRTTIObject
virtual std::pair< const CYIRuntimeTypeInfo *, const void * >	GetRuntimeTypeInfoWithObject () const =0

Additional Inherited Members
Public Types inherited from CYIAsset
enum	PATH_TYPE {   PATH_ABSOLUTE = 0,   PATH_RELATIVE }
Static Protected Attributes inherited from CYIAsset
static ssize_t	INVALID_ID

Constructor & Destructor Documentation

CYIAssetSound::CYIAssetSound

(

)

CYIAssetSound::CYIAssetSound	(	const CYIString &	fileName,
		PATH_TYPE	ePathType = PATH_RELATIVE
	)

virtual CYIAssetSound::~CYIAssetSound ( )

virtual

Member Function Documentation

virtual std::pair<uint32_t, uint32_t> CYIAssetSound::GetApproximateSize ( ) const

overrideprotectedvirtual

Calculates and returns the approximate number of bytes currently used by this asset. The first item of the returned pair object represents the memory currently taken in the CPU main memory, and the second item of the returned pair object represents the memory currently taken in the GPU memory.

Note

This function only returns an approximate memory consumption as the exact memory consumption changes depending on the used C++ libraries and on the specific GPU infrastructure and drivers used by the system.

Reimplemented from CYIAsset.

uint32_t CYIAssetSound::GetChannelCount

(

)

const

Gets the channel count. For a mono sound, this will return 1. For a Stereo sound, 2 is returned. etc..

const float* CYIAssetSound::GetData

(

)

const

Returns the raw PCM data for this sound. Returned data is an array the size of GetFrameCount() * GetChannelCount(). Each sample in the returned data is ranged from -1 to 1.

uint32_t CYIAssetSound::GetFrameCount

(

)

const

Gets the audio frame count for this sound. A frame is as big as GetChannelCount().

virtual void CYIAssetSound::OnUnload ( )

overrideprotectedvirtual

Reimplemented from CYIAsset.

void CYIAssetSound::SetData	(	const float *	pData,
		uint32_t	uFrameCount,
		uint32_t	uChannelCount
	)

Sets the raw PCM data for this sound. pData should be an array of size uFrameCount * uChannelCount. Each sample in pData is ranged from -1 to 1.

---

The documentation for this class was generated from the following file:

• asset/YiAssetSound.h
