Detailed Description

An abstract video player that provides a basic interface that all subclasses must implement.

The abstract video player provides all the basic functionality expected of a standard video player. This video player must be subclassed and implemented in a concrete way. Basic player functionality and signals are provided by the abstract video player. The abstract video player contains a CYIVideoPlayerStateManager which is responsible for maintaining valid player states for the abstract video player. When implementing a concrete player state transitions must be made through the CYIVideoPlayerStateManager. See the class level documentation of CYIVideoPlayerStateManager for further detail on state transitions in the video player.

CYIDefaultVideoPlayerFactory is provided to construct the default concrete player for the current platform.

CYIAbstractVideoPlayer and each provided concrete implementation is equipped with RTTI. This enables dynamic casting to a concrete player in order to safely use APIs specific to the desired player. It is recommended to use the CYIAbstractVideoPlayer type whenever possible. For example:

CYIExoPlayerVideoPlayer *pExoPlayerVideoPlayer = YiDynamicCast<CYIExoPlayerVideoPlayer>(pAbstractPlayer);
if (pExoPlayerVideoPlayer)
{
    // Use functions specific to the ExoPlayer video player here.
}
// Play() is available on CYIAbstractVideoPlayer so there is no need to use a concrete type.
pAbstractPlayer->Play();

Note: Some of the implementations of CYIAbstractVideoPlayer provided by You.i Engine only support one instance.

#include <player/YiAbstractVideoPlayer.h>

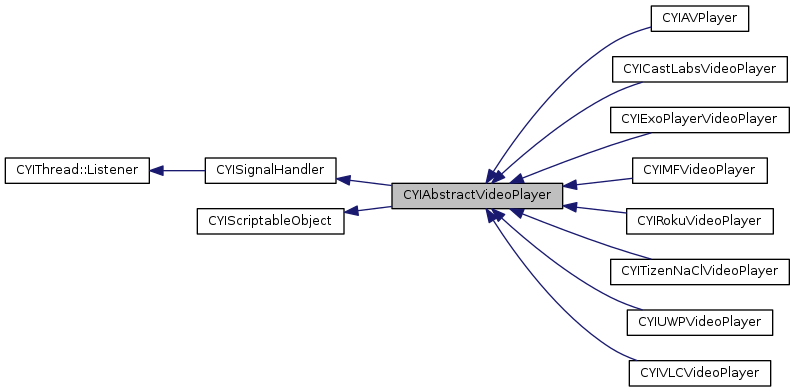

Inheritance diagram for CYIAbstractVideoPlayer:

[legend]

Classes
struct	AudioTrackInfo

struct	ClosedCaptionsTrackInfo

class	DRMConfiguration
	The base class for all DRM configurations. More...

struct	Error

struct	PlayerState

struct	Statistics

struct	TrackInfo

Public Types
enum	MEDIA_STATE { MEDIA_UNLOADED, MEDIA_PREPARING, MEDIA_READY }

enum	PLAYBACK_STATE { PLAYBACK_PLAYING, PLAYBACK_PAUSED, PLAYBACK_BUFFERING }

enum	STREAMING_FORMAT { HLS = 0, SMOOTH, DASH, MP4 }

enum	DRM_SCHEME { DRM_NONE = 0, DRM_FAIRPLAY, DRM_PLAYREADY, DRM_WIDEVINE_MODULAR }

enum	ERROR_CODE { PLAYBACK_ERROR, UNSUPPORTED_FORMAT, STATE_TRANSITION_ERROR, DRM_ERROR, UNKNOWN }

using	VideoMetadata = std::map< CYIString, CYIString >

Public Member Functions
virtual	~CYIAbstractVideoPlayer ()

CYIString	GetName () const

CYIString	GetVersion () const

Statistics	GetStatistics () const

void	Init ()

void	Prepare (const CYIUrl &videoURI, STREAMING_FORMAT eFormatHint, CYIAbstractVideoPlayer::PLAYBACK_STATE eInitialState=CYIAbstractVideoPlayer::PLAYBACK_PAUSED, std::unique_ptr< DRMConfiguration > pDRMConfiguration=nullptr)

void	Prepare (const std::shared_ptr< CYIAssetVideo > &videoAsset, STREAMING_FORMAT eFormatHint, CYIAbstractVideoPlayer::PLAYBACK_STATE eInitialState=CYIAbstractVideoPlayer::PLAYBACK_PAUSED, std::unique_ptr< DRMConfiguration > pDRMConfiguration=nullptr)

void	Play ()

void	Pause ()

void	Stop ()

void	Seek (uint64_t uSeekPositionMs)

bool	SupportsFormat (STREAMING_FORMAT eStreamingFormat, DRM_SCHEME eDRMScheme=DRM_NONE)

uint64_t	GetDurationMs () const

uint64_t	GetCurrentTimeMs () const

CYIAbstractVideoPlayer::PlayerState	GetPlayerState () const

bool	AreClosedCaptionsTracksAvailable () const

bool	SelectClosedCaptionsTrack (uint32_t uID)

std::vector< ClosedCaptionsTrackInfo >	GetClosedCaptionsTracks () const

ClosedCaptionsTrackInfo	GetActiveClosedCaptionsTrack () const

CYIClosedCaptionsDispatcher *	GetClosedCaptionsDispatcher () const

CYIVideoSurface *	GetSurface () const

bool	AreAudioTracksAvailable () const

bool	SelectAudioTrack (uint32_t uID)

std::vector< AudioTrackInfo >	GetAudioTracks () const

AudioTrackInfo	GetActiveAudioTrack () const

bool	IsMuted () const

void	Mute (bool bMute)

void	SetMaxBitrate (uint64_t uMaxBitrate)

void	SetUserAgent (const CYIString &userAgent)

void	SetVideoMetadata (const CYIAbstractVideoPlayer::VideoMetadata &metadata)

const DRMConfiguration *	GetDRMConfiguration () const

DRMConfiguration *	GetDRMConfiguration ()

Public Member Functions inherited from CYISignalHandler
	CYISignalHandler ()

	CYISignalHandler (const CYISignalHandler &rSignalHandler)

virtual	~CYISignalHandler ()

CYISignalHandler &	operator= (const CYISignalHandler &rSignalHandler)

void	MoveToThread (CYIThread *pThread)
	This function allows the user to override the default thread affinity to any CYIThread that may or may not be running. More...

CYIThreadHandle	GetThreadAffinity () const

void	SetThreadAffinity (const CYIThreadHandle &rThreadAffinity)

virtual bool	IsConnected () const

virtual bool	IsConnected (const CYISignalBase &rSignal) const

void	Disconnect (CYISignalBase &rSignal)

void	DisconnectFromAllSignals ()

Public Member Functions inherited from CYIThread::Listener
	Listener ()

virtual	~Listener ()

virtual void	OnThreadStarted (CYIThread *)

virtual void	OnThreadTerminated (CYIThread *)

virtual void	OnThreadFinished (CYIThread *)

Public Member Functions inherited from CYIScriptableObject
	CYIScriptableObject ()

	CYIScriptableObject (const CYIScriptableObject &other)

CYIScriptableObject &	operator= (const CYIScriptableObject &other)

virtual	~CYIScriptableObject ()

CYIBindingImplementation *	GetBindingImplementation () const

void	SetBindingImplementation (CYIBindingImplementation *pBindingImplementation)

virtual const CYIRuntimeTypeInfo *	GetRuntimeTypeInfoForScriptObject () const

Public Attributes
CYISignal	BufferingStarted

CYISignal	BufferingEnded

CYISignal< Error >	ErrorOccurred

CYISignal	Preparing

CYISignal	Ready

CYISignal	Playing

CYISignal	Paused

CYISignal	PlaybackComplete

CYISignal	Finalized

CYISignal< uint64_t >	CurrentTimeUpdated

CYISignal< uint64_t >	DurationChanged

CYISignal< const CYIAbstractVideoPlayer::PlayerState & >	PlayerStateChanged

CYISignal< std::vector< AudioTrackInfo > >	AvailableAudioTracksChanged

CYISignal< std::vector< ClosedCaptionsTrackInfo > >	AvailableClosedCaptionsTracksChanged

Protected Member Functions
	CYIAbstractVideoPlayer ()

const std::shared_ptr< CYIMaterial > &	GetVideoMaterial () const

void	SetVideoSurfaceSize (const glm::ivec2 &size)

void	ChangeInitialPlaybackState (CYIAbstractVideoPlayer::PLAYBACK_STATE eInitialState)

CYIAbstractVideoPlayer::PLAYBACK_STATE	GetRequestedInitialPlaybackState () const

void	CheckAndNotifyMediaTracksChanged ()

void	UpdateCurrentTime ()

Protected Attributes
CYISignal< Error >	NotifyErrorOccurred

CYISignal	NotifyPlaybackComplete

CYISignal< uint64_t >	NotifyDurationChanged

std::unique_ptr< CYIVideoPlayerStateManager >	m_pStateManager

std::unique_ptr< CYIClosedCaptionsDispatcher >	m_pClosedCaptionsDispatcher

std::shared_ptr< DRMConfiguration >	m_pDRMConfiguration

uint64_t	m_uMaxBitrate

Friends
class	CYIVideoPlayerStateManager

class	TimeUpdater

Member Typedef Documentation

using CYIAbstractVideoPlayer::VideoMetadata = std::map<CYIString, CYIString>

Alias type for metadata associated with video.

See also: CYIAbstractVideoPlayer::SetVideoMetadata

Member Enumeration Documentation

enum CYIAbstractVideoPlayer::DRM_SCHEME

Enumeration of available DRM schemes.

See also: SupportsFormat()

Enumerator
DRM_NONE
DRM_FAIRPLAY
DRM_PLAYREADY
DRM_WIDEVINE_MODULAR

enum CYIAbstractVideoPlayer::ERROR_CODE

Enumeration of the possible errors which the player can emit.

See also: CYIAbstractVideoPlayer::ErrorOccurred

Enumerator
PLAYBACK_ERROR	Indicates that an error occurred during playback of the video media. This may occur at anytime which the media state is not CYIAbstractVideoPlayer::MEDIA_UNLOADED.
UNSUPPORTED_FORMAT	Indicates that the combination of eFormatHint and pDRMConfiguration provided to Prepare() is not supported by the current player/platform.
STATE_TRANSITION_ERROR	Indicates that the player has transitioned into an invalid state. See also CYIVideoPlayerStateManager
DRM_ERROR
UNKNOWN	< Indicates that an error occured when attempting to process DRM protected content. Indicates that an unknown error has occurred in the player.

enum CYIAbstractVideoPlayer::MEDIA_STATE

Enumeration of the states relating to the preparation of media for the video player.

See also: GetPlayerState(); CYIVideoPlayerStateManager

Enumerator

MEDIA_UNLOADED

Represents that no video media is currently loaded into the player for playback. This is the default media state for the player.

See also: Stop()

MEDIA_PREPARING

Represents that the video media has been provided to the player and is in the process of being loaded for playback.

See also: Prepare(); CYIAbstractVideoPlayer::Preparing

MEDIA_READY

Represents that the video media is loaded into the player and ready for playback. When the player is in this state the player will also have a valid CYIAbstractVideoPlayer::PLAYBACK_STATE.

See also: CYIAbstractVideoPlayer::Ready

enum CYIAbstractVideoPlayer::PLAYBACK_STATE

Enumeration of the states relating to the current media playback state for the video player. These states are only relevant when the player's media state is CYIAbstractVideoPlayer::MEDIA_READY.

See also: GetPlayerState(); CYIVideoPlayerStateManager

Enumerator

PLAYBACK_PLAYING

Represents that the video player is currently playing the video media.

See also: Play(); CYIAbstractVideoPlayer::Playing

PLAYBACK_PAUSED

Represents that the video player is currently paused.

See also: Pause(); CYIAbstractVideoPlayer::Paused

PLAYBACK_BUFFERING

Represents that the video player is buffering the video media for playback. The player will enter this state when it requires additonal data before playback can resume.

See also: Pause(); CYIAbstractVideoPlayer::BufferingStarted; CYIAbstractVideoPlayer::BufferingEnded

enum CYIAbstractVideoPlayer::STREAMING_FORMAT

Enumeration of available video media streaming formats.

See also: SupportsFormat()

Enumerator
HLS
SMOOTH
DASH
MP4

Constructor & Destructor Documentation

virtual CYIAbstractVideoPlayer::~CYIAbstractVideoPlayer ( )

virtual

CYIAbstractVideoPlayer::CYIAbstractVideoPlayer ( )

protected

Member Function Documentation

bool CYIAbstractVideoPlayer::AreAudioTracksAvailable ( ) const

Returns true if the audio tracks for the current media have been loaded. Returns false if the tracks are currently unavailable.

See also: AvailableAudioTracksChanged

bool CYIAbstractVideoPlayer::AreClosedCaptionsTracksAvailable ( ) const

Returns true if the closed captions tracks for the current media have been loaded. Returns false if the tracks are currently unavailable.

Once tracks become available they can be selected at which point they will begin rendering.

See also: AvailableClosedCaptionsTracksChanged

void CYIAbstractVideoPlayer::ChangeInitialPlaybackState ( CYIAbstractVideoPlayer::PLAYBACK_STATE eInitialState )

protected

Changes the playback state which the player will be in when media is loaded and in the CYIAbstractVideoPlayer::MEDIA_READY state.

See also: Prepare.

void CYIAbstractVideoPlayer::CheckAndNotifyMediaTracksChanged ( )

protected

Queries audio and closed captioning track availability and emits CYIAbstractVideoPlayer::AvailableAudioTracksChanged and CYIAbstractVideoPlayer::AvailableClosedCaptionsTracksChanged respectively if applicable. Is called each 1000 ms if the player has been prepared and has not been stopped, but can be called manually to check and notify at any time.

AudioTrackInfo CYIAbstractVideoPlayer::GetActiveAudioTrack ( ) const

Returns information about the audio track which is currently selected.

If the media has no audio tracks or if audio tracks are unavailable this method will return an AudioTrackInfo that has AudioTrackInfo::bIsValid set to false.

See also: AreAudioTracksAvailable

ClosedCaptionsTrackInfo CYIAbstractVideoPlayer::GetActiveClosedCaptionsTrack ( ) const

Returns information about the closed captions track which is currently selected.

If the media has no closed captions tracks or if closed captions tracks are unavailable this method will return a ClosedCaptionsTrackInfo that has a ClosedCaptionsTrackInfo::uID of ClosedCaptionsTrackInfo::OFF_TRACK_ID.

See also: AreClosedCaptionsTracksAvailable

std::vector<AudioTrackInfo> CYIAbstractVideoPlayer::GetAudioTracks ( ) const

Returns information about the audio tracks for the currently loaded media.

These may become available at any point during preparation and playback. This API reflects what is currently available from the media. Connect to CYIAbstractVideoPlayer::AudioTracksAvailabilityChanged to get the tracks as soon as they are available.

If the video does not have any audio tracks, then a vector of size 0 is returned.

See also: SelectAudioTrack; AreAudioTracksAvailable

CYIClosedCaptionsDispatcher* CYIAbstractVideoPlayer::GetClosedCaptionsDispatcher ( ) const

std::vector<ClosedCaptionsTrackInfo> CYIAbstractVideoPlayer::GetClosedCaptionsTracks ( ) const

Returns information about the closed captions tracks for the currently loaded media.

These may become available at any point during preparation and playback. This API reflects what is currently available from the media. Connect to CYIAbstractVideoPlayer::AvailableClosedCaptionsTracksChanged to get the tracks as soon as they are available.

A track with special value ClosedCaptionsTrackInfo::OFF_TRACK_ID is always present and is used to disable closed captions rendering.

See also: SelectClosedCaptionsTrack; AreClosedCaptionsTracksAvailable

uint64_t CYIAbstractVideoPlayer::GetCurrentTimeMs ( ) const

Returns the current playback time of the video in milliseconds. Returns 0 prior to the emission of the CYIAbstractVideoPlayer::DurationChanged signal for the current video media.

const DRMConfiguration* CYIAbstractVideoPlayer::GetDRMConfiguration ( ) const

Returns the current DRM configuration that was provided when the player was prepared.

Note: The player retains ownership of the DRM configuration.

See also: Prepare

DRMConfiguration* CYIAbstractVideoPlayer::GetDRMConfiguration ( )

Returns the current DRM configuration that was provided when the player was prepared.

Note: The player retains ownership of the DRM configuration.

See also: Prepare

uint64_t CYIAbstractVideoPlayer::GetDurationMs ( ) const

Returns the duration of the video in milliseconds. Returns 0 if the player is in the CYIAbstractVideoPlayer::MEDIA_UNLOADED state.

CYIString CYIAbstractVideoPlayer::GetName ( ) const

Returns the name of the player.

CYIAbstractVideoPlayer::PlayerState CYIAbstractVideoPlayer::GetPlayerState ( ) const

Returns the current state of the player.

See also: CYIVideoPlayerStateManager

CYIAbstractVideoPlayer::PLAYBACK_STATE CYIAbstractVideoPlayer::GetRequestedInitialPlaybackState ( ) const

protected

Returns the initial playback state requested when media was loaded with Prepare().

Statistics CYIAbstractVideoPlayer::GetStatistics ( ) const

Returns the latest statistics from the player.

CYIVideoSurface* CYIAbstractVideoPlayer::GetSurface ( ) const

Returns the player surface into which the video is being rendered. This is owned by the player and must not be deleted or retained independently.

CYIString CYIAbstractVideoPlayer::GetVersion ( ) const

Returns the version of the player.

Note: The default implementation simply returns the version of the Engine.

See also: CYIVersion::GetVersionString

const std::shared_ptr<CYIMaterial>& CYIAbstractVideoPlayer::GetVideoMaterial ( ) const

protected

Returns the material associated with the player's CYIVideoSurface. If the CYIVideoSurface::GetCapabilities() reports that it does not render to texture this will be null.

void CYIAbstractVideoPlayer::Init ( )

Initializes the player and its video surface.

Note: This must be called directly after creating a CYIAbstractVideoPlayer instance and before Prepare().

bool CYIAbstractVideoPlayer::IsMuted ( ) const

See also: Mute

void CYIAbstractVideoPlayer::Mute ( bool bMute )

Mute the player, so that no audio is played. By default the player is not muted.

void CYIAbstractVideoPlayer::Pause ( )

Pauses video playback.

Note: This will assert in a debug build if the player is not in the CYIAbstractVideoPlayer::MEDIA_READY state.

void CYIAbstractVideoPlayer::Play ( )

Starts the playback of the prepared video asset, or resumes playback if the player is paused.

Note: This will assert in a debug build if the player is not in the CYIAbstractVideoPlayer::MEDIA_READY state.

void CYIAbstractVideoPlayer::Prepare	(	const CYIUrl &	videoURI,
		STREAMING_FORMAT	eFormatHint,
		CYIAbstractVideoPlayer::PLAYBACK_STATE	eInitialState = `CYIAbstractVideoPlayer::PLAYBACK_PAUSED`,
		std::unique_ptr< DRMConfiguration >	pDRMConfiguration = `nullptr`
	)

Prepares the player with the provided video file at videoURI.

The eFormatHint and the scheme of the pDRMConfiguration will be validated against the player. If the player does not support the specified format/DRM scheme, a CYIAbstractVideoPlayer::UNSUPPORTED_FORMAT error will be emitted. If the format hint does not match the actual content of the URI, then the player may encounter a playback error or proceed without any error.

If the prepare operation was successful the player will transition into the CYIAbstractVideoPlayer::MEDIA_READY state. eInitialState represents the state the player will be in after Prepare() completes.

Note: If the player is not in the CYIAbstractVideoPlayer::MEDIA_UNLOADED state the current video media will be stopped/unloaded before preparing. Init() must be called prior to Prepare().

See also: GetDRMConfiguration

void CYIAbstractVideoPlayer::Prepare	(	const std::shared_ptr< CYIAssetVideo > &	videoAsset,
		STREAMING_FORMAT	eFormatHint,
		CYIAbstractVideoPlayer::PLAYBACK_STATE	eInitialState = `CYIAbstractVideoPlayer::PLAYBACK_PAUSED`,
		std::unique_ptr< DRMConfiguration >	pDRMConfiguration = `nullptr`
	)

Prepares the player with the provided video file at videoAsset. If videoAsset is null, an error will be reported.

See also: Prepare(const CYIUrl &, STREAMING_FORMAT, CYIAbstractVideoPlayer::PLAYBACK_STATE, std::shared_ptr<DRMConfiguration>)

void CYIAbstractVideoPlayer::Seek ( uint64_t uSeekPositionMs )

Seek to uSeekPositionMs in the video, in milliseconds.

Note: This will assert in a debug build if the player is not in the CYIAbstractVideoPlayer::MEDIA_READY state.

bool CYIAbstractVideoPlayer::SelectAudioTrack ( uint32_t uID )

Switches the video player's audio to the track indicated by the given uID.

If the video is playing, playback will not be stopped during the switch.

Returns true if the track exists and was successfully selected.

Returns false if no track with uID is available.

bool CYIAbstractVideoPlayer::SelectClosedCaptionsTrack ( uint32_t uID )

Switches the video player's closed captions track to the track indicated by the given uID.

If the video is playing, playback will not be stopped during the switch.

Returns true if the track exists and was successfully selected, note that selection may take time to take effect. ClosedCaptionsTrackInfo::OFF_TRACK_ID is a special value used to disable closed captions rendering.

Returns false if no track with uID is available, or if uID is not ClosedCaptionsTrackInfo::OFF_TRACK_ID.

See also: AreClosedCaptionsTracksAvailable; AvailableClosedCaptionsTracksChanged

void CYIAbstractVideoPlayer::SetMaxBitrate ( uint64_t uMaxBitrate )

Sets the maximum bitrate to uMaxBitrate, in bits per second, which the player will use when streaming from an adaptive media source. By default there is no bitrate restriction applied.

Note: Setting the maximum bitrate during playback may take time to take effect due to content that has already been buffered.; For the Tizen platform max bitrate must be set before preparing the media.; Setting uMaxBitrate to 0 will remove any bitrate restrictions.

void CYIAbstractVideoPlayer::SetUserAgent ( const CYIString & userAgent )

Set the user agent to be used by the player for requests on manifests and video segments.

Note: Setting the User Agent should be done before a call to Prepare. Otherwise it might have no effect on current playback.; The default User Agent will vary depending on the platform.; Setting the User Agent to empty string "" will reset it to the default.; Only implemented on PS4 and XBoxOne currently.

void CYIAbstractVideoPlayer::SetVideoMetadata ( const CYIAbstractVideoPlayer::VideoMetadata & metadata )

void CYIAbstractVideoPlayer::SetVideoSurfaceSize ( const glm::ivec2 & size )

protected

Sets the video surface size, in pixels.

void CYIAbstractVideoPlayer::Stop ( )

Stops the video playback. This will unload the current video and set the player into the CYIAbstractVideoPlayer::MEDIA_UNLOADED state.

bool CYIAbstractVideoPlayer::SupportsFormat	(	STREAMING_FORMAT	eStreamingFormat,
		DRM_SCHEME	eDRMScheme = `DRM_NONE`
	)

Query the player to determine if eStreamingFormat and eDRMScheme combination is supported by the player. Returns true if the provided format and DRM scheme combination is supported by the player.

void CYIAbstractVideoPlayer::UpdateCurrentTime ( )

protected

Refreshes the playback time internal to the CYIAbstractVideoPlayer. Emits CYIAbstractVideoPlayer::CurrentTimeUpdated and calls the associated caption render's IYIClosedCaptionsRenderer::OnVideoTimeUpdated if the time has changed since the last time this method was called.

Friends And Related Function Documentation

friend class CYIVideoPlayerStateManager

friend

friend class TimeUpdater

friend

Member Data Documentation

CYISignal<std::vector<AudioTrackInfo> > CYIAbstractVideoPlayer::AvailableAudioTracksChanged

Signals that the available audio tracks for the current media have changed. This may be emitted at any point.

CYISignal<std::vector<ClosedCaptionsTrackInfo> > CYIAbstractVideoPlayer::AvailableClosedCaptionsTracksChanged

Signals that the available closed captions tracks for the current media have changed. This may be emitted at any point.

CYISignal CYIAbstractVideoPlayer::BufferingEnded

Player buffering ended notification. An application can clear a buffering indicator, if one has been displayed, when this signal is emitted. After this signal is emitted the player will be in the CYIAbstractVideoPlayer::PLAYBACK_PLAYING or CYIAbstractVideoPlayer::PLAYBACK_PAUSED state depending on the state the player was in prior to entering the CYIAbstractVideoPlayer::PLAYBACK_BUFFERING state.

See also: BufferingStarted

CYISignal CYIAbstractVideoPlayer::BufferingStarted

Player buffering started notification. An application can display a buffering indicator when this signal is emitted. After this signal is emitted the player will be in the CYIAbstractVideoPlayer::PLAYBACK_BUFFERING state.

See also: BufferingEnded

CYISignal<uint64_t> CYIAbstractVideoPlayer::CurrentTimeUpdated

Signals that the current time in the video playback has updated.

See also: GetCurrentTimeMs()

CYISignal<uint64_t> CYIAbstractVideoPlayer::DurationChanged

Signals that the duration of the loaded video media has changed. This typically occurs after loading new video media with a call to Prepare(). It is recommended to update the duration visible to the application user when this signal is emitted.

Note: In most cases GetDurationMs() will only be valid after this signal is emitted for the current video media.

CYISignal<Error> CYIAbstractVideoPlayer::ErrorOccurred

Player reported an error. An application can display an error notification his signal is emitted.

Note: Prior to receiving this signal the player will have transitioned into the CYIAbstractVideoPlayer::MEDIA_UNLOADED state.

CYISignal CYIAbstractVideoPlayer::Finalized

Signals that the player has shutdown and cleaned up. On PlayStation 3 and PlayStation 4, the player will stall if deleted or prepared while already being stopped. It is recommanded to listen to this signal before doing so. On other platforms this signal is sent right away on Stop().

Note: If player deletion or state change are intended in this callback, the handler has to be connected using YI_CONNECTION_ASYNC.

std::unique_ptr<CYIClosedCaptionsDispatcher> CYIAbstractVideoPlayer::m_pClosedCaptionsDispatcher

protected

The closed captions dispatcher of this player. This is used to dispatch closed caption cues to the surface view's rendering scene node.

Note: Not all player implementations require a closed captions dispatcher. Only players which do not do their own rendering require a dispatcher.; Concrete implementations of this class which require a closed captions dispatcher must assign an instance of CYIClosedCaptionsDispatcher to this variable.

See also: GetClosedCaptionsDispatcher()

std::shared_ptr<DRMConfiguration> CYIAbstractVideoPlayer::m_pDRMConfiguration

protected

The DRM configuration that was provided to the player when CYIAbstractVideoPlayer::Prepare was called. This configuration will be provided when the media is DRM protected. Concrete player implementations must use this configuration to prepare the DRM protected media for playback.

Note: This configuration will be null when the media is not DRM protected.

std::unique_ptr<CYIVideoPlayerStateManager> CYIAbstractVideoPlayer::m_pStateManager

protected

The CYIAbstractVideoPlayer's instance of the CYIVideoPlayerStateManager. This is used to manage media and state transitions within the player.

Note: Subclasses must report media and player state changes to this manager. Failing to report state changes following the guidelines presented in CYIVideoPlayerStateManager will prevent the video player from functioning.

See also: CYIVideoPlayerStateManager

uint64_t CYIAbstractVideoPlayer::m_uMaxBitrate

protected

The last known maximum bitrate.

CYISignal<uint64_t> CYIAbstractVideoPlayer::NotifyDurationChanged

protected

Notifies the CYIAbstractVideoPlayer that the duration of the current video media has changed. This typically only occurs when the media is changed.

Note: The CYIAbstractVideoPlayer listens for this signal, subclasses must emit this signal to properly handle video media duration changes.

CYISignal<Error> CYIAbstractVideoPlayer::NotifyErrorOccurred

protected

Notifies the CYIAbstractVideoPlayer that an error has occured, this will transition the player into the CYIAbstractVideoPlayer::MEDIA_UNLOADED state. The CYIAbstractVideoPlayer::Error object parameter should be populated with the error that has occured.

Note: The CYIAbstractVideoPlayer listens for this signal, subclasses must emit this signal to achieve proper error handling in the CYIAbstractVideoPlayer.

CYISignal CYIAbstractVideoPlayer::NotifyPlaybackComplete

protected

Notifies the CYIAbstractVideoPlayer that the video has reached the end of stream for the current video media.

Note: The CYIAbstractVideoPlayer listens for this signal, subclasses must emit this signal to properly handle the event where the current video media has played for the entire duration of the stream.

CYISignal CYIAbstractVideoPlayer::Paused

Signals that playback has paused. After this signal is emitted the player will be in the CYIAbstractVideoPlayer::PLAYBACK_PAUSED state.

CYISignal CYIAbstractVideoPlayer::PlaybackComplete

Signals that the playback of the currently loaded video media has completed. After this signal is emitted the player will be in the CYIAbstractVideoPlayer::PLAYBACK_PAUSED state.

Note: It is possible to transition back into the CYIAbstractVideoPlayer::PLAYBACK_PLAYING state by using a Seek() operation after this signal is emitted. This signal will be emitted each time the video media reaches the end of stream.

CYISignal<const CYIAbstractVideoPlayer::PlayerState &> CYIAbstractVideoPlayer::PlayerStateChanged

Signals that the internal player state has changed.

CYISignal CYIAbstractVideoPlayer::Playing

Signals that playback has began. This can either be the initial playback or playback resuming after CYIAbstractVideoPlayer::PLAYBACK_PAUSED or CYIAbstractVideoPlayer::PLAYBACK_BUFFERING states. After this signal is emitted the player will be in the CYIAbstractVideoPlayer::PLAYBACK_PLAYING state.

CYISignal CYIAbstractVideoPlayer::Preparing

Signals that the the player has started preparing a video for playback. This occurs after a call to Prepare() given the provided video format is supported by the target platform. After this signal is emitted the player will be in the CYIAbstractVideoPlayer::MEDIA_PREPARING state.

CYISignal CYIAbstractVideoPlayer::Ready

Signals that the call to Prepare() was successful. The video is ready to be interacted with and information about the video can be queried. After this signal is emitted the player will be in the CYIAbstractVideoPlayer::MEDIA_READY state.

The documentation for this class was generated from the following file:

player/YiAbstractVideoPlayer.h

Detailed Description

Classes

Public Types

Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Friends

Member Typedef Documentation

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
