C1
Cabinet Specifications
Specifications and Options
Cabinet
Specifications

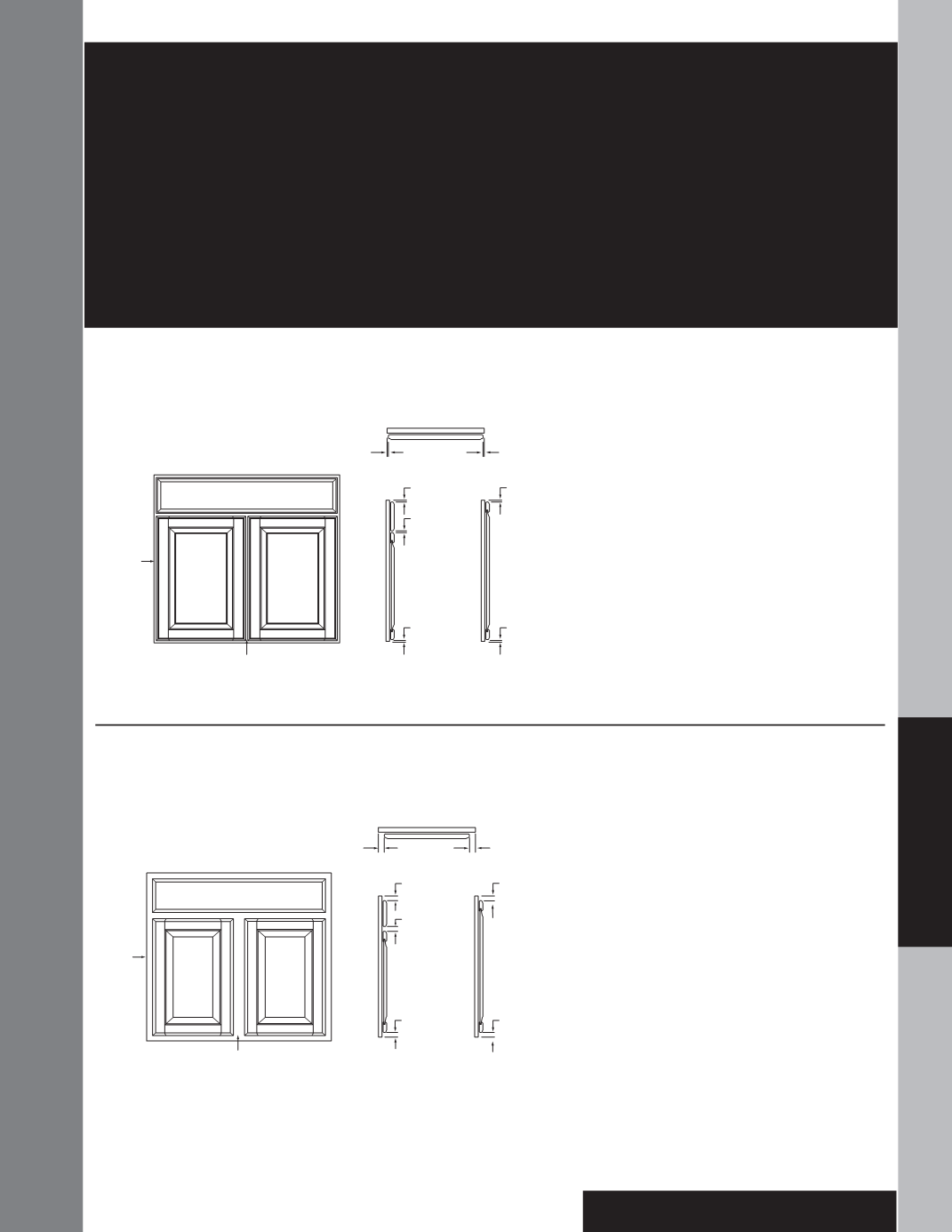

Full Overlay – Concealed Hinges
• Full Overlay doors leave 3/16˝ of the cabinet’s face frame
exposed on either side of the doors and 3/8” exposed between
doors
• Butt door cabinets have 1/8” reveal between doors
• Nickel-finished, self-closing hinges, 6-way adjustable to allow
for perfect alignment
• The reveals shown here may vary slightly on some cabinets
due to actual door/drawer front sizes used. Refer to the
replacement part section of the book for actual door/drawer
sizes for specific cabinets
⁄"
reveal
⅜"
reveal
top view
side view
⁄"
⁄"
⅜"
⅜"
⅜"
⅜"
⅜"
Partial Overlay – Concealed Hinges
• Partial overlay doors leave 7/8” of the cabinet’s face frame
exposed on either side of the doors and 1 3/4” exposed
between doors
• Butt door cabinets have 1/8” reveal between doors
• Nickel-finished, self-closing hinges, 6-way adjustable to allow
for perfect alignment
• The reveals shown here may vary slightly on some cabinets
due to actual door/drawer front sizes used. Refer to the
replacement part section of the book for actual door/drawer
sizes for specific cabinets
⅞" reveal
1¾" reveal
⅞"
⅞"
top view
side view
1"
1"
1"
1"
1"
