Base Cabinets
E13
Base Cabinets

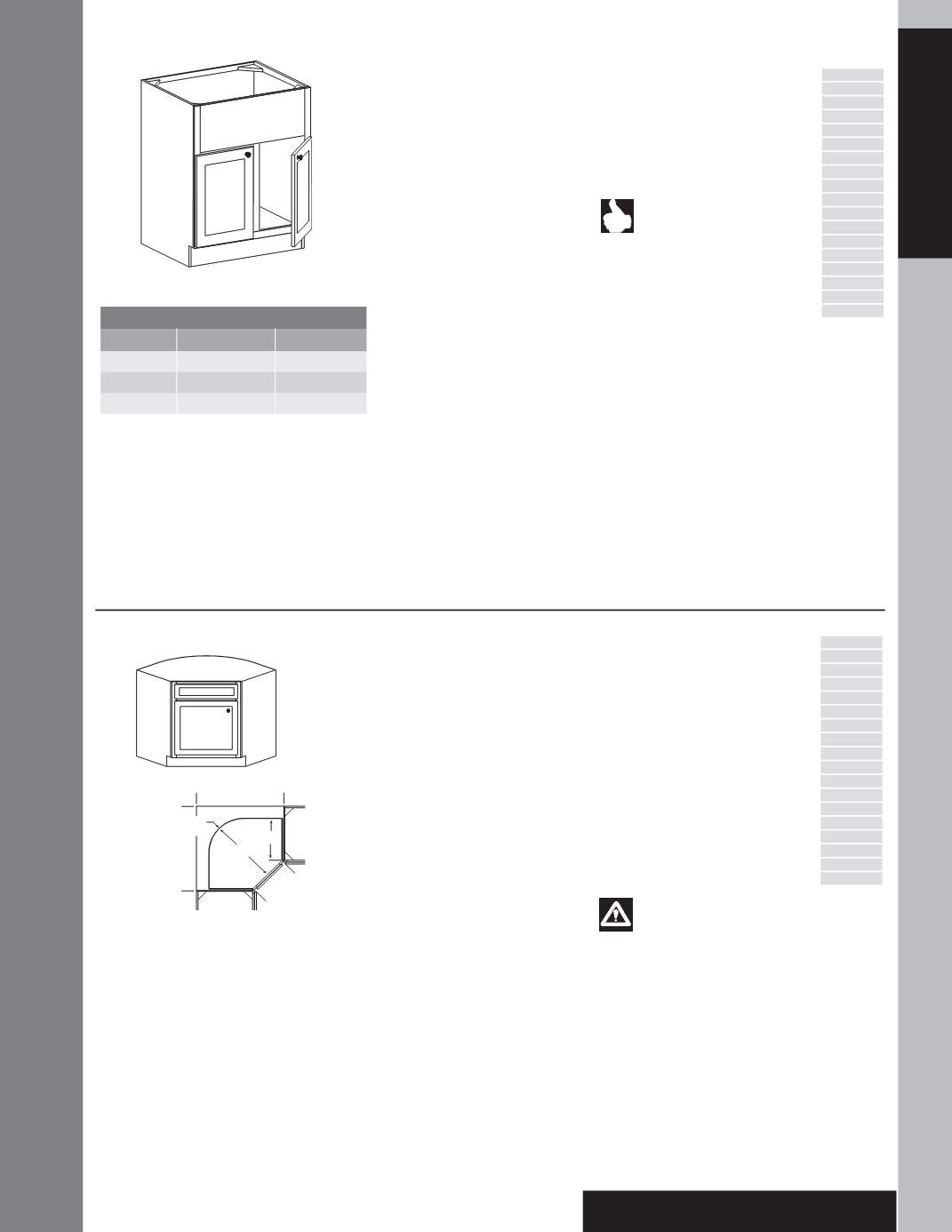

Deep Sink Base
DSB30
DSB33
DSB36
• No shelf
• Designed for use with “farm/farm house”
style sinks
• Trimmable face frame rail across top
• Face frame center stile included on all
widths to provide extra sink support
Be sure to follow sink
manufacturer specifications and
instructions to ensure proper fit.
Make sure to choose a cabinet that is at
least 4 1/2” wider than the outside sink
dimensions
l
PE
l
APC
RD12
RD15
RD18
l
RD21
1ROT
2ROT
3ROT
4ROT
6ROT
1FWROT
2FWROT
2DROT
4DROT
6DROT
2DFWROT
l
CFO
Cabinet Max Width
DSB30
25 ½˝
DSB33
28 ½˝
DSB36
31 ½˝
9 ½˝
9 ½˝
9 ½˝
Max Height
Maximum Trimmable Opening Sizes
34 ½˝
24˝
Sink Base Angle
Specify R or L
SBA36 R or L
SBA42 R or L
• One full-width false drawer front
• Top panel
must
be cut in field to receive
sink
• 29 1/4” minimum doorway clearance
required for delivery with cabinet door
removed
• Adjacent cabinets can be installed directly
without
fillers
• Full overlay sink front door and false
drawer front are similar in width to
partial overlay cabinets in order to avoid
interference with adjacent cabinet doors.
This exposes more of the cabinet face
frame
I
Note
: Back panel (barrel) will
not
be
plywood when APC is ordered
Caution
: If cabinet is installed next
to an appliance deeper than 25”, it
may interfere with the cabinet door
opening. Options available: A) Use a filler
between cabinet and appliance, B) Pull
cabinet even with appliance front, which will
result in a deeper countertop and overall base
cabinet depth dimension
PE
I
APC
RD12
RD15
RD18
RD21
1ROT
2ROT
3ROT
4ROT
6ROT
1FWROT
2FWROT
2DROT
4DROT
6DROT
2DFWROT
l
CFO
36"
or
42"
17" or
25 ½"
24˝
24˝
36" or 42"
18 / ˝
29 / ˝
14 / ˝ R
or 25 / ˝ R
17˝, 25 ½˝
24˝
24˝
34 ½˝
