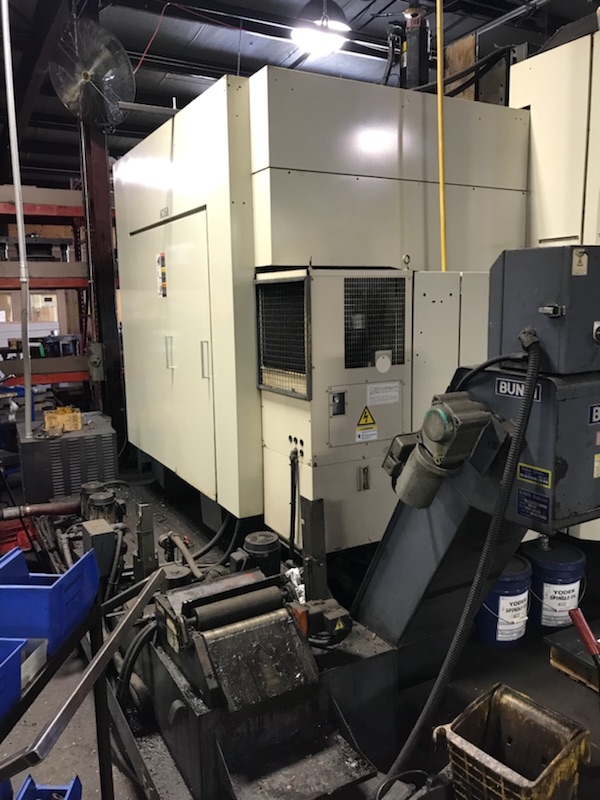

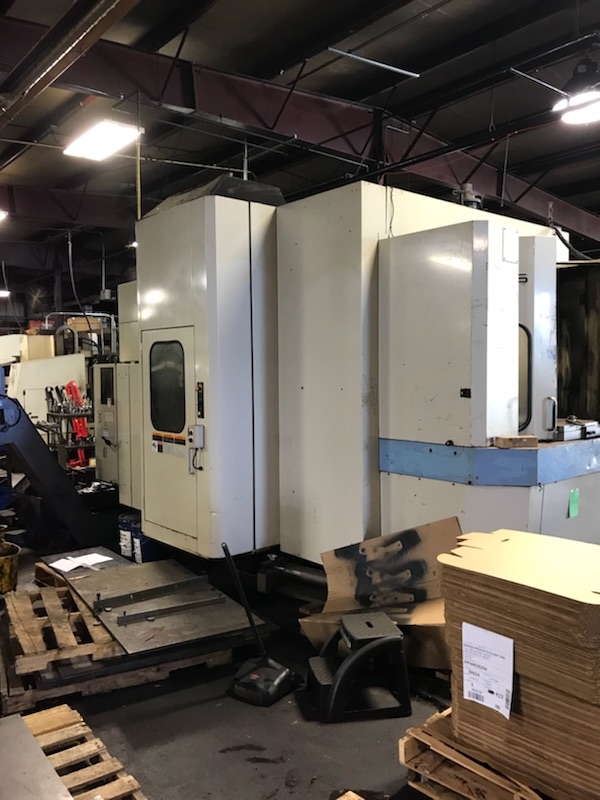

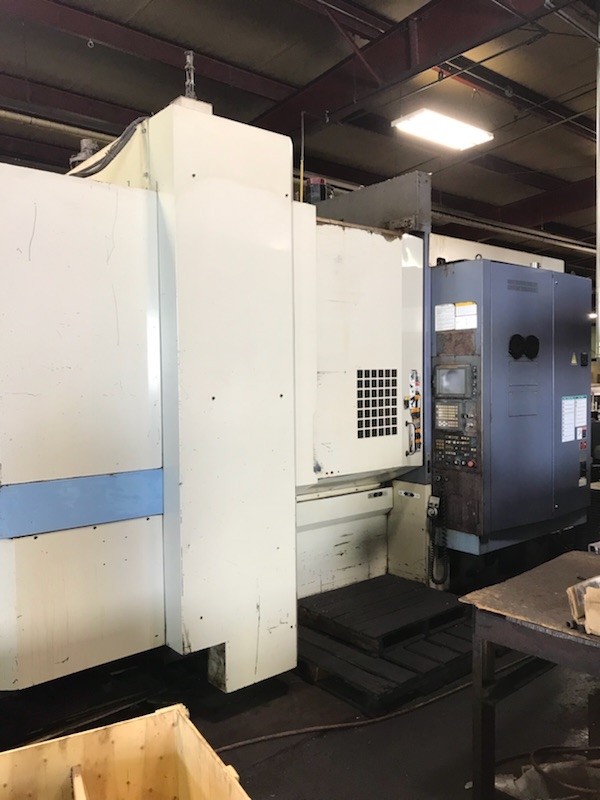

Mori Seiki SH50 Horizontal Mill

Features:

• 12000 RPM Spindle

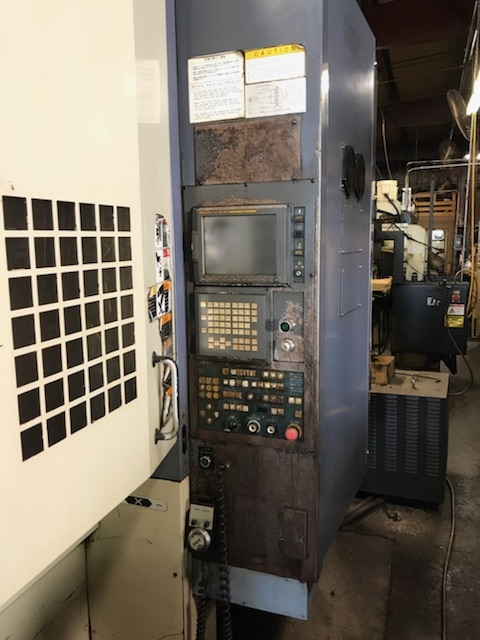

• MSC-516 ( Fanuc ) Control
• 1 Degree Index Dual Pallet Changer
• 40 Tools Side Mount Tool Changer
• Expanded Program Memory
• Helical Interpolation
• Rigid Tapping
• Advanced Tool Management
• Coolant Tank
• Telescopic way covers
• Chip Conveyor
• RS-232
• High Pressure Coolant system

Specifications:

Travels:

• X-Axis: 24.8″
• Y-Axis: 23.6″
• Z-Axis: 25.6″
• Rapid Traverse Rates: 1259 Inch Per Minute
• Cutting Feed Rates: 710 Inch Per Minute
• Table Surface to Spindle Center: 2.0″ – 25.6″

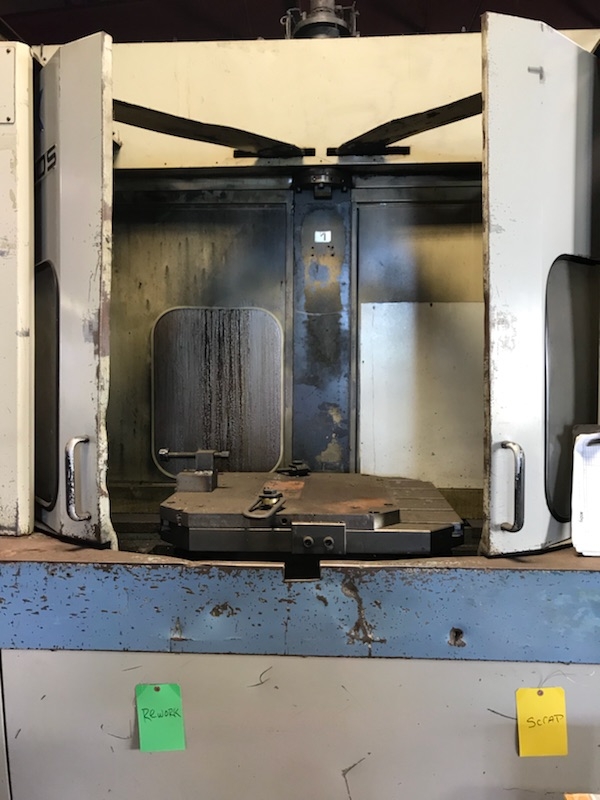

Pallet:

• Dual Pallet Changer
• Pallet Size: 19.75″ X 19.75″
• Pallet Change Time: 6 Seconds
• Weight on Table: 2200 lbs

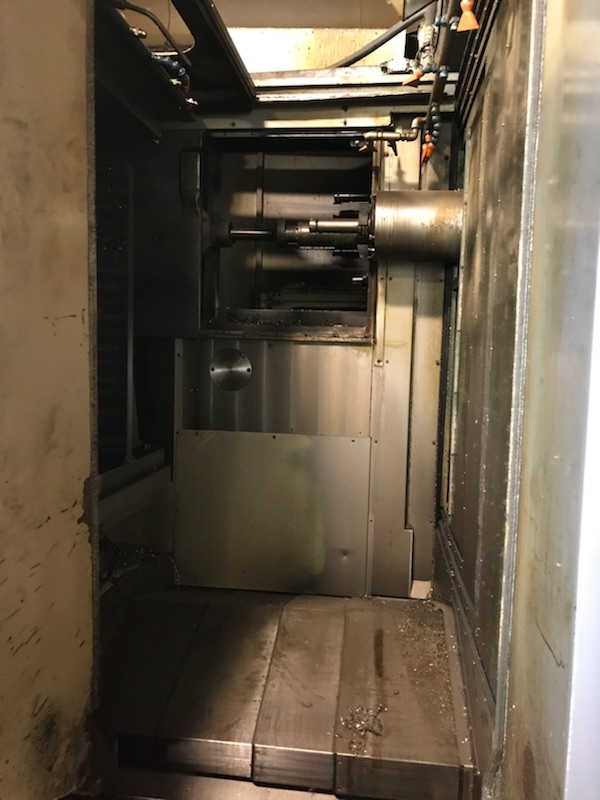

Spindle:

• Taper Size: CAT 40
• Speed Range: 0 – 12000 RPM
• Spindle Power: 30 HP
• Max Torque: 90ft-lb @ 2000RPM

Automatic Tool Changer:

• Capacity: 40 + 1
• Max Tool Weight: 22 lbs
• Max Tool Dia: 6″
• Max Tool Length: 16″
• Tool Changing Time: 1.3 – 3.7 Seconds

General:

• Air Required: 100 psi, 4 scfm
• Power: 220v / 3-Phase
• Overall Shipping Dimensions: 178″ x 110″ x 130″ High
• Chip Conveyor, Coolant Tanks, Coolant systems Dimensions extra
• Weight: 28,000 lbs
