This section describes the M2MB APIs for Web Provisioning. More...

#define	WEB_PROV_DEBUG_PRINT(...)

#define	M2MB_PROV_MAC_SSID_LEN 32

#define	M2MB_PROV_MAX_DNS_DOMAIN_LEN 64

#define	M2MB_PROV_MAX_SYS_ID_LEN 64

#define	M2MB_PROV_NWIF_HOST_NAME_MAX_LEN 15

#define	M2MB_PROV_SEC_PASSPHRASE_LEN 64

#define	M2MB_PROV_SEC_MAX_WEP_KEY_LEN M2MB_PROV_SEC_WEP104_KEY_LEN

#define	M2MB_PROV_REG_DOMAIN_UNKNOWN_MAX_CH 14

#define	M2MB_PROV_REG_DOMAIN_FCC_STR "fcc"

#define	M2MB_PROV_REG_DOMAIN_ETSI_STR "etsi"

#define	M2MB_PROV_REG_DOMAIN_ETSI_MEXS_STR "etsi_mex"

#define	M2MB_PROV_REG_DOMAIN_TELEC_STR "telec"

#define	M2MB_PROV_REG_DOMAIN_UNKNOWN_STR "unknown"

#define	M2MB_PROV_2_4_GHZ_BAND "2.4GHz"

#define	M2MB_PROV_5_GHZ_BAND "5GHz"

#define	M2MB_PROV_SECURITY_NONE_STR "none"

#define	M2MB_PROV_WEP_STR "wep"

#define	M2MB_PROV_WPA_PERSONAL_STR "wpa-personal"

#define	M2MB_PROV_WPA_ENTERPRISE_STR "wpa-enterprise"

#define	M2MB_PROV_HTTPD_MAX_USERNAME_LEN 32

#define	M2MB_PROV_HTTPD_MAX_PASSWORD_LEN 32

#define	M2MB_PROV_HTTPD_DEFAULT_USERNAME "admin"

#define	M2MB_PROV_HTTPD_DEFAULT_PASSWORD "admin"

enum	M2MB_PROV_WEP_AUTH_TYPE { M2MB_PROV_SEC_WEP_OPEN, M2MB_PROV_SEC_WEP_SHARED }
	WEP authentication type enumeration. More...

enum	M2MB_PROV_WEP_KEY_LEN { M2MB_PROV_SEC_WEP_KEY_INVLAID = 0, M2MB_PROV_SEC_WEP40_KEY_LEN = 5, M2MB_PROV_SEC_WEP104_KEY_LEN = 13 }
	WEP key length enumeration. More...

enum	M2MB_PROV_SEC_TYPE { M2MB_PROV_SEC_TYPE_NONE = 1, M2MB_PROV_SEC_TYPE_WEP, M2MB_PROV_SEC_TYPE_WPA_PERSONAL, M2MB_PROV_SEC_TYPE_WPA_ENTERPRISE }
	Security type enumeration. More...

enum	M2MB_PROV_REG_DOMAIN { M2MB_PROV_REG_DOMAIN_FCC = 0, M2MB_PROV_REG_DOMAIN_ETSI, M2MB_PROV_REG_DOMAIN_TELEC, M2MB_PROV_REG_DOMAIN_ETSI_MEXS, M2MB_PROV_REG_DOMAIN_UNKNOWN }
	Regulatory domains enumeration. More...

enum	M2MB_PROV_AP_MODE { M2MB_PROV_AP_MODE_PROV = 1, M2MB_PROV_AP_MODE_USER }
	AP mode enumeration. More...

enum	M2MB_PROV_NETWORK_MODE { M2MB_PROV_NETWORK_MODE_INFRA_CLIENT = 1, M2MB_PROV_NETWORK_MODE_LIMITED_AP, M2MB_PROV_NETWORK_MODE_INFRA_CLIENT_VERIFY, M2MB_PROV_NETWORK_MODE_CONCURRENT }
	Network mode enumeration. More...

enum	M2MB_PROV_SYS_CONFIG_OPTION { M2MB_PROV_SYS_CONFIG_OPTION_GET, M2MB_PROV_SYS_CONFIG_OPTION_SET }
	Configuration opetions enumeration. More...

enum	M2MB_PROV_ENCODE_TYPE { M2MB_PROV_ENCODE_TYPE_XML, M2MB_PROV_ENCODE_TYPE_JSON }
	Encoding types enumeration. More...

enum	M2MB_PROV_OBJECT_TYPE { M2MB_PROV_OBJECT_TYPE_NWK, M2MB_PROV_OBJECT_TYPE_SYSID, M2MB_PROV_OBJECT_TYPE_AUTH, M2MB_PROV_OBJECT_TYPE_VERIFIED_SUCCESS, M2MB_PROV_OBJECT_TYPE_VERIFIED_FAILURE, M2MB_PROV_OBJECT_TYPE_MAX }
	Object types enumeration. More...

typedef enum M2MB_PROV_WEP_AUTH_TYPE	M2MB_PROV_WEP_AUTH_TYPE_T
	WEP authentication type enumeration. More...

typedef enum M2MB_PROV_WEP_KEY_LEN	M2MB_PROV_WEP_KEY_LEN_T
	WEP key length enumeration. More...

typedef enum M2MB_PROV_SEC_TYPE	M2MB_PROV_SEC_TYPE_T
	Security type enumeration. More...

typedef enum M2MB_PROV_REG_DOMAIN	M2MB_PROV_REG_DOMAIN_T
	Regulatory domains enumeration. More...

typedef enum M2MB_PROV_AP_MODE	M2MB_PROV_AP_MODE_T
	AP mode enumeration. More...

typedef enum M2MB_PROV_NETWORK_MODE	M2MB_PROV_NETWORK_MODE_T
	Network mode enumeration. More...

typedef enum M2MB_PROV_SYS_CONFIG_OPTION	M2MB_PROV_SYS_CONFIG_OPTION_T
	Configuration opetions enumeration. More...

typedef enum M2MB_PROV_ENCODE_TYPE	M2MB_PROV_ENCODE_TYPE_T
	Encoding types enumeration. More...

typedef enum M2MB_PROV_OBJECT_TYPE	M2MB_PROV_OBJECT_TYPE_T
	Object types enumeration. More...

typedef struct M2MB_PROV_SSID	M2MB_PROV_SSID_T
	SSID structure. More...

typedef struct M2MB_PROV_SEC_PSK	M2MB_PROV_SEC_PSK_T
	PSK structure. More...

typedef struct M2MB_PROV_SEC_WEP_CONFIG	M2MB_PROV_SEC_WEP_CONFIG_T
	WEP Configuration structure. More...

typedef struct M2MB_PROV_CLIENT_CONFIG	M2MB_PROV_CLIENT_CONFIG_T
	Client Configuration structure. More...

typedef struct M2MB_PROV_IP_CONFIG	M2MB_PROV_IP_CONFIG_T
	IP Configuration structure. More...

typedef struct M2MB_PROV_AP_CONFIG	M2MB_PROV_AP_CONFIG_T
	AP Configuration structure. More...

typedef struct M2MB_PROV_NETWORK_CONFIG	M2MB_PROV_NETWORK_CONFIG_T
	Network Configuration structure. More...

typedef struct M2MB_PROV_SYS_CONFIG_SYS_ID	M2MB_PROV_SYS_CONFIG_SYS_ID_T
	System Configuration Identifier structure. More...

typedef struct M2MB_PROV_SYS_CONFIG	M2MB_PROV_SYS_CONFIG_T
	System Configuration structure. More...

typedef int(*	M2MB_PROV_CONFIG_CB_T) (M2MB_PROV_SYS_CONFIG_T *cfg, M2MB_PROV_SYS_CONFIG_OPTION_T option)
	Provision configuration call back prototype. More...

typedef struct M2MB_PROV_CONFIG_S	M2MB_PROV_CONFIG_T
	Provisioning Configuration structure. More...

M2MB_STATUS_T	m2mb_httpd_prov_start (M2MB_PROV_CONFIG_T pProvcfg, M2MB_HTTPD_CONFIG_T pHTTPDcfg)
	HTTP Provision Start. More...

Detailed Description

This section describes the M2MB APIs for Web Provisioning.

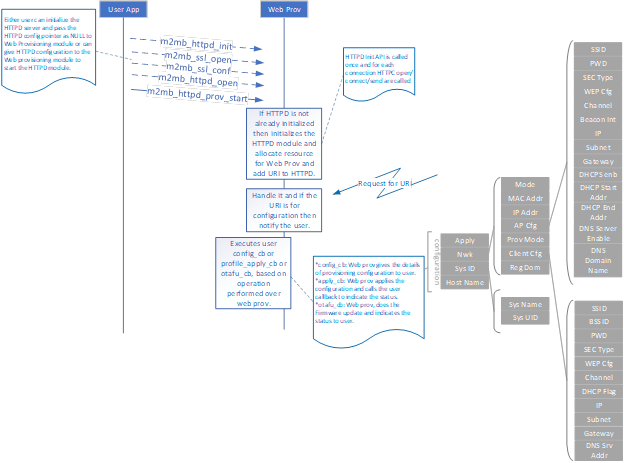

Web Provisioning

To initiate web provisioning, the system must be connected to a network or should create a network to communicate with other devices. HTTP server must be started and to make it secure SSL module must be initialized. The following steps must be performed:

User call NCM APIs to initiate a network or join a network.
User calls HTTP server API to initialize the HTTP server by calling m2mb_httpd_init.
To make the L4 communication secured user calls SSL API m2mb_ssl_open and configures the SSL connection by calling m2mb_ssl_set_cfg API.
To start the HTTP server user calls the m2mb_httpd_start.
User must call m2mb_httpd_prov_start. This API registers URIs to imitate provisioning.

Macro Definition Documentation

◆ M2MB_PROV_2_4_GHZ_BAND

#define M2MB_PROV_2_4_GHZ_BAND "2.4GHz"

2.4GHz

Definition at line 77 of file m2mb_web_prov.h.

◆ M2MB_PROV_5_GHZ_BAND

#define M2MB_PROV_5_GHZ_BAND "5GHz"

5 GHz

Definition at line 78 of file m2mb_web_prov.h.

◆ M2MB_PROV_HTTPD_DEFAULT_PASSWORD

#define M2MB_PROV_HTTPD_DEFAULT_PASSWORD "admin"

Default password

Definition at line 89 of file m2mb_web_prov.h.

◆ M2MB_PROV_HTTPD_DEFAULT_USERNAME

#define M2MB_PROV_HTTPD_DEFAULT_USERNAME "admin"

Default username

Definition at line 88 of file m2mb_web_prov.h.

◆ M2MB_PROV_HTTPD_MAX_PASSWORD_LEN

#define M2MB_PROV_HTTPD_MAX_PASSWORD_LEN 32

Maximum length of password

Definition at line 86 of file m2mb_web_prov.h.

◆ M2MB_PROV_HTTPD_MAX_USERNAME_LEN

#define M2MB_PROV_HTTPD_MAX_USERNAME_LEN 32

Maximum length of username

Definition at line 85 of file m2mb_web_prov.h.

◆ M2MB_PROV_MAC_SSID_LEN

#define M2MB_PROV_MAC_SSID_LEN 32

Maximum length of SSID

Definition at line 62 of file m2mb_web_prov.h.

◆ M2MB_PROV_MAX_DNS_DOMAIN_LEN

#define M2MB_PROV_MAX_DNS_DOMAIN_LEN 64

Maximum length of DNS Domain name

Definition at line 63 of file m2mb_web_prov.h.

◆ M2MB_PROV_MAX_SYS_ID_LEN

#define M2MB_PROV_MAX_SYS_ID_LEN 64

Maximum length of System Identifier

Definition at line 64 of file m2mb_web_prov.h.

◆ M2MB_PROV_NWIF_HOST_NAME_MAX_LEN

#define M2MB_PROV_NWIF_HOST_NAME_MAX_LEN 15

Maximum length of Network Interface Host name

Definition at line 65 of file m2mb_web_prov.h.

◆ M2MB_PROV_REG_DOMAIN_ETSI_MEXS_STR

#define M2MB_PROV_REG_DOMAIN_ETSI_MEXS_STR "etsi_mex"

ETSI Mexico regulatory domain

Definition at line 73 of file m2mb_web_prov.h.

◆ M2MB_PROV_REG_DOMAIN_ETSI_STR

#define M2MB_PROV_REG_DOMAIN_ETSI_STR "etsi"

ETSI regulatoty domain

Definition at line 72 of file m2mb_web_prov.h.

◆ M2MB_PROV_REG_DOMAIN_FCC_STR

#define M2MB_PROV_REG_DOMAIN_FCC_STR "fcc"

FCC regulatory domain

Definition at line 71 of file m2mb_web_prov.h.

◆ M2MB_PROV_REG_DOMAIN_TELEC_STR

#define M2MB_PROV_REG_DOMAIN_TELEC_STR "telec"

Telecom regulatory domain

Definition at line 74 of file m2mb_web_prov.h.

◆ M2MB_PROV_REG_DOMAIN_UNKNOWN_MAX_CH

#define M2MB_PROV_REG_DOMAIN_UNKNOWN_MAX_CH 14

Maximum channel count of unknown regulatory domain

Definition at line 69 of file m2mb_web_prov.h.

◆ M2MB_PROV_REG_DOMAIN_UNKNOWN_STR

#define M2MB_PROV_REG_DOMAIN_UNKNOWN_STR "unknown"

Unknown regulatory domain

Definition at line 75 of file m2mb_web_prov.h.

◆ M2MB_PROV_SEC_MAX_WEP_KEY_LEN

#define M2MB_PROV_SEC_MAX_WEP_KEY_LEN M2MB_PROV_SEC_WEP104_KEY_LEN

Maximul WEP Key length

Definition at line 67 of file m2mb_web_prov.h.

◆ M2MB_PROV_SEC_PASSPHRASE_LEN

#define M2MB_PROV_SEC_PASSPHRASE_LEN 64

Maximum length of security passphrase

Definition at line 66 of file m2mb_web_prov.h.

◆ M2MB_PROV_SECURITY_NONE_STR

#define M2MB_PROV_SECURITY_NONE_STR "none"

No security

Definition at line 80 of file m2mb_web_prov.h.

◆ M2MB_PROV_WEP_STR

#define M2MB_PROV_WEP_STR "wep"

WEP security

Definition at line 81 of file m2mb_web_prov.h.

◆ M2MB_PROV_WPA_ENTERPRISE_STR

#define M2MB_PROV_WPA_ENTERPRISE_STR "wpa-enterprise"

WPA enterprise security

Definition at line 83 of file m2mb_web_prov.h.

◆ M2MB_PROV_WPA_PERSONAL_STR

#define M2MB_PROV_WPA_PERSONAL_STR "wpa-personal"

WPA Personal security

Definition at line 82 of file m2mb_web_prov.h.

◆ WEB_PROV_DEBUG_PRINT

#define WEB_PROV_DEBUG_PRINT ( ... )

< Debug Print

Definition at line 59 of file m2mb_web_prov.h.

Typedef Documentation

◆ M2MB_PROV_AP_CONFIG_T

typedef struct M2MB_PROV_AP_CONFIG M2MB_PROV_AP_CONFIG_T

AP Configuration structure.

Structure for storing AP configuration.

◆ M2MB_PROV_AP_MODE_T

typedef enum M2MB_PROV_AP_MODE M2MB_PROV_AP_MODE_T

AP mode enumeration.

This enum defines macros for modes of AP supported by provisioning module.

◆ M2MB_PROV_CLIENT_CONFIG_T

typedef struct M2MB_PROV_CLIENT_CONFIG M2MB_PROV_CLIENT_CONFIG_T

Client Configuration structure.

Structure for storing client configuration.

◆ M2MB_PROV_CONFIG_CB_T

typedef int(* M2MB_PROV_CONFIG_CB_T) (M2MB_PROV_SYS_CONFIG_T *cfg, M2MB_PROV_SYS_CONFIG_OPTION_T option)

Provision configuration call back prototype.

Type definition of the user callback to handle provision configuration.

Definition at line 338 of file m2mb_web_prov.h.

◆ M2MB_PROV_CONFIG_T

typedef struct M2MB_PROV_CONFIG_S M2MB_PROV_CONFIG_T

Provisioning Configuration structure.

Structure for storing provisioning configuration.

◆ M2MB_PROV_ENCODE_TYPE_T

typedef enum M2MB_PROV_ENCODE_TYPE M2MB_PROV_ENCODE_TYPE_T

Encoding types enumeration.

This enum defines macros for types of encoding supported by provisioning module.

◆ M2MB_PROV_IP_CONFIG_T

typedef struct M2MB_PROV_IP_CONFIG M2MB_PROV_IP_CONFIG_T

IP Configuration structure.

Structure for storing IP configuration.

◆ M2MB_PROV_NETWORK_CONFIG_T

typedef struct M2MB_PROV_NETWORK_CONFIG M2MB_PROV_NETWORK_CONFIG_T

Network Configuration structure.

Structure for storing Network configuration.

◆ M2MB_PROV_NETWORK_MODE_T

typedef enum M2MB_PROV_NETWORK_MODE M2MB_PROV_NETWORK_MODE_T

Network mode enumeration.

This enum defines macros for network modes supported by provisioning module.

◆ M2MB_PROV_OBJECT_TYPE_T

typedef enum M2MB_PROV_OBJECT_TYPE M2MB_PROV_OBJECT_TYPE_T

Object types enumeration.

This enum defines macros for types of objects supported by provisioning module.

◆ M2MB_PROV_REG_DOMAIN_T

typedef enum M2MB_PROV_REG_DOMAIN M2MB_PROV_REG_DOMAIN_T

Regulatory domains enumeration.

This enum defines macros for regulatory domains supported by provisioning module.

◆ M2MB_PROV_SEC_PSK_T

typedef struct M2MB_PROV_SEC_PSK M2MB_PROV_SEC_PSK_T

PSK structure.

Structure for storing PSK and its length.

◆ M2MB_PROV_SEC_TYPE_T

typedef enum M2MB_PROV_SEC_TYPE M2MB_PROV_SEC_TYPE_T

Security type enumeration.

This enum defines macros for types of security supported by provisioning module.

◆ M2MB_PROV_SEC_WEP_CONFIG_T

typedef struct M2MB_PROV_SEC_WEP_CONFIG M2MB_PROV_SEC_WEP_CONFIG_T

WEP Configuration structure.

Structure for storing WEP Key and its configurations.

◆ M2MB_PROV_SSID_T

typedef struct M2MB_PROV_SSID M2MB_PROV_SSID_T

SSID structure.

Structure for storing SSID and its length.

◆ M2MB_PROV_SYS_CONFIG_OPTION_T

typedef enum M2MB_PROV_SYS_CONFIG_OPTION M2MB_PROV_SYS_CONFIG_OPTION_T

Configuration opetions enumeration.

This enum defines macros for configuration options supported by provisioning module.

◆ M2MB_PROV_SYS_CONFIG_SYS_ID_T

typedef struct M2MB_PROV_SYS_CONFIG_SYS_ID M2MB_PROV_SYS_CONFIG_SYS_ID_T

System Configuration Identifier structure.

Structure for storing system configuration identifier.

◆ M2MB_PROV_SYS_CONFIG_T

typedef struct M2MB_PROV_SYS_CONFIG M2MB_PROV_SYS_CONFIG_T

System Configuration structure.

Structure for storing system configuration.

◆ M2MB_PROV_WEP_AUTH_TYPE_T

typedef enum M2MB_PROV_WEP_AUTH_TYPE M2MB_PROV_WEP_AUTH_TYPE_T

WEP authentication type enumeration.

This enum defines macros for authentication type of WEP security.

◆ M2MB_PROV_WEP_KEY_LEN_T

typedef enum M2MB_PROV_WEP_KEY_LEN M2MB_PROV_WEP_KEY_LEN_T

WEP key length enumeration.

This enum defines macros for Key lengths of WEP security.

Enumeration Type Documentation

◆ M2MB_PROV_AP_MODE

enum M2MB_PROV_AP_MODE

AP mode enumeration.

This enum defines macros for modes of AP supported by provisioning module.

Enumerator
M2MB_PROV_AP_MODE_PROV	Provisioning mode
M2MB_PROV_AP_MODE_USER	User mode

Definition at line 149 of file m2mb_web_prov.h.

◆ M2MB_PROV_ENCODE_TYPE

enum M2MB_PROV_ENCODE_TYPE

Encoding types enumeration.

This enum defines macros for types of encoding supported by provisioning module.

Enumerator
M2MB_PROV_ENCODE_TYPE_XML	XML encoding
M2MB_PROV_ENCODE_TYPE_JSON	JSON encoding - Currently not supported in Provisioning

Definition at line 184 of file m2mb_web_prov.h.

◆ M2MB_PROV_NETWORK_MODE

enum M2MB_PROV_NETWORK_MODE

Network mode enumeration.

This enum defines macros for network modes supported by provisioning module.

Enumerator
M2MB_PROV_NETWORK_MODE_INFRA_CLIENT	Client mode
M2MB_PROV_NETWORK_MODE_LIMITED_AP	AP mode
M2MB_PROV_NETWORK_MODE_INFRA_CLIENT_VERIFY	Verified Clinet mode
M2MB_PROV_NETWORK_MODE_CONCURRENT	Concurrent mode

Definition at line 160 of file m2mb_web_prov.h.

◆ M2MB_PROV_OBJECT_TYPE

enum M2MB_PROV_OBJECT_TYPE

Object types enumeration.

This enum defines macros for types of objects supported by provisioning module.

Enumerator
M2MB_PROV_OBJECT_TYPE_NWK	Network
M2MB_PROV_OBJECT_TYPE_SYSID	System Identifier
M2MB_PROV_OBJECT_TYPE_AUTH	Authentication
M2MB_PROV_OBJECT_TYPE_VERIFIED_SUCCESS	Verified Provisioning - Success
M2MB_PROV_OBJECT_TYPE_VERIFIED_FAILURE	Verified Provisioning - Failure
M2MB_PROV_OBJECT_TYPE_MAX	Reserved

Definition at line 195 of file m2mb_web_prov.h.

◆ M2MB_PROV_REG_DOMAIN

enum M2MB_PROV_REG_DOMAIN

Regulatory domains enumeration.

This enum defines macros for regulatory domains supported by provisioning module.

Enumerator
M2MB_PROV_REG_DOMAIN_FCC	FCC regulatory domain
M2MB_PROV_REG_DOMAIN_ETSI	ETSI regulatory domain
M2MB_PROV_REG_DOMAIN_TELEC	Telecom regulatory domain
M2MB_PROV_REG_DOMAIN_ETSI_MEXS	ETSI Mexico regulatory domain
M2MB_PROV_REG_DOMAIN_UNKNOWN	Unknown regulatory domain

Definition at line 135 of file m2mb_web_prov.h.

◆ M2MB_PROV_SEC_TYPE

enum M2MB_PROV_SEC_TYPE

Security type enumeration.

This enum defines macros for types of security supported by provisioning module.

Enumerator
M2MB_PROV_SEC_TYPE_NONE	Open security
M2MB_PROV_SEC_TYPE_WEP	WEP security
M2MB_PROV_SEC_TYPE_WPA_PERSONAL	WPA personal security
M2MB_PROV_SEC_TYPE_WPA_ENTERPRISE	Enterprise security

Definition at line 122 of file m2mb_web_prov.h.

◆ M2MB_PROV_SYS_CONFIG_OPTION

enum M2MB_PROV_SYS_CONFIG_OPTION

Configuration opetions enumeration.

This enum defines macros for configuration options supported by provisioning module.

Enumerator
M2MB_PROV_SYS_CONFIG_OPTION_GET	Option to get configuration
M2MB_PROV_SYS_CONFIG_OPTION_SET	Option to set configuration

Definition at line 173 of file m2mb_web_prov.h.

◆ M2MB_PROV_WEP_AUTH_TYPE

enum M2MB_PROV_WEP_AUTH_TYPE

WEP authentication type enumeration.

This enum defines macros for authentication type of WEP security.

Enumerator
M2MB_PROV_SEC_WEP_OPEN	WEP-40 Key length in bytes.
M2MB_PROV_SEC_WEP_SHARED	WEP-104 Key length in bytes.

Definition at line 99 of file m2mb_web_prov.h.

◆ M2MB_PROV_WEP_KEY_LEN

enum M2MB_PROV_WEP_KEY_LEN

WEP key length enumeration.

This enum defines macros for Key lengths of WEP security.

Enumerator
M2MB_PROV_SEC_WEP_KEY_INVLAID	WEP-40 Key length in bytes.
M2MB_PROV_SEC_WEP40_KEY_LEN	WEP-40 Key length in bytes.
M2MB_PROV_SEC_WEP104_KEY_LEN	WEP-104 Key length in bytes.

Definition at line 110 of file m2mb_web_prov.h.

Function Documentation

◆ m2mb_httpd_prov_start()

M2MB_STATUS_T m2mb_httpd_prov_start	(	M2MB_PROV_CONFIG_T *	pProvcfg,
		M2MB_HTTPD_CONFIG_T *	pHTTPDcfg
	)

HTTP Provision Start.

This API starts HTTP provisioning.

Parameters

[in]	pProvcfg	Pointer to the provisioning related configuration.
[in]	pHTTPDcfg	Pointer to the HTTP server related configuration.

Returns: Returns M2MB_OK on success, M2MB_ERROR on failure

m2mb_httpd_prov_start( M2MB_PROV_CONFIG_T pProvcfg, M2MB_HTTPD_CONFIG_T pHTTPDcfg );

void m2m_s2w_webprov_otafu_cb( UINT32 resp_code )
{
}
int   m2m_s2w_webprov_config_cb( M2MB_PROV_SYS_CONFIG_T *cfg, M2MB_PROV_SYS_CONFIG_OPTION_T option )
{
}
M2MB_STATUS_T m2m_verified_prov_apply_cb( UINT8 device_id, M2MB_PROFILE_EVENT_T event, VOID *pData )
{
}
      int main()
      {
      M2MB_STATUS_T result;
      M2MB_PROV_CONFIG_T prov_cfg = { 0 };
      M2MB_HTTPD_CONFIG_T httpd_cfg = { 0 };
      httpd_cfg.family = M2MB_SOCKET_BSD_AF_INET;
      httpd_cfg.http_Port = 80;
      httpd_cfg.mode = M2MB_HTTPD_MODE_HTTP;
      httpd_cfg.username_auth = 1;
      prov_cfg.pSystem             = Pointer to your system configuration structure.
      prov_cfg.otafu_cb            = m2m_s2w_webprov_otafu_cb;
      prov_cfg.config_cb           = m2m_s2w_webprov_config_cb;
      prov_cfg.profile_apply_cb    = m2m_verified_prov_apply_cb;
      ... Prepare M2MB_PROV_CONFIG_T and M2MB_HTTPD_CONFIG_T ...

      result = m2mb_httpd_prov_start( &prov_cfg, &httpd_cfg );
      if (result != M2MB_OK)
              {
              return M2MB_ERROR;
              }
              return M2MB_OK;
    }
