M2MB NCM

This section describes the M2MB APIs to perform various Network Connection Manager(NCM) operations. More...

#define	M2MB_NCM_FLAG_KEEP_ALIVE   ( 1 << 0 )
#define	M2MB_NCM_FLAG_DYNAMIC_KEEP_ALIVE   ( 1 << 1 )
#define	M2MB_NCM_FLAG_ROAMING   ( 1 << 2 )
#define	M2MB_NCM_FLAG_WITH_STAT   ( 1 << 3 )
#define	M2MB_WPS_PIN_LENGTH   8
#define	M2MB_SECURITY_KEY_LENGTH_MAX   64
enum	M2MB_NCM_CTX_STATES {   M2MB_NCM_STATE_NOT_INITIALISED,   M2MB_NCM_STATE_INITIALISED,   M2MB_NCM_STATE_L2_DISCONNECTING,   M2MB_NCM_STATE_L2_DISCONNECTED,   M2MB_NCM_STATE_L2_CONCT_TO_KNOWN_AP,   M2MB_NCM_STATE_L2_SCAN_KNOWN_CHNL,   M2MB_NCM_STATE_L2_SCAN_SPECIFIC_CHNL,   M2MB_NCM_STATE_L2_SCAN_ALL_CHNL,   M2MB_NCM_STATE_L2_CONNECTED,   M2MB_NCM_STATE_L3_CONNECTED,   M2MB_NCM_STATE_IDLE,   M2MB_NCM_STATE_L3_IP_FAIL }
	Different states in NCM module. More...
enum	M2MB_NCM_IPFLAG_SETTING_E {   M2MB_NCM_IPFLAG_V4_STATIC = (1 << 0),   M2MB_NCM_IPFLAG_V4_DHCP = (1 << 1),   M2MB_NCM_IPFLAG_V6_AUTO = (1 << 2),   M2MB_NCM_IPFLAG_V6_DHCP = (1 << 3) }
	IP configuration. More...
enum	M2MB_L2_L3_NCM_EVENTS_ID_E {   M2MB_NCM_L2_DISASSOC_DONE,   M2MB_NCM_L2_RESTART,   M2MB_NCM_L2_SCAN_DONE,   M2MB_NCM_L2_SCAN_FAIL,   M2MB_NCM_L2_CONNECT_FAIL,   M2MB_NCM_L2_CONNECT_DONE,   M2MB_NCM_L3_CONNECT_DONE,   M2MB_NCM_L3_DISCONNECT,   M2MB_NCM_L3_CONNECT_FAIL,   M2MB_NCM_L2_AP_START_DONE,   M2MB_NCM_L3_AP_START_DONE,   M2MB_NCM_L3_AP_START_FAIL,   M2MB_NCM_L2_PNO_PROFILE_DONE,   M2MB_NCM_AP_STOP_DONE,   M2MB_NCM_L3_AUTO_IP_DONE,   M2MB_NCM_L3_NEW_IP_DONE,   M2MB_NCM_L3_CLIENT_CONNECTED,   M2MB_NCM_L3_CLIENT_DISCONNECTED }
	Events from NCM module. More...
enum	M2MB_NCM_CFG_OPCODE_E {   M2MB_NCM_CFG_OPCODE_AP_PROFILE,   M2MB_NCM_CFG_OPCODE_AP_CFG,   M2MB_NCM_CFG_OPCODE_STA_PROFILE,   M2MB_NCM_CFG_OPCODE_STA_RETRY,   M2MB_NCM_CFG_OPCODE_IP_CFG,   M2MB_NCM_CFG_OPCODE_DNS_CFG,   M2MB_NCM_CFG_OPCODE_DHCP_SERVER_CFG,   M2MB_NCM_CFG_OPCODE_STA_ROAMING,   M2MB_NCM_CFG_OPCODE_STAT_GET,   M2MB_NCM_CFG_OPCODE_CLIENT_GET,   M2MB_NCM_CFG_OPCODE_INTERFACE_GET,   M2MB_NCM_CFG_OPCODE_STA_WPS_CFG,   M2MB_NCM_CFG_OPCODE_STA_POWER_SAVE_CFG,   M2MB_NCM_AP_MODE_CONNECTED_STA_INFO,   M2MB_NCM_AP_MODE_DISCONNECTED_STA_INFO,   M2MB_NCM_MODE_L2_ONLY }
	Opcode to be used in configuration API. More...
enum	M2MB_NCM_INIT_MODE_E {   M2MB_NCM_MODE_STATION,   M2MB_NCM_MODE_AP,   M2MB_NCM_MODE_BOTH }
	Different modes. More...
enum	M2MB_DISASSOC_REASON_T {   M2MB_WLAN_NO_NETWORK_AVAIL = 0x01,   M2MB_WLAN_LOST_LINK = 0x02,   M2MB_WLAN_DISCONNECT_CMD = 0x03,   M2MB_WLAN_BSS_DISCONNECTED = 0x04,   M2MB_WLAN_AUTH_FAILED = 0x05,   M2MB_WLAN_ASSOC_FAILED = 0x06,   M2MB_WLAN_NO_RESOURCES_AVAIL = 0x07,   M2MB_WLAN_CSERV_DISCONNECT = 0x08,   M2MB_WLAN_INVALID_PROFILE = 0x0a,   M2MB_WLAN_DOT11H_CHANNEL_SWITCH = 0x0b,   M2MB_WLAN_PROFILE_MISMATCH = 0x0c,   M2MB_WLAN_CONNECTION_EVICTED = 0x0d,   M2MB_WLAN_IBSS_MERGE = 0x0e,   M2MB_WLAN_EXCESS_TX_RETRY = 0x0f,   M2MB_WLAN_SEC_HS_TO_RECV_M1 = 0x10,   M2MB_WLAN_SEC_HS_TO_RECV_M3 = 0x11,   M2MB_WLAN_TKIP_COUNTERMEASURES = 0x12,   M2MB_WLAN_SCAN_FAIL = 0x13,   M2MB_L3_FAIL = 0x14 }
	Disconnection reason. More...
typedef enum M2MB_NCM_CTX_STATES	M2MB_NCM_CTX_STATES_E
	Different states in NCM module. More...
typedef struct M2MB_NCM_AP_PROFILE	M2MB_NCM_AP_PROFILE_T
	AP profile information. More...
typedef struct M2MB_NCM_STA_CFG	M2MB_NCM_STA_CFG_T
	STA mode configuration information. More...
typedef struct M2MB_NCM_WPS_CFG	M2MB_NCM_WPS_CFG_T
	Station mode WPS configuration information. More...
typedef struct M2MB_NCM_POWER_SAVE_CFG	M2MB_NCM_POWER_SAVE_CFG_T
typedef struct M2MB_NCM_AP_CFG	M2MB_NCM_AP_CFG_T
	AP mode configuration information. More...
typedef struct M2MB_NCM_DHCP_SERVER_CFG	M2MB_NCM_DHCP_SERVER_CFG_T
	DHCP server configuration for the device in AP mode. More...
typedef struct M2MB_NCM_IP_CFG	M2MB_NCM_IP_CFG_T
	Generic IP configuration. More...
typedef struct M2MB_NCM_IFCFG	M2MB_NCM_IFCFG_T
	Network Connect Manager Interface configuration. More...
typedef struct M2MB_NCM_RETRY_CFG	M2MB_NCM_RETRY_CFG_T
	Retry configuration. More...
typedef struct M2MB_NCM_ROAMING_CFG	M2MB_NCM_ROAMING_CFG_T
	Roaming configuration. More...
typedef struct M2MB_NCM_DEVICE_STATS	M2MB_NCM_DEVICE_STATS_T
	Packet count statistics. More...
typedef struct M2MB_NCM_CONNECTED_STA_INFO	M2MB_NCM_CONNECTED_STA_INFO_T
	Connected station information. More...
typedef union M2MB_NCM_CFG_PTR	M2MB_NCM_CFG_PTR_T
	Configuration pointer union. More...
typedef VOID(*	M2MB_NCM_CB_T) (UINT8 device_id, UINT8 event, INT32 status_code, VOID *cb_Ctx)
	NCM module user callback prototype. More...
typedef VOID(*	M2MB_NCM_SCAN_CB_T) (UINT8 device_id, UINT8 event_id, INT32 status, VOID *data)
UINT8	m2mb_ncm_init (UINT8 mode, UINT8 bandwidth, M2MB_NCM_CB_T cb, VOID *cb_ctx)
	NCM module initialization. More...
INT32	m2mb_ncm_get_cfg (UINT8 handle, M2MB_NCM_CFG_OPCODE_E opCode, M2MB_NCM_CFG_PTR_T *p)
	This API is used to get different configurations of NCM module. More...
INT32	m2mb_ncm_set_cfg (UINT8 handle, M2MB_NCM_CFG_OPCODE_E opCode, M2MB_NCM_CFG_PTR_T *p)
	This API is used to set the different configurations in NCM module. More...
INT32	m2mb_ncm_register_cb (UINT8 handle, M2MB_NCM_CB_T m2mb_ncm_cb, VOID *Ctx)
	This API is used to register application callback in NCM module. More...
INT32	m2mb_ncm_start (UINT8 handle)
	This API is used to start the NCM module after initialization. More...
INT32	m2mb_ncm_stop (UINT8 handle)
	Disconnect or Down the NCM module. More...
INT32	m2mb_ncm_deregister_cb (UINT8 handle)
	This API is used to deregister the user callback in NCM module. More...
M2MB_STATUS_T	m2mb_ncm_deinit (UINT8 handle)
	This API is used to deintializes the NCM module. More...
UINT32	m2mb_ncm_check_handle_init (UINT32 handle)
	This API is used to check the handle is initialized or not. More...
INT32	m2mb_ncm_get_state (UINT8 device_id)
	Current state of NCM module. More...
INT32	m2mb_ncm_scan (UINT8 device_id, UINT8 *ssid, UINT8 no_of_channels, UINT8 *channel_list, UINT8 scan_type, UINT32 num_of_scan_entries, M2MB_WLAN_BSS_SCAN_INFO_T *scanentries, M2MB_NCM_SCAN_CB_T m2m_ncm_scan_cb, VOID *usr_ctx)
	This API is used to get the WLAN scan results. This API expects m2mb_ncm_init prior to it in STA mode. More...

Detailed Description

This section describes the M2MB APIs to perform various Network Connection Manager(NCM) operations.

Network Connection Manager handles both L2 and L3 level network connection for both Station (STA) and Access Point (AP) mode.

NCM Station Mode

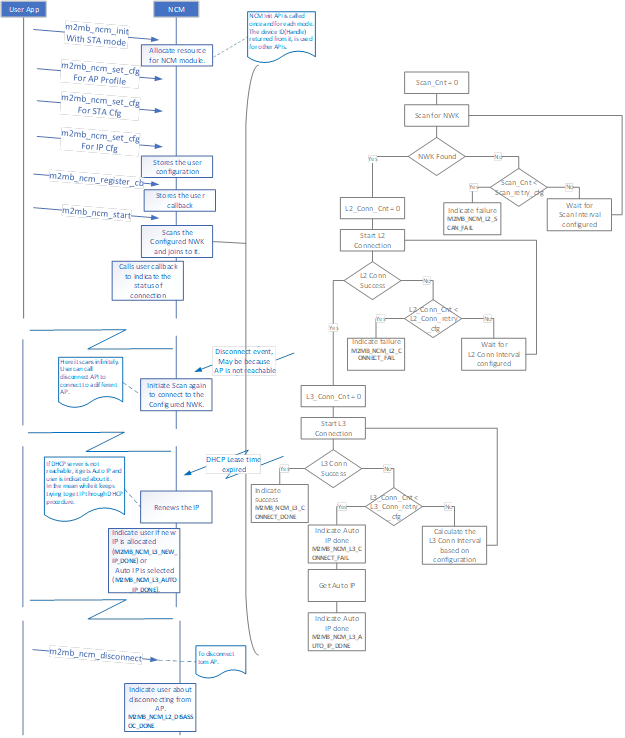

To connect to an AP (in STA mode), use the following API sequence:

• To allocate resource for the STA mode initialization, call the m2mb_ncm_init API with STA mode.
• To set the configuration to start the STA mode call m2mb_ncm_set_cfg. The following configuration must be set. a. AP Profile: Details of AP to connect b. STA configuration: Configures the retry count and interval along with few L2 level configuration c. IP configuration: Configures the IP related configuration, like whether to use DHCP or static IP, if static IP then the configuration of the IP fields.
• To initiate the connection, call the m2mb_ncm_start. This API initiates the connection procedure by: - a. Starting the scan procedure to find the AP. It scans for the configured number of times with the configured interval. b. If AP is found in the scan procedure, it initiates the L2 level joining procedure, else it reports error by calling the user configured callback with M2MB_NCM_L2_SCAN_FAIL. c. On successful L2 connection it initiates L3 connection. If DHCP is enabled, then it tries to get the IP address. Here also it tries for the configured retry count with the interval configured. The interval is incremented in every retry. On completion of L3 connection, user is indicated with success or failure M2MB_NCM_L3_CONNECT_DONE / M2MB_NCM_L3_CONNECT_FAIL and M2MB_NCM_L3_AUTO_IP_DONE .
• In connected mode if for some reason connection to the AP is lost, the NCM module tries to search for the AP by initiating scan procedure. Here NCM keeps trying to find the AP forever. If user wants to stop the connection procedure, user must issue disconnect by calling m2mb_ncm_disconnect API.
• Upon lease time expire, NCM module automatically tries to update the IP address. In case it fails may be because the DHCP server is not reachable, then it tries to get it for the configured retry count as explained above. If it gets a different IP address, then it indicates the user by calling the registered callback API with M2MB_NCM_L3_AUTO_IP_DONE.

NCM AP Mode

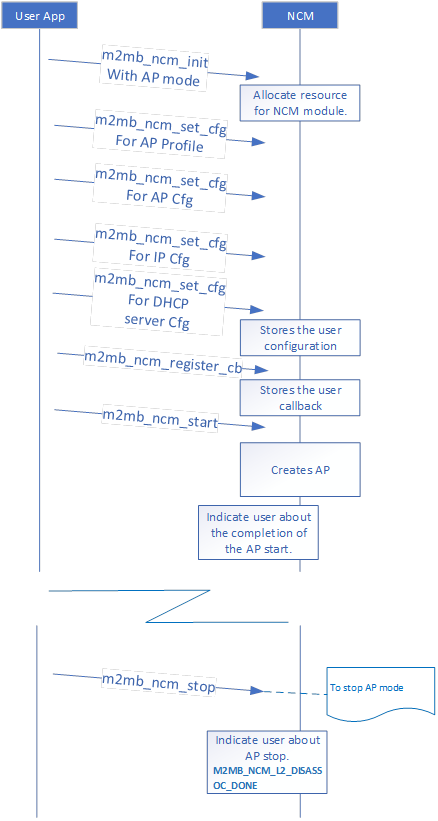

To start an AP, use the following API sequence:

• To allocate resource for the AP mode initialization, call the m2mb_ncm_init API with AP mode.
• To set the configuration to start the AP mode call m2mb_ncm_set_cfg. The following configuration must be set. a. AP Profile: Details of AP to start b. AP configuration: Configures the AP related configuration related to beacon interval, DTIM period, WPS support and so on. c. IP configuration: Configures the IP related configuration, like IP address, subnet and mask. d. DHCP server configuration: Configures the DHCP server configuration, like Start IP address, range and lease time.
• To initiate the AP, call the m2mb_ncm_start. This API will start the AP and start the DHCP server.

Macro Definition Documentation

M2MB_NCM_FLAG_DYNAMIC_KEEP_ALIVE

#define M2MB_NCM_FLAG_DYNAMIC_KEEP_ALIVE   ( 1 << 1 )

Flag to learn the keep alive time dynamically and using it to maintain connection

Definition at line 105 of file m2mb_ncm.h.

M2MB_NCM_FLAG_KEEP_ALIVE

#define M2MB_NCM_FLAG_KEEP_ALIVE   ( 1 << 0 )

Flag for keep alive feature

Definition at line 104 of file m2mb_ncm.h.

M2MB_NCM_FLAG_ROAMING

#define M2MB_NCM_FLAG_ROAMING   ( 1 << 2 )

Flag for roaming feature

Definition at line 107 of file m2mb_ncm.h.

M2MB_NCM_FLAG_WITH_STAT

#define M2MB_NCM_FLAG_WITH_STAT   ( 1 << 3 )

Flag for storing NCM stat

Definition at line 108 of file m2mb_ncm.h.

M2MB_SECURITY_KEY_LENGTH_MAX

#define M2MB_SECURITY_KEY_LENGTH_MAX   64

Definition at line 111 of file m2mb_ncm.h.

M2MB_WPS_PIN_LENGTH

#define M2MB_WPS_PIN_LENGTH   8

Definition at line 110 of file m2mb_ncm.h.

Typedef Documentation

M2MB_NCM_AP_CFG_T

typedef struct M2MB_NCM_AP_CFG M2MB_NCM_AP_CFG_T

AP mode configuration information.

This data structure allows the application to set AP configuration information used in AP mode.
This data structure should be used to get/set the AP configuration by calling m2mb_ncm_get/set_cfg using opcode M2MB_NCM_CFG_OPCODE_AP_CFG.

M2MB_NCM_AP_PROFILE_T

typedef struct M2MB_NCM_AP_PROFILE M2MB_NCM_AP_PROFILE_T

AP profile information.

This data structure allows the application to set AP profile information to search to connect to the network.
This data structure should be used to get/set the AP profile configuration by calling m2mb_ncm_get/set_cfg using opcode M2MB_NCM_CFG_OPCODE_AP_PROFILE.

M2MB_NCM_CB_T

typedef VOID(* M2MB_NCM_CB_T) (UINT8 device_id, UINT8 event, INT32 status_code, VOID *cb_Ctx)

NCM module user callback prototype.

Type definition of user callback to handle events received from NCM module.
Events are defined in M2MB_L2_L3_NCM_EVENTS_ID_E.

Definition at line 645 of file m2mb_ncm.h.

M2MB_NCM_CFG_PTR_T

typedef union M2MB_NCM_CFG_PTR M2MB_NCM_CFG_PTR_T

Configuration pointer union.

This union allows the application to pass pointer to the get/set API.
This union should be used to get/set various NCM configuration by calling m2mb_ncm_get/set_cfg.

Note

Some of the members are only used to get the configurations.

M2MB_NCM_CONNECTED_STA_INFO_T

typedef struct M2MB_NCM_CONNECTED_STA_INFO M2MB_NCM_CONNECTED_STA_INFO_T

Connected station information.

This structure is used to get the connected station information .
This structure should be used to get connected station information by calling m2mb_ncm_get with M2MB_NCM_CFG_OPCODE_CLIENT_GET flag.

M2MB_NCM_CTX_STATES_E

typedef enum M2MB_NCM_CTX_STATES M2MB_NCM_CTX_STATES_E

Different states in NCM module.

This enumeration will be helpful in tracking the NCM module state

M2MB_NCM_DEVICE_STATS_T

typedef struct M2MB_NCM_DEVICE_STATS M2MB_NCM_DEVICE_STATS_T

Packet count statistics.

Data structure that represents WLAN statistics information.

This data structure contains counts of various types of packets transmitted/received on the particular device ID and also the active and power save time.

This data structure should be used only to get the statistics by calling m2mb_ncm_get using opcode M2MB_NCM_CFG_OPCODE_STAT_GET.

M2MB_NCM_DHCP_SERVER_CFG_T

typedef struct M2MB_NCM_DHCP_SERVER_CFG M2MB_NCM_DHCP_SERVER_CFG_T

DHCP server configuration for the device in AP mode.

This data structure allows the application to set DHCP server configuration information used in AP mode.
This data structure should be used to get/set the AP configuration by calling m2mb_ncm_get/set_cfg using opcode M2MB_NCM_CFG_OPCODE_DHCP_SERVER_CFG.

M2MB_NCM_IFCFG_T

typedef struct M2MB_NCM_IFCFG M2MB_NCM_IFCFG_T

Network Connect Manager Interface configuration.

This data structure allows the application to get the interface information.
This data structure should be used to get the interface configuration by calling m2mb_ncm_get using opcode M2MB_NCM_CFG_OPCODE_INTERFACE_GET.

M2MB_NCM_IP_CFG_T

typedef struct M2MB_NCM_IP_CFG M2MB_NCM_IP_CFG_T

Generic IP configuration.

This data structure allows the application to set or get IP configuration information. Both AP and STA modes supported
This data structure should be used to get/set the generic IP configuration by calling m2mb_ncm_get/set_cfg using opcode M2MB_NCM_CFG_OPCODE_IP_CFG.

M2MB_NCM_POWER_SAVE_CFG_T

typedef struct M2MB_NCM_POWER_SAVE_CFG M2MB_NCM_POWER_SAVE_CFG_T

M2MB_NCM_RETRY_CFG_T

typedef struct M2MB_NCM_RETRY_CFG M2MB_NCM_RETRY_CFG_T

Retry configuration.

This data structure allows the application to set retry configuration for both WLAN and IP layer connection.
This data structure should be used to get/set the retry configuration by calling m2mb_ncm_get/set_cfg using opcode M2MB_NCM_CFG_OPCODE_STA_RETRY.

M2MB_NCM_ROAMING_CFG_T

typedef struct M2MB_NCM_ROAMING_CFG M2MB_NCM_ROAMING_CFG_T

Roaming configuration.

This data structure allows the application to set roaming configuration WLAN layer connection.
This data structure should be used to get/set the retry configuration by calling m2mb_ncm_get/set_cfg using opcode M2MB_NCM_CFG_OPCODE_STA_ROAMING.

M2MB_NCM_SCAN_CB_T

typedef VOID(* M2MB_NCM_SCAN_CB_T) (UINT8 device_id, UINT8 event_id, INT32 status, VOID *data)

Definition at line 646 of file m2mb_ncm.h.

M2MB_NCM_STA_CFG_T

typedef struct M2MB_NCM_STA_CFG M2MB_NCM_STA_CFG_T

STA mode configuration information.

This data structure allows the application to set STA configuration information used in STA mode.
This data structure should be used to get/set the Station mode configuration by calling m2mb_ncm_get/set_cfg using opcode M2MB_NCM_CFG_OPCODE_STA_PROFILE.

M2MB_NCM_WPS_CFG_T

typedef struct M2MB_NCM_WPS_CFG M2MB_NCM_WPS_CFG_T

Station mode WPS configuration information.

This data structure allows the application to set STA WPS configuration information used in STA mode.
This data structure should be used to get/set the Station mode WPS configuration by calling m2mb_ncm_get/set_cfg using opcode M2MB_NCM_CFG_OPCODE_STA_WPS_CFG.

Enumeration Type Documentation

M2MB_DISASSOC_REASON_T

enum M2MB_DISASSOC_REASON_T

Disconnection reason.

Identifies the disconnection reason.

Enumerator
M2MB_WLAN_NO_NETWORK_AVAIL	No network available.
M2MB_WLAN_LOST_LINK	Missed beacons.
M2MB_WLAN_DISCONNECT_CMD	User disconnect command.
M2MB_WLAN_BSS_DISCONNECTED	BSS disconnected.
M2MB_WLAN_AUTH_FAILED	Authentication failed.
M2MB_WLAN_ASSOC_FAILED	Association failed.
M2MB_WLAN_NO_RESOURCES_AVAIL	No resources available.
M2MB_WLAN_CSERV_DISCONNECT	Disconnection due to connection services.
M2MB_WLAN_INVALID_PROFILE	RSNA failure.
M2MB_WLAN_DOT11H_CHANNEL_SWITCH	802.11h channel switch.
M2MB_WLAN_PROFILE_MISMATCH	Profile mismatched.
M2MB_WLAN_CONNECTION_EVICTED	Connection evicted.
M2MB_WLAN_IBSS_MERGE	Disconnection due to merging of IBSS.
M2MB_WLAN_EXCESS_TX_RETRY	TX frames failed after excessive retries.
M2MB_WLAN_SEC_HS_TO_RECV_M1	Security 4-way handshake timed out waiting for M1.
M2MB_WLAN_SEC_HS_TO_RECV_M3	Security 4-way handshake timed out waiting for M3.
M2MB_WLAN_TKIP_COUNTERMEASURES	TKIP counter-measures.
M2MB_WLAN_SCAN_FAIL	scan fail
M2MB_L3_FAIL	L3 FAIL

Definition at line 490 of file m2mb_ncm.h.

M2MB_L2_L3_NCM_EVENTS_ID_E

enum M2MB_L2_L3_NCM_EVENTS_ID_E

Events from NCM module.

This enum defines macros for different types of events from NCM in connection process and is helpful to user applications.

Note

This enum will be used internally by the NCM module.

Enumerator
M2MB_NCM_L2_DISASSOC_DONE	NCM event for L2 disassociation, STA
M2MB_NCM_L2_RESTART	NCM event for L2 restart, STA
M2MB_NCM_L2_SCAN_DONE	NCM event for scan complete for L2 connection, STA
M2MB_NCM_L2_SCAN_FAIL	NCM event for scan fail before L2 connection, STA
M2MB_NCM_L2_CONNECT_FAIL	NCM event for L2 connection fail, STA
M2MB_NCM_L2_CONNECT_DONE	NCM event for L2 connection done, STA
M2MB_NCM_L3_CONNECT_DONE	Event for L3 connection done after L2 connection, STA
M2MB_NCM_L3_DISCONNECT	L3 disconnect event in NCM module, STA
M2MB_NCM_L3_CONNECT_FAIL	NCM event for L3 connection fail during connection process, STA
M2MB_NCM_L2_AP_START_DONE	NCM event for device in AP mode for L2 connection successfully
M2MB_NCM_L3_AP_START_DONE	NCM event for device in AP mode for L3 connection successfully
M2MB_NCM_L3_AP_START_FAIL	NCM event for device in AP mode, L3 fail
M2MB_NCM_L2_PNO_PROFILE_DONE	NCM event for PNO profile operation, Not implemented
M2MB_NCM_AP_STOP_DONE	Event for AP mode, stop successfully
M2MB_NCM_L3_AUTO_IP_DONE	L3 auto IP configuration in STA mode
M2MB_NCM_L3_NEW_IP_DONE	IP renewal with new IP address
M2MB_NCM_L3_CLIENT_CONNECTED	Ncm even when a client is connected in AP mode
M2MB_NCM_L3_CLIENT_DISCONNECTED	Ncm even when a client is disconnected in AP mode

Definition at line 170 of file m2mb_ncm.h.

M2MB_NCM_CFG_OPCODE_E

enum M2MB_NCM_CFG_OPCODE_E

Opcode to be used in configuration API.

This enum is used in m2m_ncm_cfg.
This data type should be used to set/get the configuration for both in AP and STA mode.

Enumerator
M2MB_NCM_CFG_OPCODE_AP_PROFILE	Used to GET/SET the AP profile info. Both STA and AP modes M2MB_NCM_AP_PROFILE_T
M2MB_NCM_CFG_OPCODE_AP_CFG	AP configuration setting M2MB_NCM_AP_CFG_T
M2MB_NCM_CFG_OPCODE_STA_PROFILE	STA profile setting M2MB_NCM_STA_CFG_T
M2MB_NCM_CFG_OPCODE_STA_RETRY	Retry configuration. M2MB_NCM_RETRY_CFG_T
M2MB_NCM_CFG_OPCODE_IP_CFG	IP configuration. M2MB_NCM_IP_CFG_T
M2MB_NCM_CFG_OPCODE_DNS_CFG	DNS configuration
M2MB_NCM_CFG_OPCODE_DHCP_SERVER_CFG	DHCP server configuration. M2MB_NCM_DHCP_SERVER_CFG_T
M2MB_NCM_CFG_OPCODE_STA_ROAMING	Roaming configuration
M2MB_NCM_CFG_OPCODE_STAT_GET	WLAN statistics. only GET. M2MB_NCM_DEVICE_STATS_T
M2MB_NCM_CFG_OPCODE_CLIENT_GET	Used to get the connected client info when the device is in AP mode
M2MB_NCM_CFG_OPCODE_INTERFACE_GET	Interface configuration. Only GET. M2MB_NCM_IFCFG_T
M2MB_NCM_CFG_OPCODE_STA_WPS_CFG	STA WPS configuration setting M2MB_NCM_WPS_CFG_T
M2MB_NCM_CFG_OPCODE_STA_POWER_SAVE_CFG
M2MB_NCM_AP_MODE_CONNECTED_STA_INFO	For Connected station information in AP mode
M2MB_NCM_AP_MODE_DISCONNECTED_STA_INFO	For disconnect station information in AP mode
M2MB_NCM_MODE_L2_ONLY	Set this if only L2 level connection is required.

Definition at line 208 of file m2mb_ncm.h.

M2MB_NCM_CTX_STATES

enum M2MB_NCM_CTX_STATES

Different states in NCM module.

This enumeration will be helpful in tracking the NCM module state

Enumerator
M2MB_NCM_STATE_NOT_INITIALISED	The NCM is not initialized
M2MB_NCM_STATE_INITIALISED	The NCM is initialized and ready
M2MB_NCM_STATE_L2_DISCONNECTING	The NCM has initiated the L2 disconnect with the WLAN and waiting for the disconnect indication from the WLAN. The disconnect is initiated by the NCM when Sync Loss is detected
M2MB_NCM_STATE_L2_DISCONNECTED	The NCM has L2 disconnected. This happens: At Start The Disassociation triggered by NCM and confirmed by WLAN The Disassociation indication from the WLAN
M2MB_NCM_STATE_L2_CONCT_TO_KNOWN_AP	Scanning known AP with previously scanned MAC frame
M2MB_NCM_STATE_L2_SCAN_KNOWN_CHNL	Scanning known channel
M2MB_NCM_STATE_L2_SCAN_SPECIFIC_CHNL	scanning specific channels
M2MB_NCM_STATE_L2_SCAN_ALL_CHNL	Scanning All channels
M2MB_NCM_STATE_L2_CONNECTED	L2 Connected. L3 is not connected yet
M2MB_NCM_STATE_L3_CONNECTED	L2 and L3 both are Connected
M2MB_NCM_STATE_IDLE	Wait/idle state
M2MB_NCM_STATE_L3_IP_FAIL	IP fail in NCm connection

Definition at line 119 of file m2mb_ncm.h.

M2MB_NCM_INIT_MODE_E

enum M2MB_NCM_INIT_MODE_E

Different modes.

This enum is used to start the NCM module initialization. It depends on the user to start the NCM module in STATION or AP mode.

Enumerator
M2MB_NCM_MODE_STATION	Station mode for NCM module initialization.
M2MB_NCM_MODE_AP	AP mode for NCM module initialization.
M2MB_NCM_MODE_BOTH	Both AP and STA mode

Definition at line 239 of file m2mb_ncm.h.

M2MB_NCM_IPFLAG_SETTING_E

enum M2MB_NCM_IPFLAG_SETTING_E

IP configuration.

This enum defines macros for IP flag setting in NCM connection and will be referred by M2MB_NCM_IP_CFG_T structure.

Note

This enum will be used by M2MB_NCM_IP_CFG_T structure.

Enumerator
M2MB_NCM_IPFLAG_V4_STATIC	setting a static flag (no dhcp)
M2MB_NCM_IPFLAG_V4_DHCP	setting DHCP flag
M2MB_NCM_IPFLAG_V6_AUTO	V6 auto flag
M2MB_NCM_IPFLAG_V6_DHCP	V6 dhcp flag

Definition at line 151 of file m2mb_ncm.h.

Function Documentation

m2mb_ncm_check_handle_init()

UINT32 m2mb_ncm_check_handle_init

(

UINT32

handle

)

This API is used to check the handle is initialized or not.

This API is used to check the operating mode in NCM module is properly initialized or not. This is the checking initialization API. m2mb_ncm_init should be called first before calling this API.

Parameters

[in]

handle

Handle, received from the m2mb_ncm_init API.

Returns

returns M2MB_OK on success or M2MB_ERROR on failure.

Note

This API should be called after m2mb_ncm_init.

m2mb_ncm_check_handle_init(handle);

int main()
{
  UINT8 handle;
  INT32 ret;

  handle = m2mb_ncm_init(M2MB_NCM_MODE_STATION, NULL, NULL);
  if(handle == 2)
  {
    return M2MB_ERROR;
  }

  ret = m2mb_ncm_check_handle_init(handle);

  if(ret == M2MB_OK)
  {
          return 0;
  }
  return -1;
}

m2mb_ncm_deinit()

M2MB_STATUS_T m2mb_ncm_deinit

(

UINT8

handle

)

This API is used to deintializes the NCM module.

m2mb_ncm_deinit is used to deinitializes the NCM module. If the device is already connected to the existing AP or else device is already created an AP then in either cases the device should first disconnect or down the network by using m2mb_ncm_disconnect function. If the device is in idle state after NCM initialization then user may directly deinitialize the NCM module.

Parameters

[in]

handle

Handle, received from the m2mb_ncm_init API.

Returns

returns M2MB_OK on success or M2MB_ERROR on failure.

Note

This API should be called after m2mb_ncm_init. m2mb_ncm_disconnect should be called if the NCM module is in connected state or created state.

m2mb_ncm_deinit(handle);

  VOID app_ncm_connect_cb(UINT8 device_id, UINT8 event, VOID *cb_Ctx)
{
  switch(event)
  {
          case M2MB_NCM_L3_CONNECT_DONE:
          {
                  //set event after connection
          }
          break;
          case M2MB_NCM_L3_DISCONNECT:
          {
                  //set event after disconnection
          }
          break;
  }
}
int main()
{
  UINT8 handle;
          M2MB_NCM_AP_PROFILE_T ap = {0}
          UINT8 *user_ssid = "Telit_test";

          handle = m2mb_ncm_init(M2MB_NCM_MODE_STATION, app_ncm_connect_cb, NULL);
          if(handle == 2)
  {
          return M2MB_ERROR;
  }

  ap.ssid_Len = strlen(user_ssid);
  memcpy( ap.ssid, user_ssid, strlen(user_ssid));
          ap.auth_Mode = M2MB_WLAN_AUTH_TYPE_NONE;
          ap.encryption_Type = M2MB_WLAN_ENCRYPT_TYPE_NONE;
          ap.channel = 6;

  ret = m2mb_ncm_set_cfg(handle, M2MB_NCM_CFG_OPCODE_AP_PROFILE,
                  (M2MB_NCM_CFG_PTR_T *)&ap);
  if(ret != M2MB_OK)
  {
          M2MB_ERROR;
  }
  //wait for event if connection has happened to AP or not
  ret = m2mb_ncm_start(handle);
  if(ret != M2MB_OK)
  {
          M2MB_ERROR;
  }
  ret = m2mb_ncm_disconnect(handle);
  if(ret != M2MB_OK)
  {
          M2MB_ERROR;
  }
  //wait for event if disconnection has happened with AP or not
          ret = m2mb_ncm_deinit(handle);
          if(ret != M2MB_OK)
  {
          M2MB_ERROR;
  }
  return M2MB_OK;
}

m2mb_ncm_deregister_cb()

INT32 m2mb_ncm_deregister_cb

(

UINT8

handle

)

This API is used to deregister the user callback in NCM module.

m2mb_ncm_deregister_cb is used by application to deregister the user callback. m2mb_ncm_deregister_cb will be applied for both callbacks registered by m2mb_ncm_init and m2mb_ncm_register_cb. This API will deregister user callback for either methods.

Parameters

[in]

handle

Handle, received from the m2mb_ncm_init API.

Returns

returns 0 on success or 1 on failure.

Note

This API should be called after m2mb_ncm_init and m2mb_ncm_register_cb.

m2mb_ncm_deregister_cb(ncm_handle);

VOID ncm_user_cb(UINT8 device_id, UINT8 event, VOID *cb_Ctx)
      {
              switch(event)
              {
                      case M2MB_NCM_L3_CONNECT_DONE:
                      {
                      }
                      break;
              }
      }
int main()
{
              UINT8 handle;
      INT32 ret;

              handle = m2mb_ncm_init(M2MB_NCM_MODE_STATION, NULL, NULL);
              if(handle == 2)
      {
              return M2MB_ERROR;
      }
      ...
      ret = m2mb_ncm_register_cb(handle, ncm_user_cb, NULL);
              if(ret != M2MB_OK)
      {
              M2MB_ERROR;
      }
      ret = m2mb_ncm_deregister_cb(handle);
              if(ret != M2MB_OK)
      {
              M2MB_ERROR;
      }
}

m2mb_ncm_get_cfg()

INT32 m2mb_ncm_get_cfg	(	UINT8	handle,
		M2MB_NCM_CFG_OPCODE_E	opCode,
		M2MB_NCM_CFG_PTR_T *	p
	)

This API is used to get different configurations of NCM module.

User can get the details of different configurations of NCM module by using this API. Refer M2MB_NCM_CFG_PTR_T for different types of configurations user can get. Some of the members of M2MB_NCM_CFG_PTR_T are used only to GET configurations. Refer M2MB_NCM_CFG_OPCODE_E for different opcodes and user should pass respective structure to get the configuration.

Parameters

[in]	handle	Handle, received from the m2mb_ncm_init API.
[in]	opCode	Indicates which configuration opcode is used. Refer M2MB_NCM_CFG_OPCODE_E for different opcodes.
[out]	p	pointer to the configuration structure. Should be typecasted with M2MB_NCM_CFG_PTR_T

Returns

On success returns Handle either 0 or 1, and 2 on failure.

Note

This API should to be called after m2mb_ncm_init API.

m2mb_ncm_get_cfg(handle, M2MB_NCM_CFG_OPCODE_INTERFACE_GET, (M2MB_NCM_CFG_PTR_T *)&pCfg);

int main()
{
      UINT8 handle;
              INT32 ret;
              M2MB_NCM_IFCFG_T pCfg = {0};

              handle = m2mb_ncm_init(M2MB_NCM_MODE_STATION, NULL, NULL);
              if(handle == 2)
      {
              return M2MB_ERROR;
      }

              ret = m2mb_ncm_get_cfg(handle, M2MB_NCM_CFG_OPCODE_INTERFACE_GET,
                      (M2MB_NCM_CFG_PTR_T *)&pCfg);

              if(ret != M2MB_SUCCESS)
              {
                      return M2MB_ERROR;
              }
              return M2MB_OK;
}

m2mb_ncm_get_state()

INT32 m2mb_ncm_get_state

(

UINT8

device_id

)

Current state of NCM module.

This API is used to check the current state of NCM module. Refer M2MB_NCM_CTX_STATES_E to understand the state of NCM module.

Parameters

[in]

device_id

Handle, received from the m2mb_ncm_init API.

Returns

returns M2MB_OK on success or M2MB_ERROR on failure.

Note

This API should be called after m2mb_ncm_init.

m2mb_ncm_get_state(device_id);

int main()
{
  UINT8 handle;
  INT32 state;

  handle = m2mb_ncm_init(M2MB_NCM_MODE_STATION, NULL, NULL);
  if(handle == 2)
  {
    return M2MB_ERROR;
  }

  state = m2mb_ncm_get_state(handle);

  return M2MB_OK;
}

m2mb_ncm_init()

UINT8 m2mb_ncm_init	(	UINT8	mode,
		UINT8	bandwidth,
		M2MB_NCM_CB_T	cb,
		VOID *	cb_ctx
	)

NCM module initialization.

This API configures and initializes the NCM module. Refer M2MB_NCM_INIT_MODE_E to configure the mode for NMC module initialization. User can register the callback as second parameter for this API or else user can use m2mb_ncm_register_cb function after initialization of NCM module i.e after calling this API to register the callback. The counterpart function for this API is m2mb_ncm_deinit.

Parameters

[in]	mode	Operating mode. Refer M2MB_NCM_INIT_MODE_E for different operating mode.
[in]	cb	Callback of application to get indicated for any events from NCM module.
[in]	cb_ctx	User callback context, passed along with the events to the callback.

Returns

On success returns HANDLE to be used for other NCM related APIs or M2MB_ERROR on failure.

Note

This API should to be called before any other NCM related APIs are called.

m2mb_ncm_init(M2MB_NCM_MODE_STATION, app_ncm_connect_cb, user_ctx);

VOID app_ncm_connect_cb(UINT8 device_id, UINT8 event, VOID *user_ctx)
{
        switch(event)
  {
   case M2MB_NCM_L3_CONNECT_DONE:
     {
     }
     break;
     case M2MB_NCM_L2_DISASSOC_DONE:
     case M2MB_NCM_L2_SCAN_FAIL:
     case M2MB_NCM_L2_CONNECT_FAIL:
     case M2MB_NCM_L3_CONNECT_FAIL:
     {

     }
}
int main()
{
        UINT8 handle;

        handle = m2mb_ncm_init(M2MB_NCM_MODE_STATION, app_ncm_connect_cb, NULL);
        if(handle == 2)
        {
                return M2MB_ERROR;
        }

}

m2mb_ncm_register_cb()

INT32 m2mb_ncm_register_cb	(	UINT8	handle,
		M2MB_NCM_CB_T	m2mb_ncm_cb,
		VOID *	Ctx
	)

This API is used to register application callback in NCM module.

This API is the optional to register the application callback with NCM module. User can register application callback through m2mb_ncm_init or else user can use this API to register application callback. The counterpart for this API is m2mb_ncm_deregister_cb. Its user's choice to use either this API or m2mb_ncm_init function to register application callback.

Parameters

[in]	handle	Handle, received from the m2mb_ncm_init API.
[in]	m2mb_ncm_cb	Callback of application to get indicated for any events from NCM module.
[in]	Ctx	User callback context, passed along with the events to the user callback.

Returns

returns M2MB_OK on success or M2MB_ERROR on failure.

Note

This API should be called after m2mb_ncm_init.

m2mb_ncm_register_cb(handle, ncm_user_cb, NULL);

 VOID ncm_user_cb(UINT8 device_id, UINT8 event, VOID *cb_Ctx)
{
  switch(event)
  {
  case M2MB_NCM_L3_CONNECT_DONE:
  {
  }
  break;
  }
}
int main()
{
  UINT8 handle;
         M2MB_NCM_AP_PROFILE_T ap = {0}
         UINT8 *user_ssid = "Telit_test";

         handle = m2mb_ncm_init(M2MB_NCM_MODE_STATION, NULL, NULL);
         if(handle == 2)
 {
         return M2MB_ERROR;
 }

 ap.ssid_Len = strlen(user_ssid);
 memcpy( ap.ssid, user_ssid, strlen(user_ssid));
         ap.auth_Mode = M2MB_WLAN_AUTH_TYPE_NONE;
         ap.encryption_Type = M2MB_WLAN_ENCRYPT_TYPE_NONE;
         ap.channel = 6;

         ret = m2mb_ncm_register_cb(handle, ncm_user_cb, NULL);
         if(ret != M2MB_OK)
 {
         M2MB_ERROR;
 }
         ret = m2mb_ncm_set_cfg(handle, M2MB_NCM_CFG_OPCODE_AP_PROFILE,
                 (M2MB_NCM_CFG_PTR_T *)&ap);
 if(ret != M2MB_OK)
 {
         M2MB_ERROR;
 }
 //wait for event if connection has happened to AP or not
 ret = m2mb_ncm_start(handle);
 if(ret != M2MB_OK)
 {
         M2MB_ERROR;
 }

 return M2MB_OK;
}

m2mb_ncm_scan()

INT32 m2mb_ncm_scan	(	UINT8	device_id,
		UINT8 *	ssid,
		UINT8	no_of_channels,
		UINT8 *	channel_list,
		UINT8	scan_type,
		UINT32	num_of_scan_entries,
		M2MB_WLAN_BSS_SCAN_INFO_T *	scanentries,
		M2MB_NCM_SCAN_CB_T	m2m_ncm_scan_cb,
		VOID *	usr_ctx
	)

This API is used to get the WLAN scan results. This API expects m2mb_ncm_init prior to it in STA mode.

This API is used to get the WLAN scan results, it can be used for replacement of m2mb_wlan_scan API at NCM level. If the user is passing the m2mb_ncm_scan_cb then the results will come to user callback asynchronously. If the user is passing NULL in user callback parameter then this API will acta s blocking call and user buffer will get filled.

Parameters

[in]	device_id	Handle, received from the m2mb_ncm_init API.
[in]	ssid	SSID of the particular Access Point to scan [optional]
[in]	no_of_channels	Number of channels to scan [optional]. 0 for all channel scan
[in]	channel_list	List of channels that user wants to scan.
[in]	scan_type	Scanning type ; [active - 0] or [passive - 1]
[in]	num_of_scan_entries	User can pass number of entries of scan results and he should provide buffer of that number of scan results. Array of M2MB_WLAN_BSS_SCAN_INFO_T structures
[in,out]	result_buff	Buffer which is provided by the user to store scan results.

m2mb_ncm_scan(device_id, SSID, 0, chnl, 0, 12, scan_entries, m2m_scan_cb,NULL);

  VOID m2mb_scan_cb(UINT8 device_id, UINT8 event_id, INT32 status, VOID *data)
{
  switch(event_id)
  {
          case M2MB_WLAN_SCAN_COMPLETE_CB:
          {
                  ...
          }
  }
}
int main()
{
  UINT8 handle;

  handle = m2mb_ncm_init(M2MB_NCM_MODE_STATION, NULL, NULL);
  if(handle == 2)
  {
    return M2MB_ERROR;
  }

  ret = m2mb_ncm_scan(device_id, SSID, 0, chnl, 0, 12, scan_entries, m2m_scan_cb,NULL);

  return M2MB_OK;
}

m2mb_ncm_set_cfg()

INT32 m2mb_ncm_set_cfg	(	UINT8	handle,
		M2MB_NCM_CFG_OPCODE_E	opCode,
		M2MB_NCM_CFG_PTR_T *	p
	)

This API is used to set the different configurations in NCM module.

User can set different configurations of NCM module by using this API. Refer M2MB_NCM_CFG_PTR_T for different types of configurations user can set. Some of the members of M2MB_NCM_CFG_PTR_T are used only to SET configurations. Refer M2MB_NCM_CFG_OPCODE_E for different opcodes and user should pass respective structure filled with required parameters to set the configuration.

Parameters

[in]	handle	Handle, received from the m2mb_ncm_init API.
[in]	opCode	Indicates which configuration opcode is used. Refer M2MB_NCM_CFG_OPCODE_E for different opcodes.
[in]	p	Pointer to the structure with filled parameters to set. Should be typecasted with M2MB_NCM_CFG_PTR_T

Returns

returns M2MB_OK on success, M2MB_ERROR value on error.

Note

This API has to be called after m2mb_ncm_init API is called. Before calling m2mb_ncm_start, if user wants to set the user defined values then this API should have been called to set the configuration details else default values will be used.

m2mb_ncm_set_cfg(handle, M2MB_NCM_CFG_OPCODE_IP_CFG, (M2MB_NCM_CFG_PTR_T *)&pCfg);

int main()
{
      UINT8 handle;
              INT32 ret;
              M2MB_NWIF_IPV4_CONFIG_T ipv4Cfg = {0};
              M2MB_NCM_IP_CFG_T cfg;

              ipv4Cfg.ipv4Addr = //user should fill ipaddress;
      ipv4Cfg.gateway = //user should fill gateway;
      ipv4Cfg.subnetMask = //user should fill subnet mask;

      cfg.pIPv4Cfg = &ipv4Cfg;
      cfg.ipFlag = M2MB_NCM_IPFLAG_V4_STATIC;

              handle = m2mb_ncm_init(M2MB_NCM_MODE_STATION, NULL, NULL);
              if(handle == 2)
      {
              return M2MB_ERROR;
      }

              ret = m2mb_ncm_set_cfg(handle, M2MB_NCM_CFG_OPCODE_IP_CFG,
                      (M2MB_NCM_CFG_PTR_T *)&cfg);

              if(ret != M2MB_SUCCESS)
              {
                      return M2MB_ERROR;
              }
              return M2MB_OK;
}

m2mb_ncm_start()

INT32 m2mb_ncm_start

(

UINT8

handle

)

This API is used to start the NCM module after initialization.

This API starts the NCM module to connect to the existing network when the NCM is initiated in STA mode or else it create its own network when the NCM is initiated in AP mode. Either of these functionalities require AP profile. The AP profile should be set by user using m2mb_ncm_set_cfg with M2MB_NCM_CFG_OPCODE_AP_PROFILE opcode and respective structure in M2MB_NCM_CFG_PTR_T. User can set IP related parameters by using m2mb_ncm_set_cfg with M2MB_NCM_CFG_OPCODE_IP_CFG opcode and respective structure in M2MB_NCM_CFG_PTR_T. This API uses the configuration set by the user else it uses the default configuration. The counter part fro this API is m2mb_ncm_disconnect.

Parameters

[in]

handle

Handle, received from the m2mb_ncm_init API.

Returns

Returns M2MB_OK on success, M2MB_ERROR on failure.

Note

This API has to be called after m2mb_ncm_init API is called. User should set required configurations by using m2mb_ncm_set_cfg before calling this API. Else the default value will be used.

m2mb_ncm_start( handle );

VOID app_ncm_connect_cb(UINT8 device_id, UINT8 event, VOID *cb_Ctx)
{
  switch(event)
  {
          case M2MB_NCM_L3_AP_START_DONE:
          {
          }
          break;
          case M2MB_NCM_L3_AP_START_FAIL:
          {
          }
          break;
  }
}
int main()
{
          UINT8 handle;
          INT32 ret;
          UINT8 *user_ssid = "Telit_test";
  M2MB_NCM_AP_PROFILE_T ap = {0};
  M2MB_NCM_AP_CFG_T cfg = {0};
  M2MB_NCM_DHCP_SERVER_CFG_T dhcp_server_info = {0};
  M2MB_NCM_IP_CFG_T ip_cfg = {0};
  M2MB_NWIF_IPV4_CONFIG_T ipv4Cfg = {0};

  handle = m2mb_ncm_init(M2MB_NCM_MODE_AP, app_ncm_connect_cb, NULL);
          if(handle == 2)
  {
          return M2MB_ERROR;
  }

  ap.ssid_Len = strlen(user_ssid);
  memcpy( ap.ssid, user_ssid, strlen(user_ssid));
          ap.auth_Mode = M2MB_WLAN_AUTH_TYPE_NONE;
          ap.encryption_Type = M2MB_WLAN_ENCRYPT_TYPE_NONE;
          ap.channel = 6;

  ret = m2mb_ncm_set_cfg(handle, M2MB_NCM_CFG_OPCODE_AP_PROFILE,
                  (M2MB_NCM_CFG_PTR_T *)&ap);
  if(ret != M2MB_OK)
  {
          M2MB_ERROR;
  }

  cfg.beaconInterval = 100;
  cfg.dtimPeriod = 3;
  cfg.hiddenSsid = 0;

  ret = m2mb_ncm_set_cfg(handle, M2MB_NCM_CFG_OPCODE_AP_CFG,
          (M2MB_NCM_CFG_PTR_T *)&cfg );
  if(ret != M2MB_OK)
  {
          return M2MB_ERROR;
  }

  m2mb_socket_bsd_inet_pton(M2MB_SOCKET_BSD_AF_INET, "192.168.120.2",
          &ipv4Cfg.ipv4Addr);
  m2mb_socket_bsd_inet_pton(M2MB_SOCKET_BSD_AF_INET, "255.255.255.0",
          &ipv4Cfg.subnetMask);
  m2mb_socket_bsd_inet_pton(M2MB_SOCKET_BSD_AF_INET, "192.168.120.1",
          &ipv4Cfg.gateway);

  ip_cfg.pIPv4Cfg = &ipv4Cfg;
  ip_cfg.ipFlag = M2MB_NCM_IPFLAG_V4_STATIC;

  ret = m2mb_ncm_set_cfg( device_id, M2MB_NCM_CFG_OPCODE_IP_CFG,
          (M2MB_NCM_CFG_PTR_T *)&ip_cfg);
  if(ret != M2MB_OK)
  {
          return M2MB_ERROR;
  }

  m2mb_socket_bsd_inet_pton(M2MB_SOCKET_BSD_AF_INET, "192.168.120.3",
          &dhcp_server_info.startIP);
  m2mb_socket_bsd_inet_pton(M2MB_SOCKET_BSD_AF_INET, "192.168.120.250",
          &dhcp_server_info.endIP);
  dhcp_server_info.leaseTime = 86400000;

  ret = m2mb_ncm_set_cfg( device_id, M2MB_NCM_CFG_OPCODE_DHCP_SERVER_CFG,
          (M2MB_NCM_CFG_PTR_T *)&dhcp_server_info);
  if(ret != M2MB_OK)
  {
          return M2MB_ERROR;
  }

          ret = m2mb_ncm_start(handle);
          if(ret != M2MB_OK)
  {
          return M2MB_ERROR;
  }

}

m2mb_ncm_stop()

INT32 m2mb_ncm_stop

(

UINT8

handle

)

Disconnect or Down the NCM module.

This API is used to disconnect from the connected network in STA mode and down the created network in AP mode. This API is the counterpart of m2mb_ncm_start API. For deinitialization of NCM module, the user should give this API.

Parameters

[in]

handle

Handle, received from the m2mb_ncm_init API.

Returns

returns M2MB_OK on success or M2MB_ERROR on failure.

Note

This API should be called after m2mb_ncm_init and m2mb_ncm_start APIs.

m2mb_ncm_deregister_cb(handle);

      VOID app_ncm_connect_cb(UINT8 device_id, UINT8 event, VOID *cb_Ctx)
    {
      switch(event)
      {
              case M2MB_NCM_L3_CONNECT_DONE:
              {
                      //set event after connection
              }
              break;
              case M2MB_NCM_L3_DISCONNECT:
              {
                      //set event after disconnection
              }
              break;
      }
    }
int main()
    {
              UINT8 handle;
              M2MB_NCM_AP_PROFILE_T ap = {0}
              UINT8 *user_ssid = "Telit_test";

              handle = m2mb_ncm_init(M2MB_NCM_MODE_STATION, app_ncm_connect_cb, NULL);
              if(handle == 2)
      {
              return M2MB_ERROR;
      }

      ap.ssid_Len = strlen(user_ssid);
      memcpy( ap.ssid, user_ssid, strlen(user_ssid));
              ap.auth_Mode = M2MB_WLAN_AUTH_TYPE_NONE;
              ap.encryption_Type = M2MB_WLAN_ENCRYPT_TYPE_NONE;
              ap.channel = 6;

      ret = m2mb_ncm_set_cfg(handle, M2MB_NCM_CFG_OPCODE_AP_PROFILE,
                      (M2MB_NCM_CFG_PTR_T *)&ap);
      if(ret != M2MB_OK)
      {
              M2MB_ERROR;
      }
      //wait for event if connection has happened to AP or not
      ret = m2mb_ncm_start(handle);
      if(ret != M2MB_OK)
      {
              M2MB_ERROR;
      }
      ret = m2mb_ncm_disconnect(handle);
      if(ret != M2MB_OK)
      {
              M2MB_ERROR;
      }
      return M2MB_OK;
    }
