This section describes the M2MB APIs related to system reset functionality. More...

#define	M2MB_ERR_LOG_MAX_FILE_NAME_LEN 50

#define	M2MB_ERR_LOG_MAX_THREAD_NAME_LEN 20

enum	M2MB_SYSTEM_RESET_RESON_T { M2MB_SYSTEM_BOOT_REASON_PON_COLD_BOOT, M2MB_SYSTEM_BOOT_REASON_WATCHDOG_BOOT, M2MB_SYSTEM_BOOT_REASON_SW_BOOT, M2MB_SYSTEM_BOOT_REASON_EXCEPTION_HARD_FAULT, M2MB_SYSTEM_BOOT_REASON_EXCEPTION_MEM_FAULT, M2MB_SYSTEM_BOOT_REASON_EXCEPTION_USAGE_FAULT, M2MB_SYSTEM_BOOT_REASON_EXCEPTION_BUS_FAULT, M2MB_SYSTEM_BOOT_REASON_STANDBY_BOOT, M2MB_SYSTEM_BOOT_REASON_UNKNOWN_BOOT, M2MB_SYSTEM_BOOT_REASON_SIZE_ENUM = 0x7FFFFFFF }
	Enum defining different boot reason. More...

typedef struct M2MB_SYSTEM_EXCEPTION_INFO	M2MB_SYSTEM_EXCEPTION_INFO_T
	Structure defining details of exception information. More...

VOID	m2mb_system_reset (VOID)
	System Reset API. More...

M2MB_STATUS_T	m2mb_get_boot_reason (M2MB_SYSTEM_RESET_RESON_T *reason)
	Boot reason. More...

M2MB_STATUS_T	m2mb_get_exception_info (M2MB_SYSTEM_EXCEPTION_INFO_T *excptionInfo)
	To get the details on exception. More...

VOID	m2mb_wdog_enable (VOID)
	To enable watchdog. More...

VOID	m2mb_wdog_disable (VOID)
	To disable watchdog. More...

UINT32	m2mb_wdog_is_enable (VOID)
	To find whether the watchdog is enabled or not. More...

VOID	m2mb_wdog_kick (VOID)
	To reset the watchdog. More...

Detailed Description

This section describes the M2MB APIs related to system reset functionality.

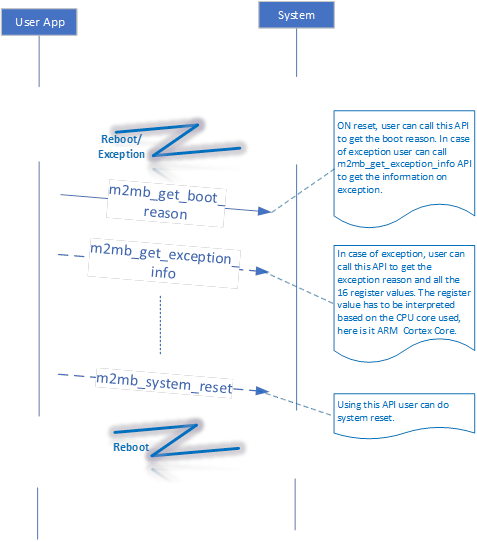

System Reset

System reset module provides APIs to reset the system, get reset information and handling system watchdog.

To reset the system user can call m2mb_system_reset. It will reset the system and boot up.
To find the previous reset reason user can call m2mb_get_boot_reason.
If the boot reason is exception, user can find the exception reason and details on exception by calling m2mb_get_exception_info. This gives the exception reason and the register details when exception happened.
To enable/disable system watchdog user can call m2mb_wdog_enable or m2mb_wdog_disable. By default, watchdog is enabled. It monitors thread. If any thread executes more than 10sec, it resets the system. User needs to kick the watchdog if it needs more time to execute before 10sec, by calling m2mb_wdog_kick. User can check if the watchdog is enabled or not by calling m2mb_wdog_is_enable API.

Macro Definition Documentation

◆ M2MB_ERR_LOG_MAX_FILE_NAME_LEN

#define M2MB_ERR_LOG_MAX_FILE_NAME_LEN 50

Definition at line 51 of file m2mb_system_reset.h.

◆ M2MB_ERR_LOG_MAX_THREAD_NAME_LEN

#define M2MB_ERR_LOG_MAX_THREAD_NAME_LEN 20

Definition at line 52 of file m2mb_system_reset.h.

Typedef Documentation

◆ M2MB_SYSTEM_EXCEPTION_INFO_T

typedef struct M2MB_SYSTEM_EXCEPTION_INFO M2MB_SYSTEM_EXCEPTION_INFO_T

Structure defining details of exception information.

Exception information details.

Enumeration Type Documentation

◆ M2MB_SYSTEM_RESET_RESON_T

enum M2MB_SYSTEM_RESET_RESON_T

Enum defining different boot reason.

Enum defines different boot reason.

Enumerator
M2MB_SYSTEM_BOOT_REASON_PON_COLD_BOOT	Power on cold boot or hardware reset.
M2MB_SYSTEM_BOOT_REASON_WATCHDOG_BOOT	Reset from the Watchdog.
M2MB_SYSTEM_BOOT_REASON_SW_BOOT	Software cold reset.
M2MB_SYSTEM_BOOT_REASON_EXCEPTION_HARD_FAULT	Exception, Hard fault.
M2MB_SYSTEM_BOOT_REASON_EXCEPTION_MEM_FAULT	Exception, Memory management fault.
M2MB_SYSTEM_BOOT_REASON_EXCEPTION_USAGE_FAULT	Exception, Usage fault.
M2MB_SYSTEM_BOOT_REASON_EXCEPTION_BUS_FAULT	Exception, Bus fault.
M2MB_SYSTEM_BOOT_REASON_STANDBY_BOOT	Wakeup from Standby.
M2MB_SYSTEM_BOOT_REASON_UNKNOWN_BOOT	Unknown software cold boot.
M2MB_SYSTEM_BOOT_REASON_SIZE_ENUM

Definition at line 64 of file m2mb_system_reset.h.

Function Documentation

◆ m2mb_get_boot_reason()

M2MB_STATUS_T m2mb_get_boot_reason ( M2MB_SYSTEM_RESET_RESON_T * reason )

Boot reason.

This API gives the boot reason.

Parameters

[out] reason Pointer to the store the boot reason.

Returns: M2MB_OK if the boot reason could be found successful. M2MB_ERROR if the boot reason could not be found.

Note

To find the boot reason and do the rest of the processing based on this.

M2MB_SYSTEM_RESET_RESON_T reason;
if( M2MB_OK == m2mb_get_boot_reason( &reason ))
    m2mb_dbg_consol_print("Boot Reason = %d", reason );

◆ m2mb_get_exception_info()

M2MB_STATUS_T m2mb_get_exception_info ( M2MB_SYSTEM_EXCEPTION_INFO_T * excptionInfo )

To get the details on exception.

This API gives the reason of exception and the register detail when exception happened.

Parameters

[out] excptionInfo Pointer to the store the boot reason.

Returns: M2MB_OK if the exception details could be found successful. M2MB_ERROR if the exception details could not be found.

Note

To find the details on exception reason for debugging purpose.

M2MB_SYSTEM_EXCEPTION_INFO_T info;
if( M2MB_OK == m2mb_get_exception_info( &info ))
{
    UINT8 i;
    m2mb_dbg_consol_print("Boot Reason = %d", info.reason );
    for( i = 0; i < 16; i++ )
        m2mb_dbg_consol_print("R%02d: = %08x", i, info.reg[i] );
}

◆ m2mb_system_reset()

VOID m2mb_system_reset ( VOID )

System Reset API.

Resets the system.

Returns: None

Note: Once this API is called the system gets reseted, so the call does not return back to the caller. Can be used for ASSERTING the system
//If malloc fails for any important activity which has to be done in the
//system, in that case user can choose to reset the system.
UINT8* pBuf = malloc(size);
if(pBuf == NULL)m2mb_system_reset();

◆ m2mb_wdog_disable()

VOID m2mb_wdog_disable ( VOID )

To disable watchdog.

This API disables the watchdog.

Note: By default, watchdog is enabled and fires in 10sec. To disable the watchdog this API can be called.

VOID m2mb_wdog_disable( VOID );

m2mb_wdog_disable();
while(1)
{
    ....
    ....
}

◆ m2mb_wdog_enable()

VOID m2mb_wdog_enable ( VOID )

To enable watchdog.

This API enables the watchdog.

Note: By default watchdog is enabled and fires in 10sec. The watchdog is kicked internally by the system. If a thread executes for more than 10sec without reliquencing the CPU control watchdog will fire and system would reset.

VOID m2mb_wdog_enable( VOID );

m2mb_wdog_enable();
while(1)
{
    m2mb_wdog_kick();
    ....
    ....
}

◆ m2mb_wdog_is_enable()

UINT32 m2mb_wdog_is_enable ( VOID )

To find whether the watchdog is enabled or not.

This API finds out if the watchdog is enabled or not.

Returns: 1 if the watchdog is enabled. 0 if the watchdog is disabled.

Note

UINT32 m2mb_wdog_is_enable( VOID );

while(1)
{
    if( m2mb_wdog_is_enable())
        m2mb_wdog_kick();
    ....
    ....
}

◆ m2mb_wdog_kick()

VOID m2mb_wdog_kick ( VOID )

To reset the watchdog.

This API resets the watchdog timer and start again.

Note: By default, watchdog is enabled and fires in 10sec. The watchdog is kicked internally by the system. If a thread executes for more than 10sec without reliquencing the CPU control watchdog will fire and system would reset.

m2mb_wdog_kick( VOID );

while(1)
{
    m2mb_wdog_kick();
    ....
    ....
}
