This section describes the M2MB API for power management module. More...

#define	M2MB_SYSTEM_STABALIZE_TIME_MS 200

#define	UNUSED(x) ((void)(x))

typedef VOID(*	M2MB_SLEEP_CB_T) (UINT32 expected_idle_time, void *param)

INT32	m2mb_pwr_mgmt_standby (UINT32 duration)
	m2mb_pwr_mgmt_standby puts the system to standby mode. More...

INT32	m2mb_pwr_mgmt_cfg_sleep (UINT32 enable, UINT32 duration)
	m2mb_pwr_mgmt_cfg_sleep configures the sleep mode. More...

INT32	m2mb_pwr_mgmt_cfg_sleep_cb (M2MB_SLEEP_CB_T after, M2MB_SLEEP_CB_T before)
	m2mb_pwr_mgmt_cfg_sleep_cb configures callback for the sleep mode. More...

Detailed Description

This section describes the M2MB API for power management module.

Power Management

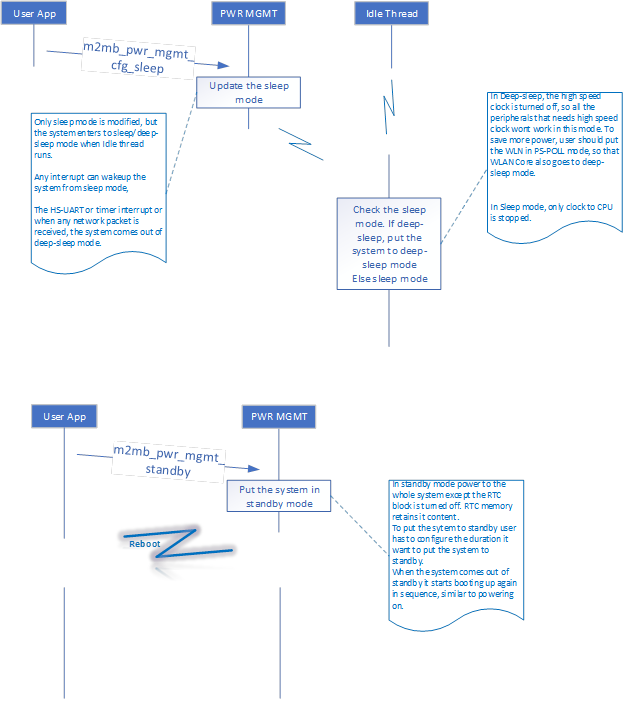

The power management module provides APIs to the system to different power save mode. There are three power save mode, sleep, deep-sleep and standby mode.

The sleep mode is by default enabled and, in this mode only the CPU clock is gated. The Idle thread puts the system in sleep mode.
In Deep-Sleep mode the crystal is turned off, there by saving more power. This should be done if there are no high-speed peripherals are running in the system. User puts the system to deep-sleep mode by calling m2mb_pwr_mgmt_cfg_sleep. The system wakes from deep-sleep mode when data is received over WLAN interface or any interrupt happens, like timer or if RX pin of HS-UART is triggered.
In standby mode power is cut off from all the part of the system except keeping the RTC memory powered. This means the content in the SRAM is lost and system starts from boot process on wakeup from standby. User can put the system in standby mode by calling m2mb_pwr_mgmt_standby API.

Macro Definition Documentation

◆ M2MB_SYSTEM_STABALIZE_TIME_MS

#define M2MB_SYSTEM_STABALIZE_TIME_MS 200

Definition at line 54 of file m2mb_pwr_mgmt.h.

◆ UNUSED

#define UNUSED ( x ) ((void)(x))

Definition at line 56 of file m2mb_pwr_mgmt.h.

Typedef Documentation

◆ M2MB_SLEEP_CB_T

typedef VOID(* M2MB_SLEEP_CB_T) (UINT32 expected_idle_time, void *param)

Definition at line 60 of file m2mb_pwr_mgmt.h.

Function Documentation

◆ m2mb_pwr_mgmt_cfg_sleep()

INT32 m2mb_pwr_mgmt_cfg_sleep	(	UINT32	enable,
		UINT32	duration
	)

m2mb_pwr_mgmt_cfg_sleep configures the sleep mode.

m2mb_pwr_mgmt_cfg_sleep is used to enable or disable the sleep mode.

Parameters

[in]	enable	Set to one to enable sleep mode else set to zero to disable it.
[in]	duration	This value is used only when enable is set to 1. If set to 0, by default it goes to sleep mode. If set to 0xFFFFFFFF it goes to deep sleep mode for infinite time and if set to other than this two value it goes to deep sleep for the duration mentioned. If user sets 0 as duration then after wakeup it automatically goes to sleep again. But if user sets other than 0, then to go to deep-sleep mode user has to agian call thi API.

Returns: returns 0 on success, or -ve value code on error

Note: To have better throughput the sleep mode should be disabled. To have better power number sleep mode should be enabled. Example
// Enables the sleep mode for 10 seconds
m2mb_pwr_mgmt_cfg_sleep(1, 10000);
// Disables the sleep mode
m2mb_pwr_mgmt_cfg_sleep(0, 0);

◆ m2mb_pwr_mgmt_cfg_sleep_cb()

INT32 m2mb_pwr_mgmt_cfg_sleep_cb	(	M2MB_SLEEP_CB_T	after,
		M2MB_SLEEP_CB_T	before
	)

m2mb_pwr_mgmt_cfg_sleep_cb configures callback for the sleep mode.

m2mb_pwr_mgmt_cfg_sleep_cb is used to set the callback to be called before entering sleep mode and after coming out of sleep mode.

Parameters

[in]	before	callback API to be called before entering sleep mode.
[in]	after	callback API to be called after coming out of sleep mode.
[in]	ctx	Context to be passed in the above two APIs.

Returns: returns 0 on success, or -ve value code on error

Note

Example

◆ m2mb_pwr_mgmt_standby()

INT32 m2mb_pwr_mgmt_standby ( UINT32 duration )

m2mb_pwr_mgmt_standby puts the system to standby mode.

m2mb_pwr_mgmt_standby puts the system in standby mode.

Parameters

[in] duration Duration in msec.

Returns: Returns 0 on success, or -ve value code on error

Note: Once the system goes to power save mode, the state of the system is lost and once it comes out of the standby after the given duration, the system executes from the app_start again. Example
m2mb_pwr_mgmt_standby(10000); //Goes to standby for 10sec
//Code doesn't get executed if the standby processing successful
