Navigation:  Job Editor Menu > Edit > Copy to layers

Copy selected objects to other layers.



Online Movie: Using Copy to Layers



Note: This function requires that you select objects before proceeding. When no objects are selected this command becomes de-activated in the menu.





Command Sequence



1. Select Objects.



Note: For more information about object selection see Viewing & Selection Basics



Note: To select polygons or traces, pick the edges.

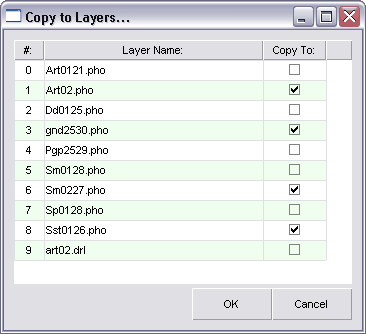

2. Select menu: Edit  | Copy to Layers.  The Copy to Layer dialog box will appear.



3. Check the layers that you want to copy objects to (see below). Press OK button to begin copy.



4. If the command is incorrect, you may Undo.
