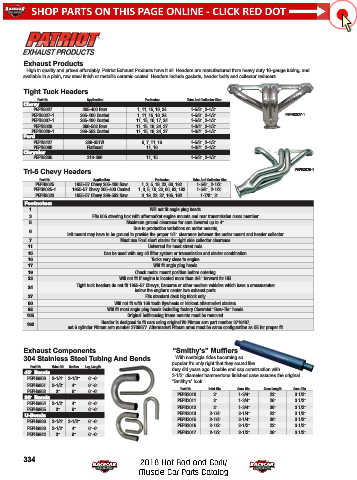

Page 335 - 2018 Racecar Engineering Hot Rod and Early Muscle Car Parts and Accessories Catalog

Exhaust Products
+LJK LQ TXDOLW\ DQG SULFHG DIIRUGDEO\ 3DWULRW ([KDXVW 3URGXFWV KDYH LW DOO +HDGHUV DUH PDQXIDFWXUHG IURP KHDY\ GXW\ JDXJH WXELQJ DQG
DYDLODEOH LQ D SODLQ UDZ VWHHO ¿QLVK RU PHWDOOLF FHUDPLF FRDWHG +HDGHUV LQFOXGH JDVNHWV KHDGHU EROWV DQG FROOHFWRU UHGXFHUV
Tight Tuck Headers
Part No. Application Footnotes Tube And Collector Size
Chevy
PEPH8027 265-400 Raw 1, 11, 15, 16, 24 1-5/8", 2-1/2"
PEPH8027-1 265-400 Coated 1, 11, 15, 16, 24 1-5/8", 2-1/2" PEPH8027-1
PEPH8037-1 265-400 Coated 11, 15, 16, 17, 24 1-5/8", 2-1/2"
PEPH8029 396-502 Raw 11, 15, 16, 24, 37 1-3/4", 2-1/2"
PEPH8029-1 396-502 Coated 11, 15, 16, 24, 37 1-3/4", 2-1/2"
Ford
PEPH8427 289-351W 6, 7, 11, 16 1-5/8", 2-1/2"
PEPH8090 Flathead 11, 16 1-3/4", 2-1/2"
Chrysler
PEPH8205 318-360 11, 15 1-5/8", 2-1/2"
Tri-5 Chevy Headers PEPH8025-1
Part No. Application Footnotes Tube And Collector Size
PEPH8025 1955-57 Chevy 265-400 Raw 1, 3, 5, 19, 23, 60, 192 1-5/8", 2-1/2"
PEPH8025-1 1955-57 Chevy 265-400 Coated 1, 3, 5, 19, 23, 60, 92, 192 1-5/8", 2-1/2"
PEPH8023 1955-57 Chevy 396-502 Raw 3, 19, 23, 37, 105, 192 1-7/8", 3"
Footnotes:
1 Will not fit angle plug heads.
3 Fits 605 steering box with aftermarket engine mounts and rear transmission cross member.
5 Maximum ground clearance for cars lowered up to 4".
Due to production variations on motor mounts,
6
left mount may have to be ground to provide the proper 1/4" clearance between the motor mount and header collector.
7 Must use Ford short starter for right side collector clearance.
11 Universal for most street rods.
15 Can be used with any oil filter system or transmission and starter combination.
16 Tucks very close to engine.
17 Will fit angle plug heads.
19 Check motor mount position before ordering.
23 Will not fit if engine is located more than 3/4" forward for HEI.
Tight tuck headers do not fit 1955-57 Chevys, Camaros or other modern vehicles which have a crossmember
24
below the engine’s center two exhaust ports.
37 Fits standard deck big block only.
60 Will not fit with 168 tooth flywheels or kickout aftermarket starters.
92 Will fit most angle plug heads including factory Chevrolet “Bow-Tie” heads.
105 Original bellhousing frame mounts must be removed.
Header is designed to fit cars using original V8 Pitman arm part number 3719487,
192
not 6 cylinder Pitman arm number 3709877. Aftermarket Pitman arms must be same configuration as OE for proper fit.

Exhaust Components ³6PLWK\ V´ 0XIÀHUV
304 Stainless Steel Tubing And Bends :LWK QRVWDOJLD ULGHV EHFRPLQJ VR
SRSXODU LW V RQO\ ULJKW WKDW WKH\ VRXQG OLNH
Part No. Tube OD Radius Leg Length
45° Bends WKH\ GLG \HDUV DJR 'RXEOH HQG FDS FRQVWUXFWLRQ ZLWK
GLDPHWHU KDPPHUWRQH ¿QLVKHG FDVH DVVXUHV WKH RULJLQDO
PEPH6950 2-1/4" 3-1/2" 6"-6"
³6PLWK\ V´ ORRN
PEPH6951 2-1/2" 4" 6"-6"
Part No. Inlet Dia. Core Dia. Case Length Case Dia.
PEPH6952 3" 6" 6"-6"
90° Bends PEPH3010 2" 1-3/4" 22" 3 1/2"
PEPH3011 2" 1-3/4" 26" 3 1/2"
PEPH6954 2-1/2" 4" 6"-6"
PEPH6955 3" 6" 6"-6" PEPH3012 2" 1-3/4" 30" 3 1/2"
U-Bends PEPH3013 2-1/4" 2-1/4" 22" 3 1/2"
PEPH6936 2-1/4" 3-1/2" 6"-6" PEPH3015 2-1/4" 2-1/4" 30" 3 1/2"
PEPH3016 2-1/2" 2-1/2" 22" 3 1/2"
PEPH6938 2-1/2" 4" 6"-6"
PEPH6942 3" 6" 6"-6" PEPH3017 2-1/2" 2-1/2" 26" 3 1/2"
